Part Number # AF26-30-22-11
SKU # 2437712
AF26-30-22-11
ABB AF26-30-22-11
Part Number # AF26-30-22-11
SKU # 2437712
ABB AF26-30-22-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF26-30-22-11 |
| SKU #: | 2437712 |
| Coil Power Rating: | 11 kW, 15 hp, 20 hp |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC, 24 to 60 VAC, 20 to 60 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 86 mm H x 45 mm W x 119.5 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | AC/DC Operated |
| Connection type: | Cable Clamp |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523111110 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF26-30-22-11
Brand: ABB
Part Number: AF26-30-22-11
Additional Description: ABB -AF26-30-22-11 CTR,3P,25.3A,20-60VDC/24-60VAC,2/2
Catalog Description: AF26 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 2-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles with a non-removable front-mounted 2 N.O. + 2 N.C. auxiliary contact block, side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically Linked" symbol on the c
AF26-30-22-11 Application
For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDCAF26-30-22-11 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- 11 kW at 3-phase 400 V IEC, 15 hp at 440 to 480 VAC, 20 hp at 550 to 600 VAC
- 25.3 A at 200 to 208 VAC 3-phase UL/CSA
- Can manage large control voltage variations
AF26-30-22-11 Standards
IEC 60947-4-1|UL 508|CSA 22.2 60947-4-1SKU #2437712Part Number #AF26-30-22-11UNSPSC39121529UPC03471523111110

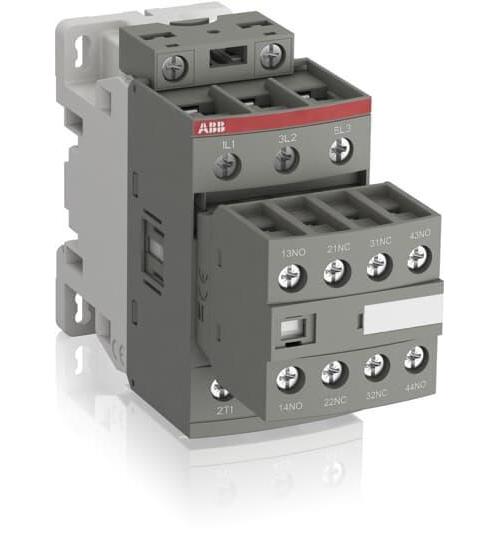

Image provided may only be a representation of final product and may include optional equipment
