Part Number # PSR073DL0630X
SKU # 2437969
PSR073DL0630X
Littelfuse PSR073DL0630X
Part Number # PSR073DL0630X
SKU # 2437969
Littelfuse PSR073DL0630X Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | PSR073DL0630X |
| SKU #: | 2437969 |
| Interrupt Rating: | 100/150 kA |
| Series: | PSR Series |
| Terminal Type: | DIN 110 mm Fixing Blade |
| Type: | High Speed Very Fast Acting |
| Mounting type: | DIN 43653 |
| UNSPSC: | 39121628 |
| UPC: | 00007945825193 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Littelfuse PSR073DL0630X
Brand: Littelfuse
Part Number: PSR073DL0630X
Additional Description: LTFS-PSR073DL0630X
Catalog Description: Littelfuse PSR series high-speed square body fuses are specially designed for protection of power semiconductor devices such as diodes, triacs, IGBTs, SCRs, MOSFETs, and other solid-state devices that are typically designed into power conversion and power conditioning equipment. Variable frequency drives, inverters, UPS, rectifiers, and soft-starters are examples of typical equipment designed with sensitive power semiconductor devices that cannot withstand any line surge or overcurrent conditions and require high-speed protection. Littelfuse POWR-SPEED® PSR series products offer optimized circuit protection at the extremely fast speed required to protect modern day power conversion devices. Available in DIN43653 blade style termination with visual blown fuse indication standard on all fuses and optional micro-switch for external indication.
PSR073DL0630X Application
For power conversion devices (UPS, inverter, rectifiers, drives), DC systems (dc common bus, dc injection braking), battery protection application (energy storage systems), electric vehicle charging stations, heaters and power suppliesPSR073DL0630X Item Features
- Best in class DC performance
- Extremely current limiting
- Superior cycling capability
- Visual and microswitch fuse blown indication
- Low watt loss design
- Class aR performance according to IEC 60269-4
- 100 kA at 1250 VAC IEC, 1300 VAC UL, 150 kA at 1000 VDC interrupt rating
- https://players.brightcove.net/1799386164001/default_default/index.html?videoId=4814378601001
PSR073DL0630X Standards
CCC Certified|CE Certified|cULus File No. E71611 Recognized|IEC 60269-4|REACH Compliant|UL 248-13 File No. E71611 Recognized|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.SKU #2437969Part Number #PSR073DL0630XUNSPSC39121628UPC00007945825193

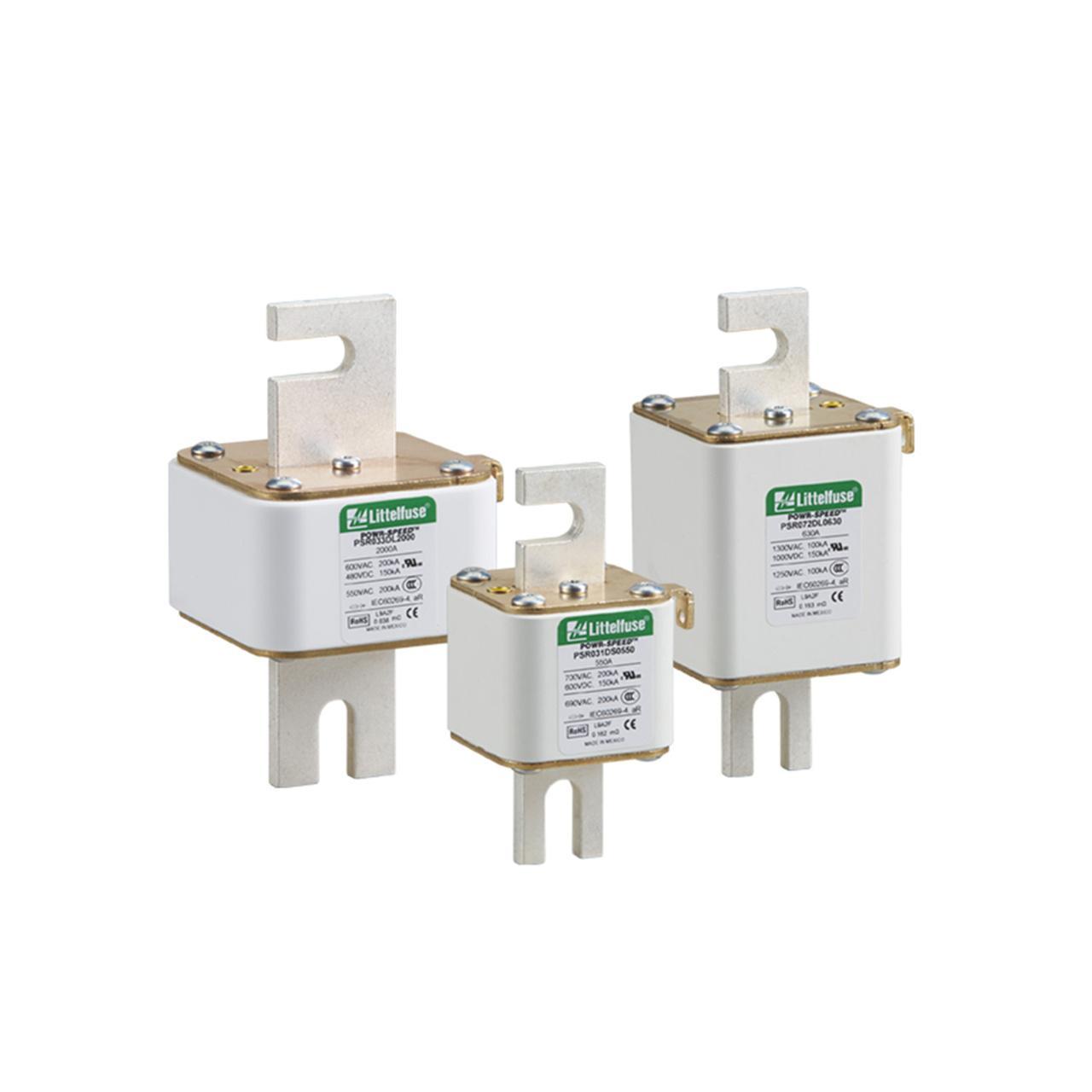

Image provided may only be a representation of final product and may include optional equipment
