2765370000
Weidmuller 2765370000
Part Number # 2765370000
SKU # 2438324
$313.00 / 20Each
Typical price:$335.80 / Each
Weidmuller 2765370000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2765370000 |
| SKU #: | 2438324 |
| Amperage Rating: | 16 A |
| Contact Form: | 1CO 1 Form C |
| Contact Rating: | 10 mA @ 12 V, 480 W @ 24 V |
| Dimensions: | 28 mm H x 21.5 mm W x 36 mm D |
| Display Type: | Red LED |
| Enclosure Type: | IP20 |
| Frequency Rating: | 0.1 Hz |
| Number of Pins: | 24 VAC |
| Series: | D-SERIES DRL |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Type: | Without Test Button |
| Country of origin: | CN |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | MISC |
| UPC: | 04064675076827 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$313.00 / 20Each
Typical price:$335.80 / Each
Quantity:
- Weidmueller, 2765370000, Relay, Without Test Button, Series: D-SERIES DRL, 16 A, 1.2 VA Power, 0.1 Hz Frequency, 1CO 1 Form C Contact Form, 10 mA @ 12 V, 480 W @ 24 V Contact, 24 VAC Pins, Red LED Display, IP20 Enclosure, -25 to 55 deg C, 28 mm H x 21.5 mm W x 36 mm D Dimensions
2765370000 Item Features
- 1 CO contact
- Optional AC or DC coils
- With integrated status LED
2765370000 Standards
RoHS Compliant|CE Certified|cURus Listed|EAC CertifiedSKU #2438324Part Number #2765370000UNSPSCMISCUPC04064675076827

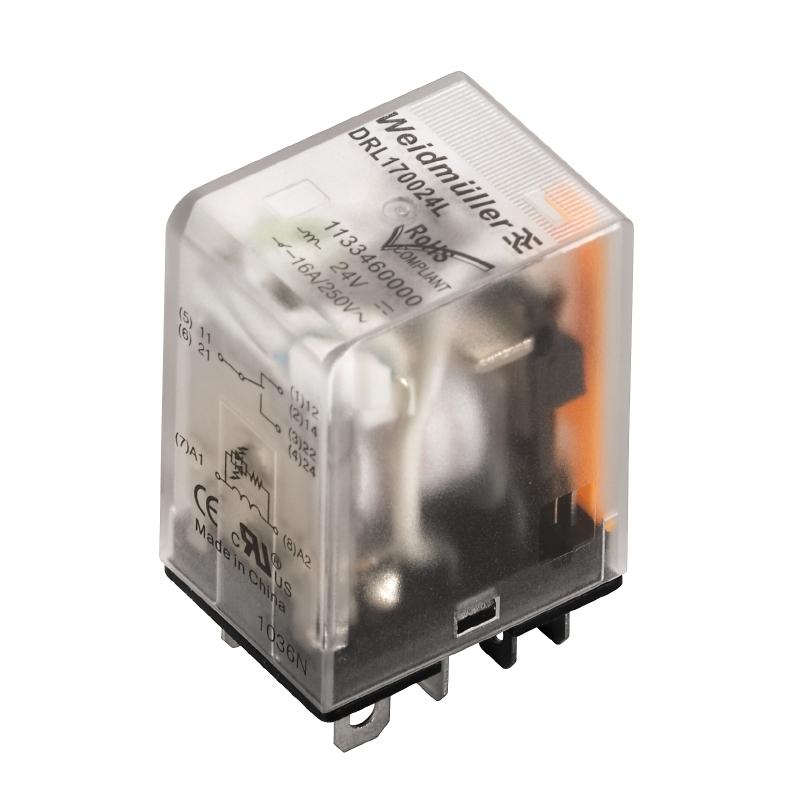

Image provided may only be a representation of final product and may include optional equipment
