HBLDS100TAC
Hubbell HBLDS100TAC
Part Number # HBLDS100TAC
SKU # 2438772
Hubbell HBLDS100TAC Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS100TAC |
| SKU #: | 2438772 |
| Mounting type: | External Fully Adjustable Feet |
| UNSPSC: | 39122205 |
| UPC: | 00783585763774 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBLDS100TAC
Brand: Hubbell
Part Number: HBLDS100TAC
Hubbell Wiring Device-Kellems, HBLDS100TAC, Disconnect Switches, 600 V AC, 100 A, 50 hp, 3 Pole, NEMA 4X/12 Enclosure, External Fully Adjustable Feet Mounting, Screw Terminal, -40 to 75 deg C, Valox, Gray
Additional Description: HUBW-HBLDS100TAC NM TF SLOPED DISC, 100A UN-F, 4X, HBLAC1
Catalog Description: Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 100A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure for Top Feed Applications, AC1 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A
HBLDS100TAC Application
For Heavy Duty Industrial and/or WashdownHBLDS100TAC Item Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Product rating are permanently laser-marked and will not wash off
- Highly visible red handle can be locked in the OFF position
- Factory installed HBLAC1 auxiliary contact is "Break After Main Break", 1 set of N/O contacts, 1 set of N/C contacts
- https://youtu.be/lpoYQ-n5EkQ?si=7pgiveXXoes2RF2M
HBLDS100TAC Standards
NEMA Type 4X|UL 508/UL 60947-4-1A|CE|OSHA|cULus Listed|NSF|IP69kSKU #2438772Part Number #HBLDS100TACUNSPSC39122205UPC00783585763774

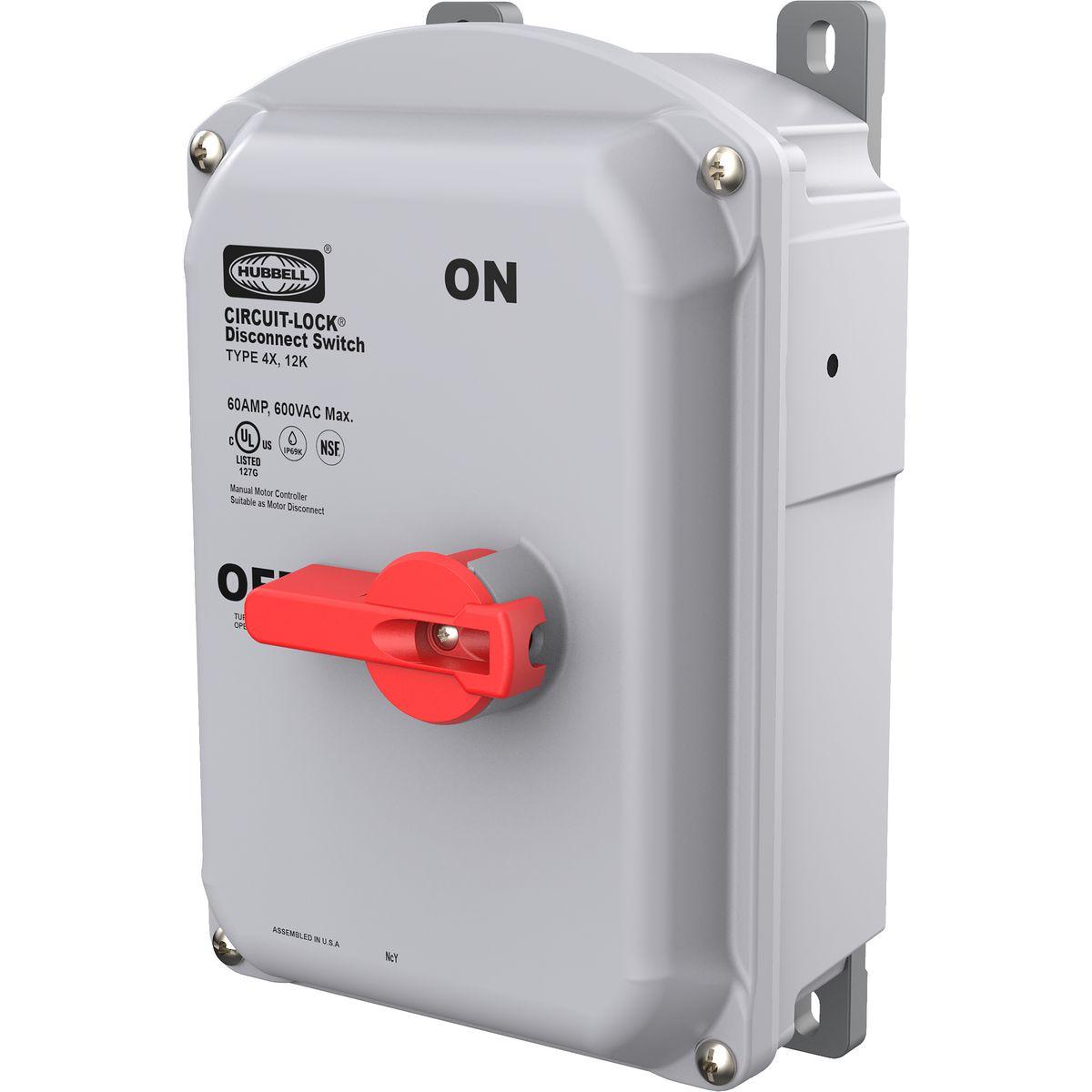

Image provided may only be a representation of final product and may include optional equipment
