HBLDS100TVFD
Hubbell HBLDS100TVFD
Part Number # HBLDS100TVFD
SKU # 2438777
Hubbell HBLDS100TVFD Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS100TVFD |
| SKU #: | 2438777 |
| Mounting type: | External Fully Adjustable Feet |
| UNSPSC: | 39122205 |
| UPC: | 00783585763798 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBLDS100TVFD
Brand: Hubbell
Part Number: HBLDS100TVFD
Hubbell Wiring Device-Kellems, HBLDS100TVFD, Disconnect Switches, 600 V AC, 100 A, 50 hp, 3 Pole, NEMA 4X/12 Enclosure, External Fully Adjustable Feet Mounting, Screw Terminal, -40 to 75 deg C, Valox, Gray
Additional Description: HUBW-HBLDS100TVFD NM TF SLOPED DISC, 100A UN-F, 4X,VFD AUX
Catalog Description: Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 100A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12, Non-Metallic Sloped Top Enclosure for Top Feed Applications, HBLAC2 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A
HBLDS100TVFD Application
For Heavy Duty Industrial and/or WashdownHBLDS100TVFD Item Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Product rating are permanently laser-marked and will not wash off
- Highly visible red handle can be locked in the OFF position
- Factory installed HBLAC2 auxiliary contact is "Break Before Main Break", 1 set of N/O contacts for VFD applications
- https://youtu.be/lpoYQ-n5EkQ?si=7pgiveXXoes2RF2M
HBLDS100TVFD Standards
NEMA Type 4X|UL 508/UL 60947-4-1A|CE|OSHA|cULus Listed|NSF|IP69kSKU #2438777Part Number #HBLDS100TVFDUNSPSC39122205UPC00783585763798

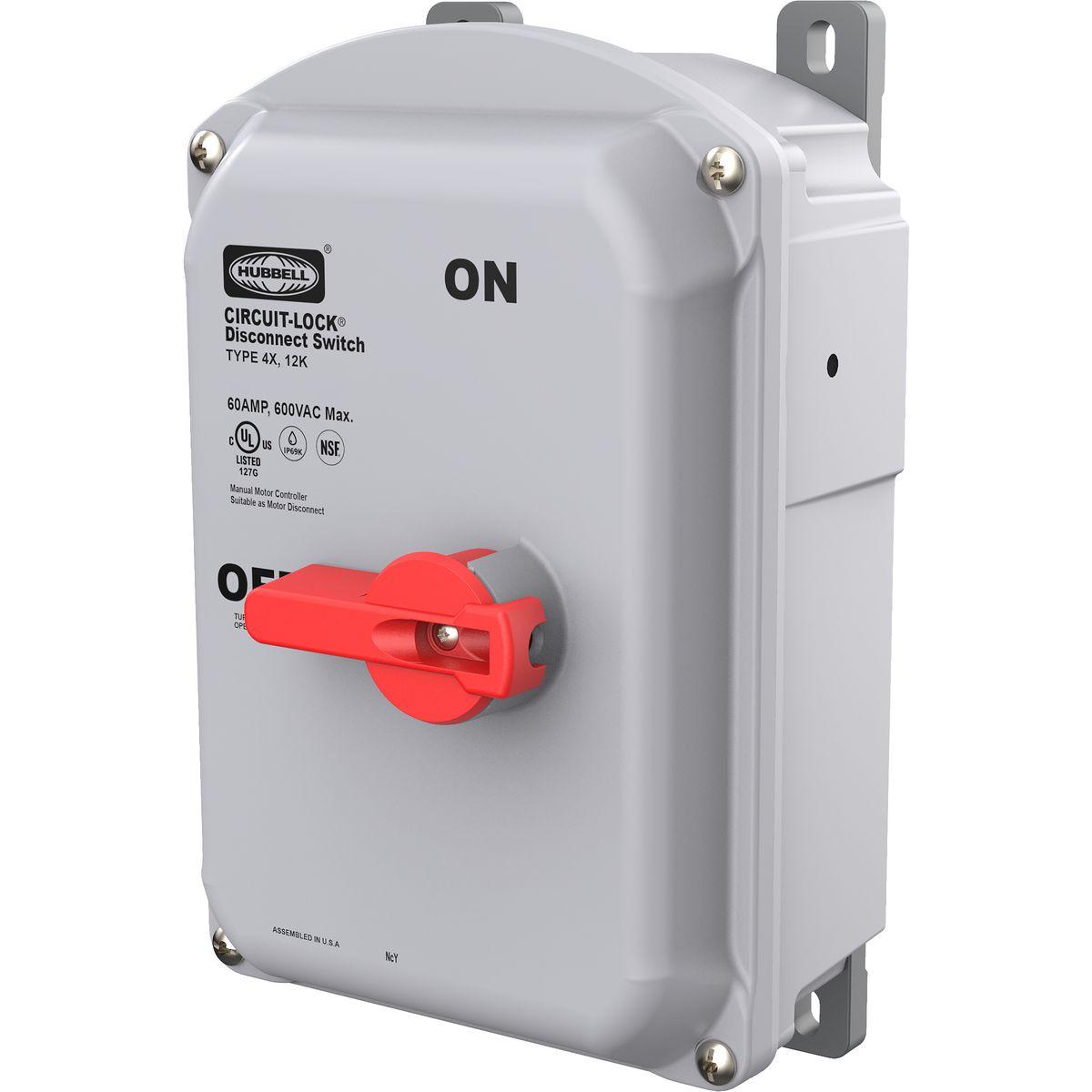

Image provided may only be a representation of final product and may include optional equipment
