Part Number # HBLDS30TAC
SKU # 2438779
Image Disclaimers Message
Brand: Hubbell
HBLDS30TAC
Hubbell HBLDS30TAC
Part Number # HBLDS30TAC
SKU # 2438779
$314.29 / Each
Typical price:$597.00 / Each
Hubbell HBLDS30TAC Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS30TAC |
| SKU #: | 2438779 |
| Amperage Rating: | 30 A |
| Enclosure Type: | NEMA 4X/12 |
| Horsepower: | 15 hp |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Color: | Gray |
| Country of origin: | PL |
| Material: | Valox |
| Mounting type: | External Fully Adjustable Feet |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122205 |
| UPC: | 00783585763460 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$314.29 / Each
Typical price:$597.00 / Each
Quantity:

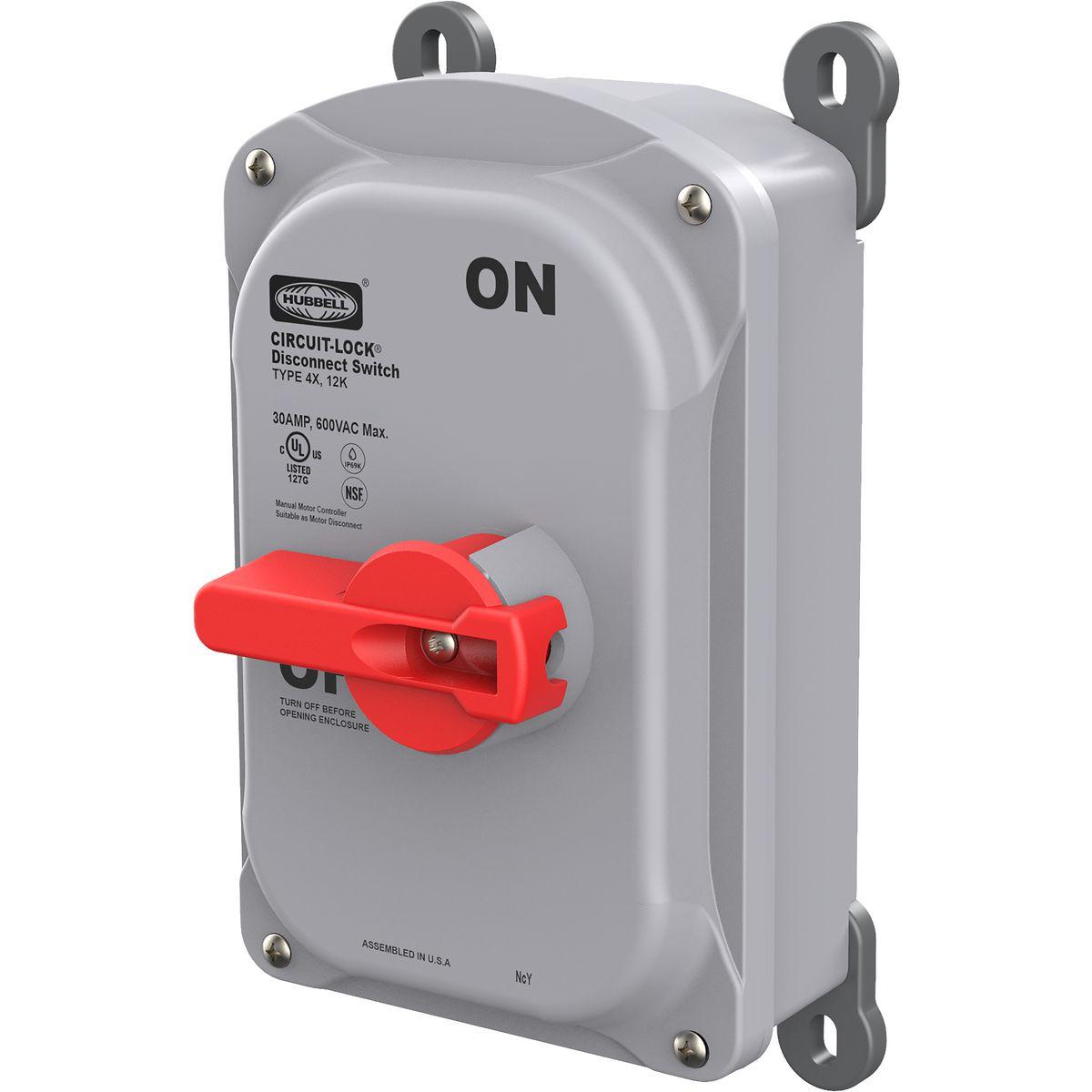

- Wiring Device-Kellems, HBLDS30TAC, Disconnect Switches, 600 V AC, 30 A, 15 hp, 3 Pole, NEMA 4X/12 Enclosure, External Fully Adjustable Feet Mounting, Screw Terminal, -40 to 75 deg C, Valox, Gray
HBLDS30TAC Application
For Heavy Duty Industrial and/or WashdownHBLDS30TAC Item Features
- Product rating are permanently laser-marked and will not wash off
- Factory installed HBLAC1 auxiliary contact is Break After Main Break, 1 set of N/O contacts, 1 set of N/C contacts
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBLDS30TAC Standards
NSF|IP69k|NEMA Type 4X|UL 508/UL 60947-4-1A|CE|cULusSKU #2438779Part Number #HBLDS30TACUNSPSC39122205UPC00783585763460
