Part Number # HBLDS30TP
SKU # 2438787
HBLDS30TP
Hubbell HBLDS30TP
Part Number # HBLDS30TP
SKU # 2438787
$372.86 / Each
Typical price:$708.00 / Each
Hubbell HBLDS30TP Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS30TP |
| SKU #: | 2438787 |
| Amperage Rating: | 30 A |
| Enclosure Type: | NEMA 4X/12 |
| Horsepower: | 15 hp |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Country of origin: | PL |
| Material: | Valox |
| Mounting type: | External Fully Adjustable Feet |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122205 |
| UPC: | 00783585763453 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$372.86 / Each
Typical price:$708.00 / Each
Quantity:
Hubbell HBLDS30TP
Brand: Hubbell
Part Number: HBLDS30TP
Additional Description: HUBW-HBLDS30TP NM TF SLOPED DISC,30A UN-F,4X,LED LIGHTS

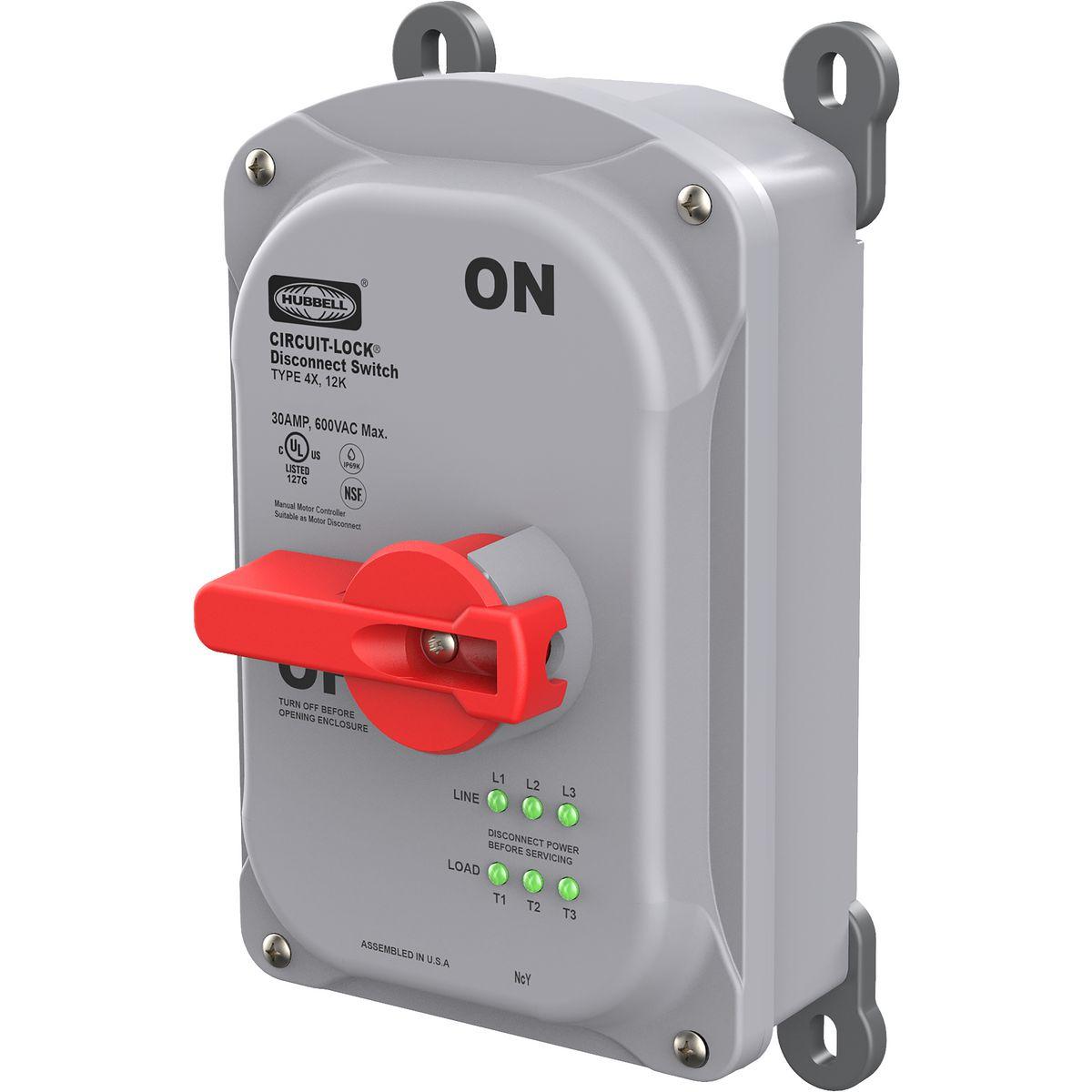

Catalog Description: Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X,12 Non-Metallic Sloped Top Enclosure for Top Feed Applications, inTOUCH Installation Free LED Phase Indication, cULus, NSF, CE, UL 508 / UL 60947-4-1A
HBLDS30TP Application
For Heavy Duty Industrial and/or WashdownHBLDS30TP Item Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Product rating are permanently laser-marked and will not wash off
- Six highly visible integral phase identification LEDs for use on 3 Phase Y or Delta systems provide secondary means of visual confirmation of make/break on all phases
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBLDS30TP Standards
NSF|IP69k|NEMA Type 4X|UL 508/UL 60947-4-1A|CE|cULusSKU #2438787Part Number #HBLDS30TPUNSPSC39122205UPC00783585763453
Image provided may only be a representation of final product and may include optional equipment
