HBLDS30TPVFD
Hubbell HBLDS30TPVFD
Part Number # HBLDS30TPVFD
SKU # 2438789
Hubbell HBLDS30TPVFD Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS30TPVFD |
| SKU #: | 2438789 |
| Dimensions: | 4.12 in H |
| Mounting type: | External Fully Adjustable Feet |
| UNSPSC: | 39122205 |
| UPC: | 00783585763514 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBLDS30TPVFD
Brand: Hubbell
Part Number: HBLDS30TPVFD

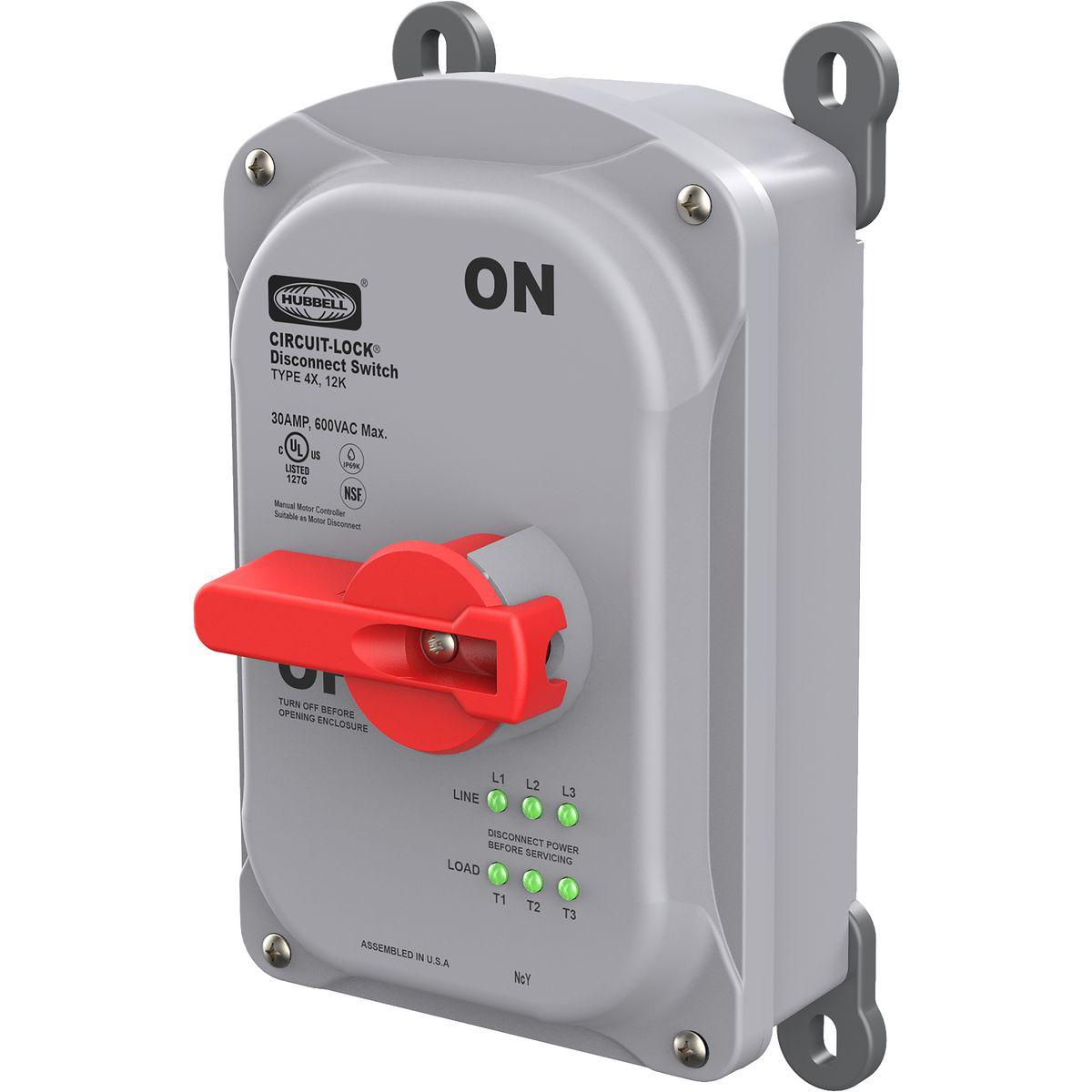

Wiring Device-Kellems, HBLDS30TPVFD, Disconnect Switch, Heavy Duty, 600 V AC, 30 A, 15 hp, 3 ph, 3 Pole, NEMA 4X/12/IP69K Enclosure, External Fully Adjustable Feet Mounting, Screw Terminal, -40 to 75 deg C, 4.12 in H Dimensions, Valox, Gray
Additional Description: HUBW-HBLDS30TPVFD NM TF SLOP DISC,30A UN-F,4X,VFD AUX,LED
Catalog Description: Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure for Top Feed Applications, AC2 Aux, inTOUCH Installation Free LED Phase Indication, cULus, NSF, CE, UL 508 / UL 60947-4-1A
HBLDS30TPVFD Application
For Heavy Duty Industrial and/or WashdownHBLDS30TPVFD Item Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Product rating are permanently laser-marked and will not wash off
- Highly visible red handle can be locked in the OFF position
- Six highly visible integral phase identification LEDs for use on 3 Phase Y or Delta systems provide secondary means of visual confirmation of make/break on all phases
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBLDS30TPVFD Standards
NSF|IP69k|NEMA Type 4X|UL 508/UL 60947-4-1A|CE|cULusSKU #2438789Part Number #HBLDS30TPVFDUNSPSC39122205UPC00783585763514
Image provided may only be a representation of final product and may include optional equipment
