Part Number # HBLDS30TVFDJ
SKU # 2438793
HBLDS30TVFDJ
Hubbell HBLDS30TVFDJ
Part Number # HBLDS30TVFDJ
SKU # 2438793
$488.57 / Each
Typical price:$927.00 / Each
Hubbell HBLDS30TVFDJ Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS30TVFDJ |
| SKU #: | 2438793 |
| Amperage Rating: | 30 A |
| Enclosure Type: | NEMA 4X/12 |
| Horsepower: | 15 hp |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Country of origin: | PL |
| Material: | Valox |
| Mounting type: | External Fully Adjustable Feet |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121521 |
| UPC: | 00783585763545 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$488.57 / Each
Typical price:$927.00 / Each
Quantity:
Hubbell HBLDS30TVFDJ
Brand: Hubbell
Part Number: HBLDS30TVFDJ
Additional Description: HUBW-HBLDS30TVFDJ NM TF SLOPED DISC,30A UN-F,4X, AC2 & JOG

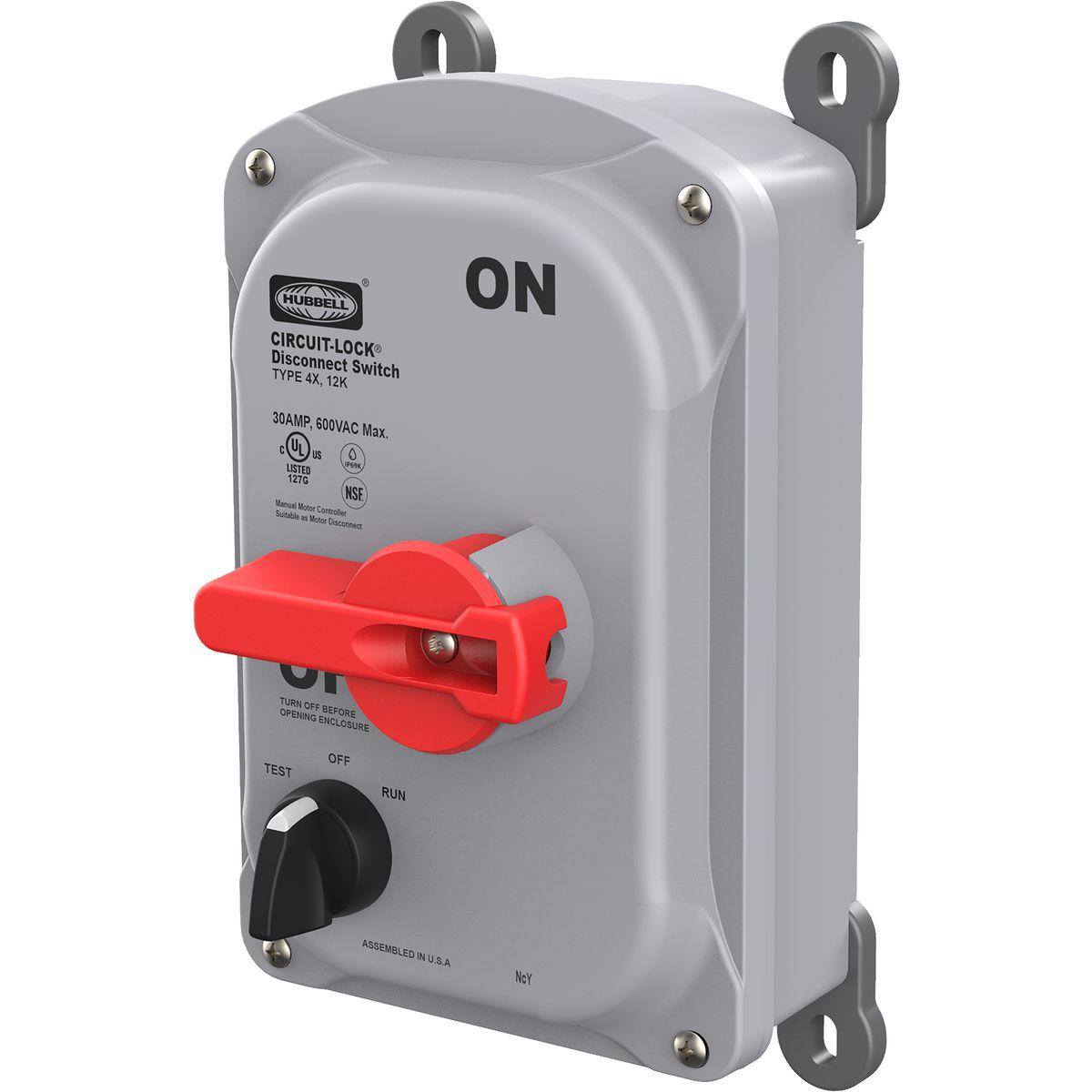

Catalog Description: Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure for Top Feed Applications, AC2 Aux Contact, Jog, cULus, NSF, CE, UL 508 / UL 60947-4-1A
HBLDS30TVFDJ Application
For Heavy Duty Industrial and/or WashdownHBLDS30TVFDJ Item Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Product rating are permanently laser-marked and will not wash off
- Factory installed HBLAC2 auxiliary contact is Break Before Main Break, 1 set of N/O contacts for VFD applications
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBLDS30TVFDJ Standards
NSF|IP69k|NEMA Type 4X|UL 508/UL 60947-4-1A|CE|cULusSKU #2438793Part Number #HBLDS30TVFDJUNSPSC39121521UPC00783585763545
Image provided may only be a representation of final product and may include optional equipment
