HBLDS60TVFD
Hubbell HBLDS60TVFD
Part Number # HBLDS60TVFD
SKU # 2438800
Hubbell HBLDS60TVFD Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS60TVFD |
| SKU #: | 2438800 |
| Mounting type: | External Fully Adjustable Feet |
| UNSPSC: | 39122205 |
| UPC: | 00783585763675 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBLDS60TVFD
Brand: Hubbell
Part Number: HBLDS60TVFD

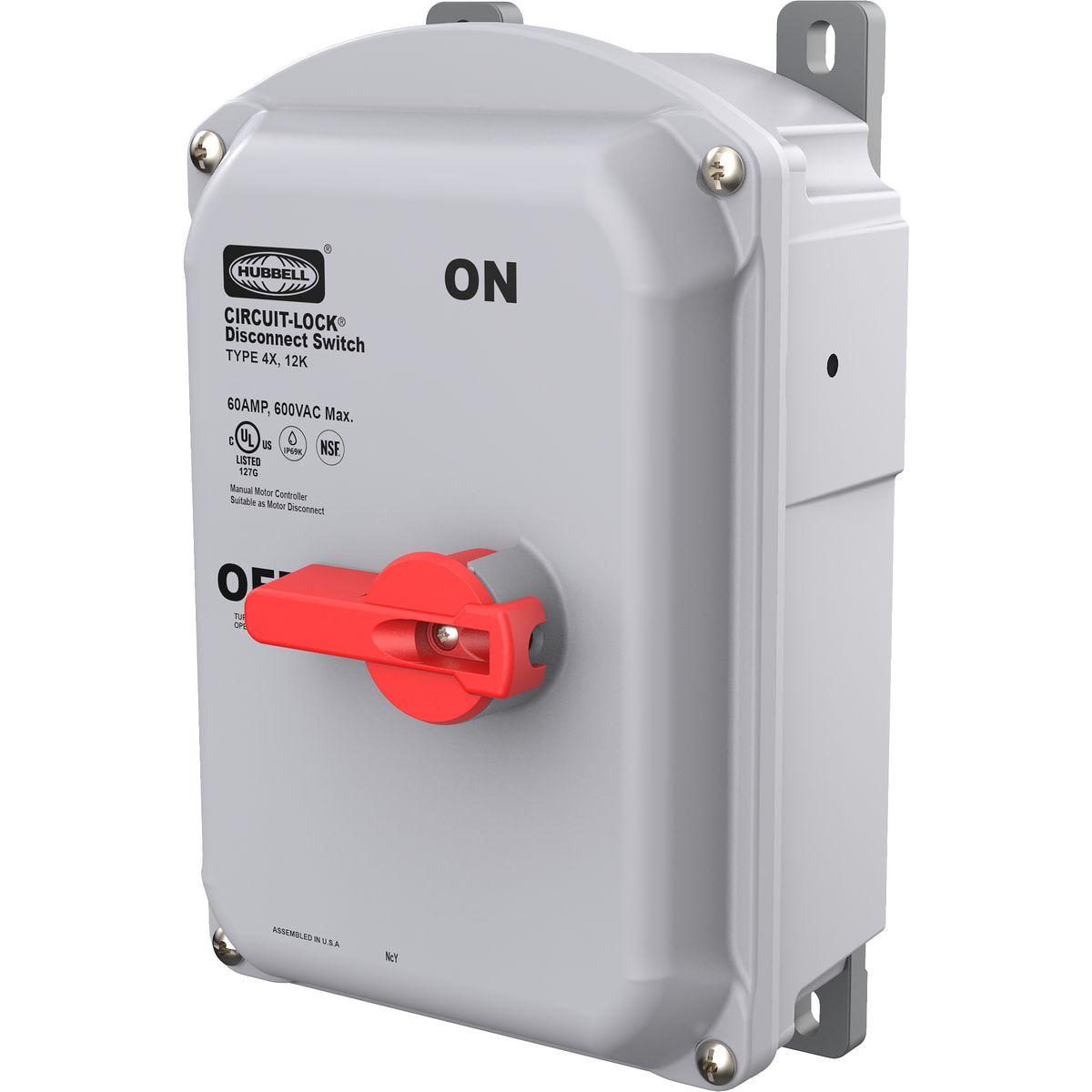

Hubbell Wiring Device-Kellems, HBLDS60TVFD, Disconnect Switches, 600 V AC, 60 A, 50 hp, 3 Pole, NEMA 4X/12 Enclosure, External Fully Adjustable Feet Mounting, Screw Terminal, -40 to 75 deg C, Valox, Gray
Additional Description: HUBW-HBLDS60TVFD NM TF SLOPED DISC, 60A UN-F, 4X,VFD AUX
Catalog Description: Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 60A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure for Top Feed Applications, HBLAC2 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A
HBLDS60TVFD Application
For Heavy Duty Industrial and/or WashdownHBLDS60TVFD Item Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Product rating are permanently laser-marked and will not wash off
- Highly visible red handle can be locked in the OFF position
- Factory installed HBLAC2 auxiliary contact is "Break Before Main Break", 1 set of N/O contacts for VFD applications
- https://youtu.be/lpoYQ-n5EkQ?si=7pgiveXXoes2RF2M
HBLDS60TVFD Standards
NEMA Type 4X|UL 508/UL 60947-4-1A|CE|OSHA|cULus Listed|NSF|IP69kSKU #2438800Part Number #HBLDS60TVFDUNSPSC39122205UPC00783585763675
