Part Number # HBLDS30PJ
SKU # 2438816
HBLDS30PJ
Hubbell HBLDS30PJ
Part Number # HBLDS30PJ
SKU # 2438816
$547.14 / Each
Typical price:$1038.00 / Each
Hubbell HBLDS30PJ Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS30PJ |
| SKU #: | 2438816 |
| Amperage Rating: | 30 A |
| Enclosure Type: | NEMA 4X/12 |
| Horsepower: | 15 hp |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Country of origin: | PL |
| Material: | Valox |
| Mounting type: | External Fully Adjustable Feet |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121521 |
| UPC: | 00783585763125 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$547.14 / Each
Typical price:$1038.00 / Each
Quantity:
Hubbell HBLDS30PJ
Brand: Hubbell
Part Number: HBLDS30PJ
Additional Description: HUBW-HBLDS30PJ NM SLOPED DISC,UNFUSED,30A, 4X, LED, JOG
Catalog Description: Industrial Grade, Motor Disconnect,Unfused,3 Pole, 30A 600V AC,Screw Terminals, IP69k,NEMA Type 4X,12 Non-Metallic Sloped Top Enclosure, inTOUCH Installation Free LED Phase Indication,Jog, cULus, NSF, CE, UL 508 / UL 60947-4-1A
HBLDS30PJ Application
For Heavy Duty Industrial and/or WashdownHBLDS30PJ Item Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
- Product rating are permanently laser-marked and will not wash off
- Six highly visible integral phase identification LEDs for use on 3 Phase Y or Delta systems provide secondary means of visual confirmation of make/break on all phases
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBLDS30PJ Standards
NSF|IP69k|NEMA Type 4X|UL 508/UL 60947-4-1A|CE|cULusSKU #2438816Part Number #HBLDS30PJUNSPSC39121521UPC00783585763125

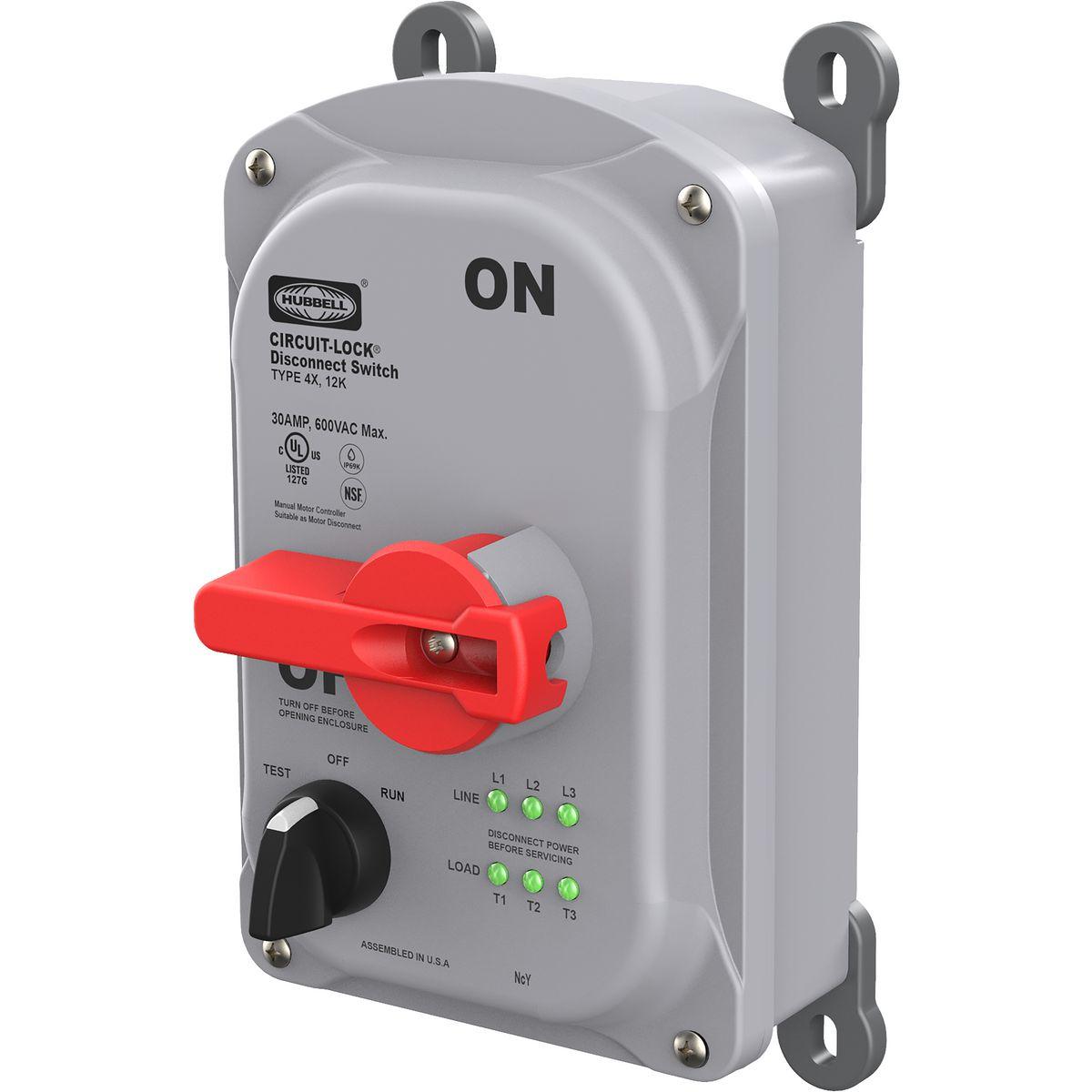

Image provided may only be a representation of final product and may include optional equipment
