HBLDS100AC
Hubbell HBLDS100AC
Part Number # HBLDS100AC
SKU # 2438838
Hubbell HBLDS100AC Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS100AC |
| SKU #: | 2438838 |
| Mounting type: | External Fully Adjustable Feet |
| UNSPSC: | 39122205 |
| UPC: | 00783585763347 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBLDS100AC
Brand: Hubbell
Part Number: HBLDS100AC
Hubbell Wiring Device-Kellems, HBLDS100AC, Disconnect Switches, 600 V AC, 100 A, 50 hp, 3 Pole, NEMA 4X/12 Enclosure, External Fully Adjustable Feet Mounting, Screw Terminal, -40 to 75 deg C, Valox, Gray
Additional Description: HUBW-HBLDS100AC NM SLOPED DISC, 100A UNFUSED, 4X, HBLAC1
Catalog Description: Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 100A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, AC1 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A
HBLDS100AC Application
For Heavy Duty Industrial and/or WashdownHBLDS100AC Item Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
- Product rating are permanently laser-marked and will not wash off
- Highly visible red handle can be locked in the OFF position
- Factory installed HBLAC1 auxiliary contact is "Break After Main Break", 1 set of N/O contacts, 1 set of N/C contacts
- https://youtu.be/lpoYQ-n5EkQ?si=7pgiveXXoes2RF2M
HBLDS100AC Standards
NEMA Type 4X|UL 508/UL 60947-4-1A|CE|OSHA|cULus Listed|NSF|IP69kSKU #2438838Part Number #HBLDS100ACUNSPSC39122205UPC00783585763347

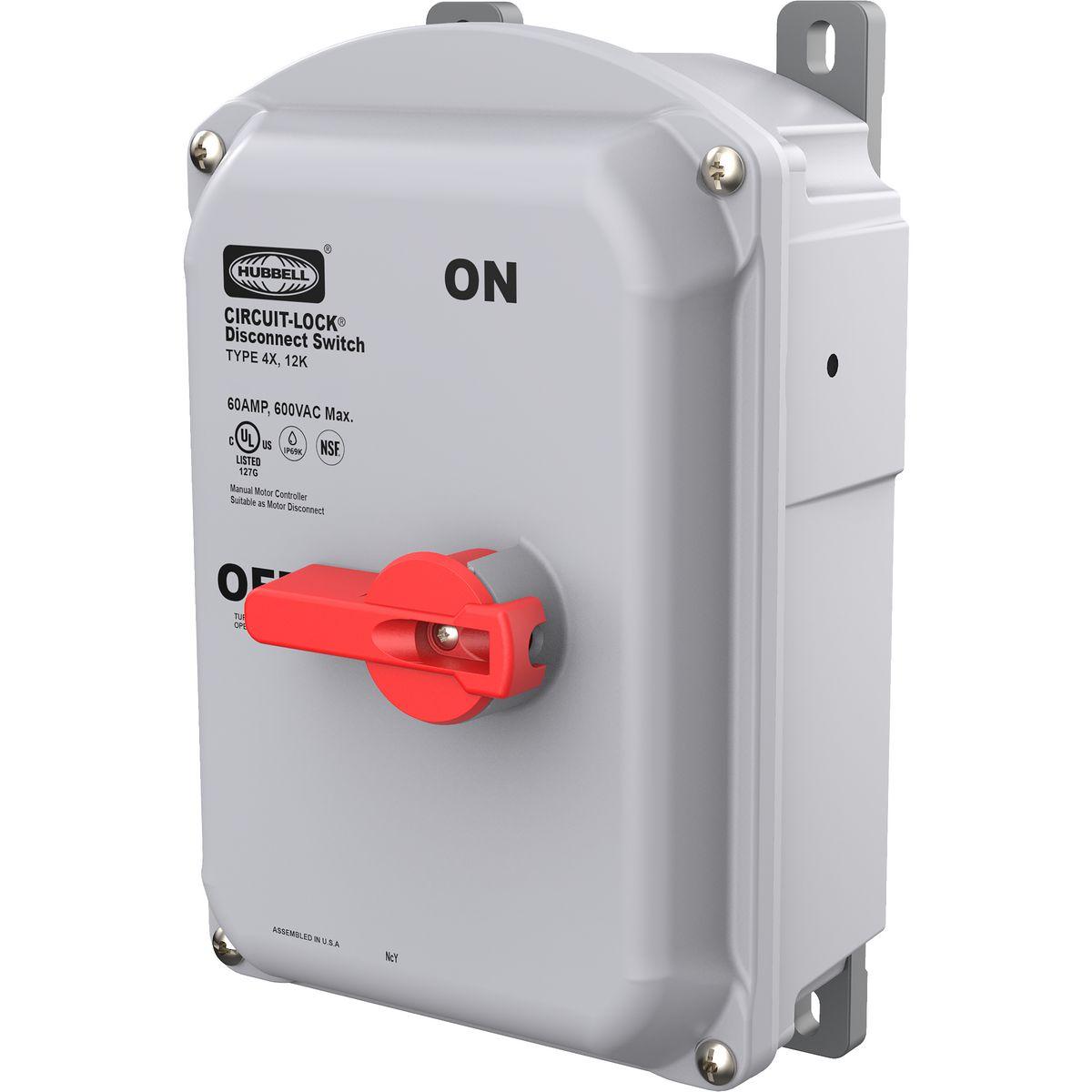

Image provided may only be a representation of final product and may include optional equipment
