HBLDS60TPJ
Hubbell HBLDS60TPJ
Part Number # HBLDS60TPJ
SKU # 2438853
Hubbell HBLDS60TPJ Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS60TPJ |
| SKU #: | 2438853 |
| Mounting type: | External Fully Adjustable Feet |
| UNSPSC: | 39122205 |
| UPC: | 00783585763712 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBLDS60TPJ
Brand: Hubbell
Part Number: HBLDS60TPJ

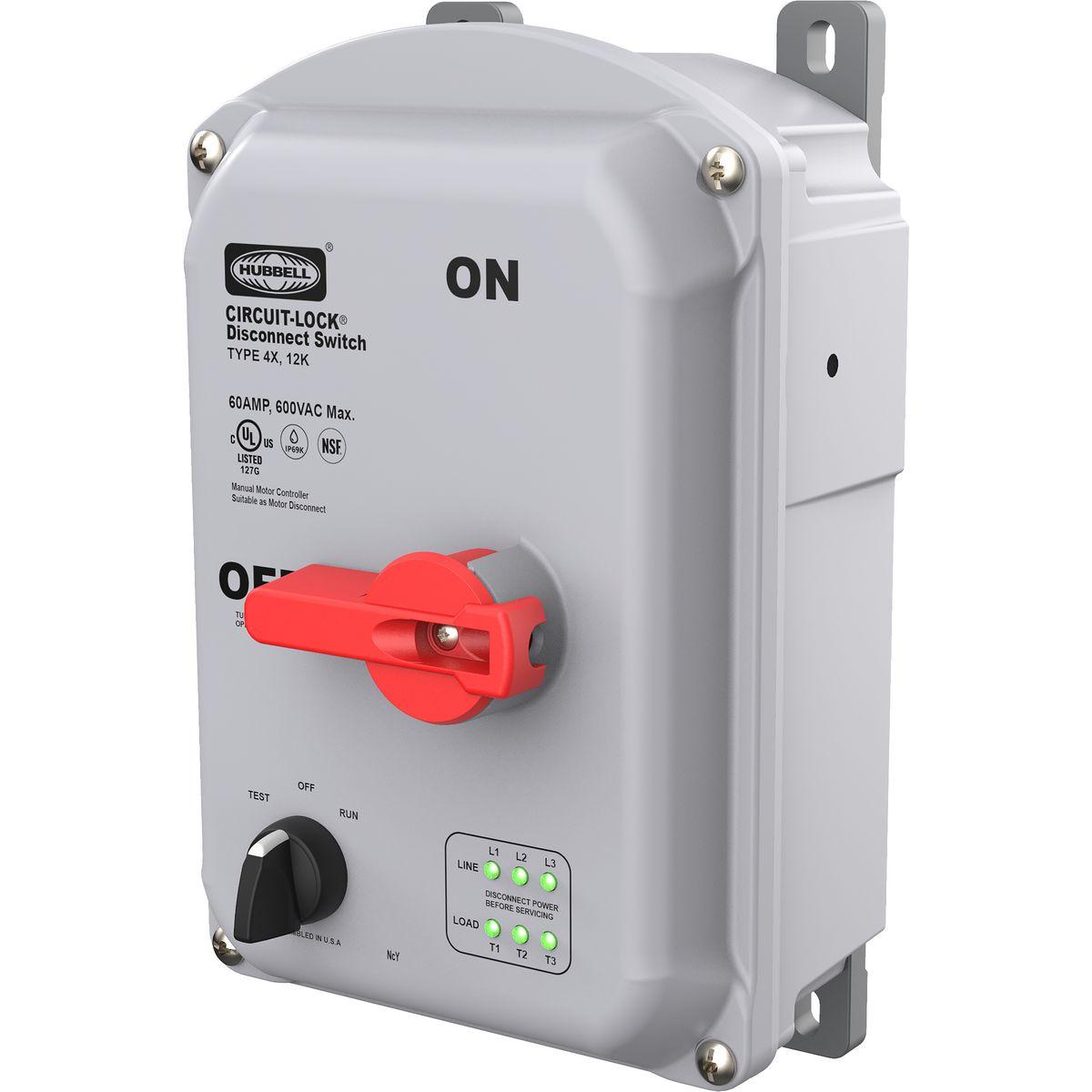

Hubbell Wiring Device-Kellems, HBLDS60TPJ, Disconnect Switches, 600 V AC, 60 A, 50 hp, 3 Pole, NEMA 4X/12 Enclosure, External Fully Adjustable Feet Mounting, Screw Terminal, -40 to 75 deg C, Valox, Gray
Additional Description: HUBW-HBLDS60TPJ NM TF SLOPED DISC,UN-F,60A, 4X, LED, JOG
Catalog Description: Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 60A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure for Top Feed Applications With inTOUCH Installation Free LED Phase Indication Jog, cULus, NSF, CE, UL 508 / UL 60947-4-1A
HBLDS60TPJ Application
For Heavy Duty Industrial and/or WashdownHBLDS60TPJ Item Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Product rating are permanently laser-marked and will not wash off
- Highly visible red handle can be locked in the OFF position
- Six highly visible integral phase identification LEDs for use on 3 Phase Y or Delta systems provide secondary means of visual confirmation of make/break on all phases
- https://youtu.be/lpoYQ-n5EkQ?si=7pgiveXXoes2RF2M
HBLDS60TPJ Standards
NEMA Type 4X|UL 508/UL 60947-4-1A|CE|OSHA|cULus Listed|NSF|IP69kSKU #2438853Part Number #HBLDS60TPJUNSPSC39122205UPC00783585763712
Image provided may only be a representation of final product and may include optional equipment
