Part Number # HBLDS100TJ
SKU # 2438857
HBLDS100TJ
Hubbell HBLDS100TJ
Part Number # HBLDS100TJ
SKU # 2438857
$751.43 / Each
Typical price:$1426.00 / Each
Hubbell HBLDS100TJ Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS100TJ |
| SKU #: | 2438857 |
| Amperage Rating: | 100 A |
| Enclosure Type: | NEMA 4X/12 |
| Horsepower: | 50 hp |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Country of origin: | PL |
| Material: | Valox |
| Mounting type: | External Fully Adjustable Feet |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122205 |
| UPC: | 00783585763811 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$751.43 / Each
Typical price:$1426.00 / Each
Quantity:
Hubbell HBLDS100TJ
Brand: Hubbell
Part Number: HBLDS100TJ
Additional Description: HUBW-HBLDS100TJ NM TF SLOPED DISC, UN-F, 100A,4X, W/ JOG

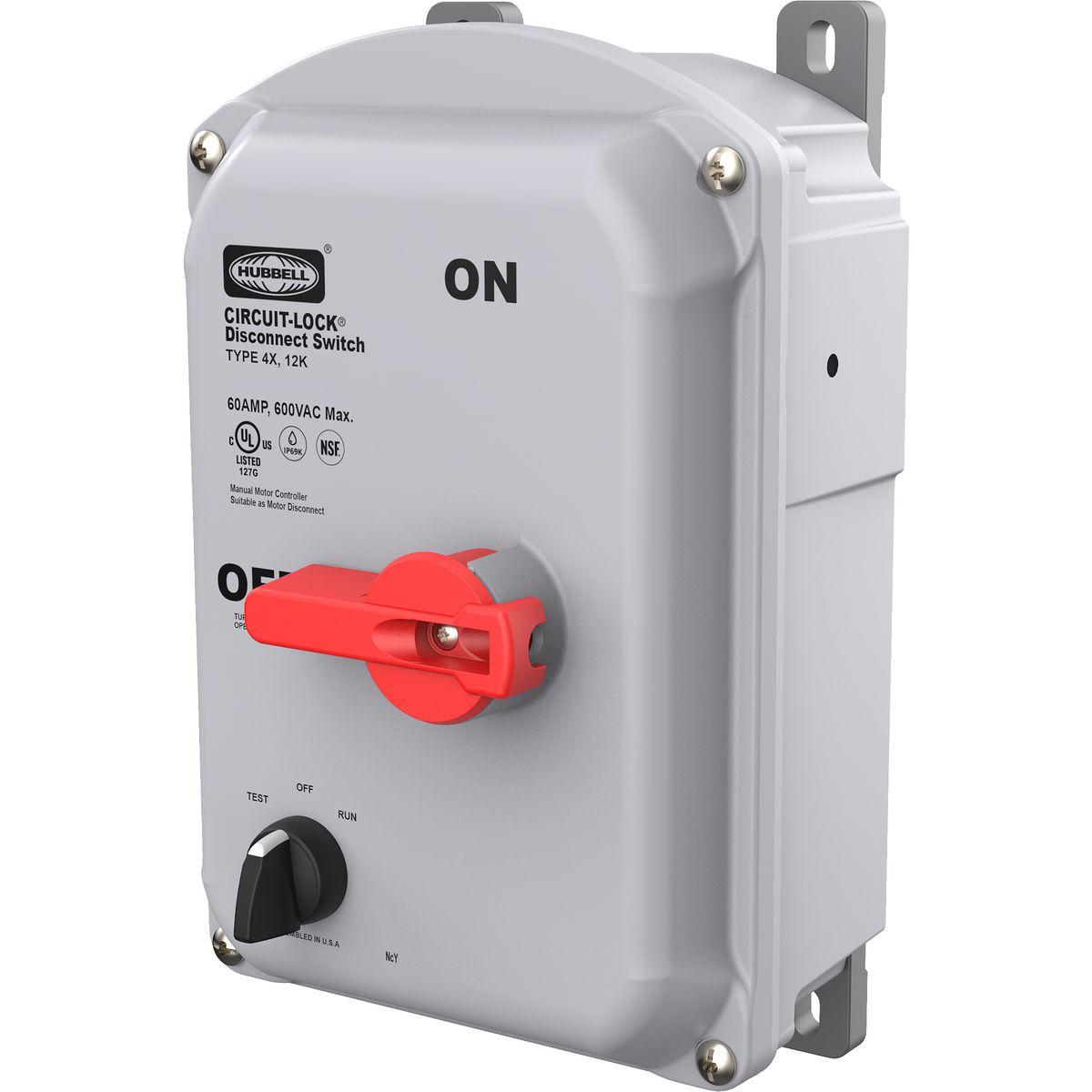

Catalog Description: Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 100A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure for Top Feed Applications With Jog, cULus, NSF, CE, UL 508 / UL 60947-4-1A
HBLDS100TJ Application
For Heavy Duty Industrial and/or WashdownHBLDS100TJ Item Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Product rating are permanently laser-marked and will not wash off
- Factory installed Hold, Off, Auto jog switch for increased safety and point of use communication to PLC
HBLDS100TJ Standards
NSF|IP69k|NEMA Type 4X|UL 508/UL 60947-4-1A|CE|cULusSKU #2438857Part Number #HBLDS100TJUNSPSC39122205UPC00783585763811
Image provided may only be a representation of final product and may include optional equipment
