Part Number # STXT480S20A
SKU # 2439171
Image Disclaimers Message
STXT480S20A

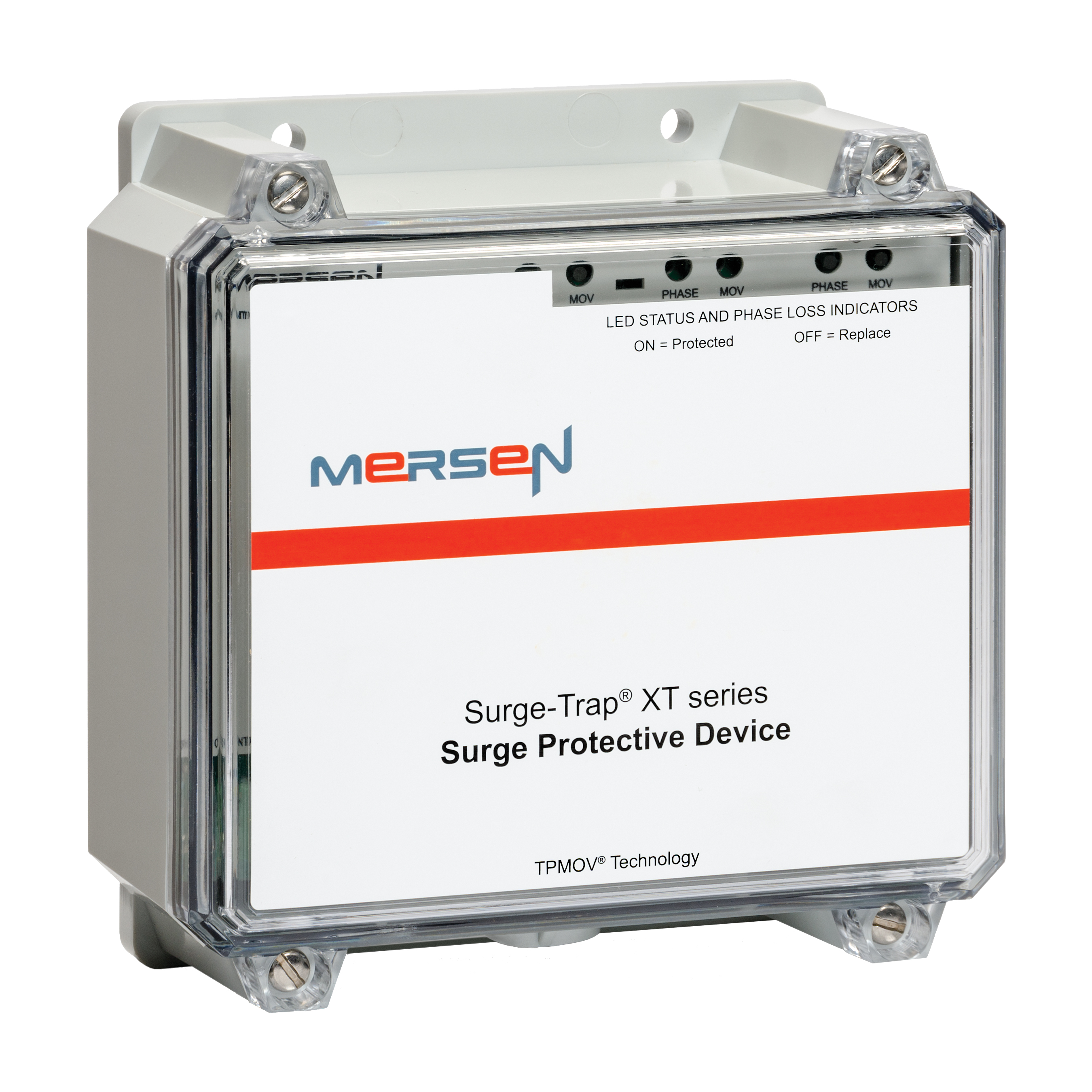

Mersen STXT480S20A
Part Number # STXT480S20A
SKU # 2439171
$1282.59 / Each
Typical price:$4728.15 / Each
Mersen STXT480S20A Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | STXT480S20A |
| SKU #: | 2439171 |
| Class: | Type 1 SPD |
| Dimensions: | 93.5 mm H x 179.8 mm W x 188 mm L |
| Electrical Ratings: | 480/240/640 V AC, 480/240/640 VAC |
| Enclosure Type: | NEMA 4X |
| Environmental Conditions: | -40 to 85 deg C Operating Temperature |
| Frequency Rating: | 50/60 Hz |
| Indicator Type: | LED/Remote Audible Alarm |
| Modes of Protection: | L-L |
| Series: | STXT |
| Short Circuit Current Rating (kA): | 200 kA |
| Type: | Split Phase |
| Material: | Polycarbonate |
| Mounting type: | Panel/Wall |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121610 |
| UPC: | 00782001504106 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1282.59 / Each
Typical price:$4728.15 / Each
Quantity:
- Mersen, STXT480S20A, Surge Protective Device, Split Phase, Series: STXT, 480/240/640 V AC Electrical Rating, 50/60 Hz Frequency, 200 kA Short Circuit, 20 kA Nominal Discharge, Modes of Protection: L-L, LED/Remote Audible Alarm Indicator, Class: Type 1 SPD, Environmental Conditions: -40 to 85 deg C Operating Temperature, NEMA 4X Enclosure, Panel/Wall Mounting, Polycarbonate, 93.5 mm H x 179.8 mm W x 188 mm L Dimensions
STXT480S20A Application
Service entrance at low to medium risk exposure level, Commercial and Industrial Distribution Panels or Control Branch Panels, Any critical application that requires a high to medium level of protectionSTXT480S20A Item Features
- Designed with industry leading Mersen TPMOV technology
- Standard features include LED phase loss indication and EMI/RFI filter Up to -50 dB from 10 kHz to 100 MHz
- Optional Form C Dry Contacts and audible alarm with silence button
- Mounting hub and mounting feet for installation flexibility
- Up to 10 Modes of Protection
STXT480S20A Standards
ANSI/UL 1449 5th Edition, Type 1 SPD, File E210793|CSA C22.2, Type 1 SPD|ANSI/IEEE C62.41.1, C62.41.2, C62.45|UL96A Lightning Protection|RoHS CompliantSKU #2439171Part Number #STXT480S20AUNSPSC39121610UPC00782001504106
