Part Number # 151-04075
SKU # 2440000
151-04075
Hellermann Tyton 151-04075
Part Number # 151-04075
SKU # 2440000
Hellermann Tyton 151-04075 Key Features
| Brand: | Hellermann Tyton |
|---|---|
| Part Number # : | 151-04075 |
| SKU #: | 2440000 |
| Dimensions: | 1.81 in H x 0.81 in W x 1.46 in L |
| Specifications: | 1000/Carton |
| Suitable For Use With: | 0.61 to 0.79 in Bundle |
| Temperature Rating (Degrees F): | -40 to 221 deg F |
| Material: | Polyamide 6.6 |
| Mounting type: | Fir Tree |
| Manufacturer Name: | HellermannTyton |
| UNSPSC: | 39121702 |
| UPC: | 00089306492597 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hellermann Tyton 151-04075
Brand: Hellermann Tyton
Part Number: 151-04075

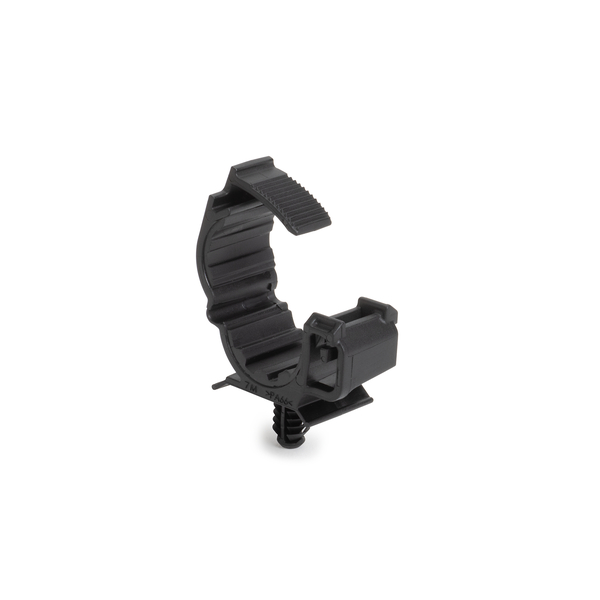

Additional Description: TYTO-151-04075 SOFT-GRIP RATCHET O-CLAMP, FIR TREE MOUNT, 0.61 - 0.79"" BUNDLE, 6.5 MM HOLE DIA, PA66HIRHSUV/TPE, BLACK, 1000/CTN Tree Mount, 0.61 - 0.79" Bundle, 6.5 mm Hole Dia, PA66HIRHSUV/TPE, Black, 1000/ctn
Catalog Description: Designed for fluid routing and high-voltage cable management, the soft-grip Ratchet O-Clamp comes with a TPE liner to protect routings and keep them in position. An integrated fir tree provides a secure grip into round mounting holes with no additional hardware. Developed for tight spaces, this clamp maintains a low profile while providing an adjustable grip for a range of bundle sizes.
151-04075 Application
For Indoor and Outdoor151-04075 Item Features
- Soft TPE over-mold prevents axial slide/rotation and protects sensitive HV cables
- Long 6.5 mm fir tree allows clip to be installed in panels up to 6 mm thick and hole sizes from 6.1-7.0 mm
- Fine-pitch ratchet provides controlled grip for a range of pipe sizes with one part
- Fully enclosed clamp prevents slip, crush and fallout under vacuum
- Release feature opens by inserting a screwdriver, allowing the clamp to be reused or serviced without removing it from mounting surface
151-04075 Standards
ROHS ComplaintSKU #2440000Part Number #151-04075UNSPSC39121702UPC00089306492597
