Hellermann Tyton 151-04351 Key Features
| Brand: | Hellermann Tyton |
|---|---|
| Part Number # : | 151-04351 |
| SKU #: | 2440007 |
| Dimensions: | 1.81 in H x 0.81 in W x 1.46 in L |
| Specifications: | 1000/Carton |
| Suitable For Use With: | 0.73 to 0.89 in Bundle Dia |
| Temperature Rating (Degrees F): | -40 to 221 deg F |
| Country of origin: | MX |
| Material: | Polyamide 6.6 |
| Mounting type: | Fir Tree |
| Manufacturer Name: | HellermannTyton |
| UNSPSC: | 39121702 |
| UPC: | 00089306498506 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hellermann Tyton 151-04351
Brand: Hellermann Tyton
Part Number: 151-04351
Additional Description: TYTO-151-04351 RATCHET O-CLAMP, FIR TREE MOUNT, 0.73 - 0.89"" BUNDLE DIA, 6.5 MM HOLE DIA, PA66HIRHSUV, BLACK, 1000/CTN 0.73 - 0.89" Bundle Dia, 6.5 mm Hole Dia, PA66HIRHSUV, Black, 1000/ctn

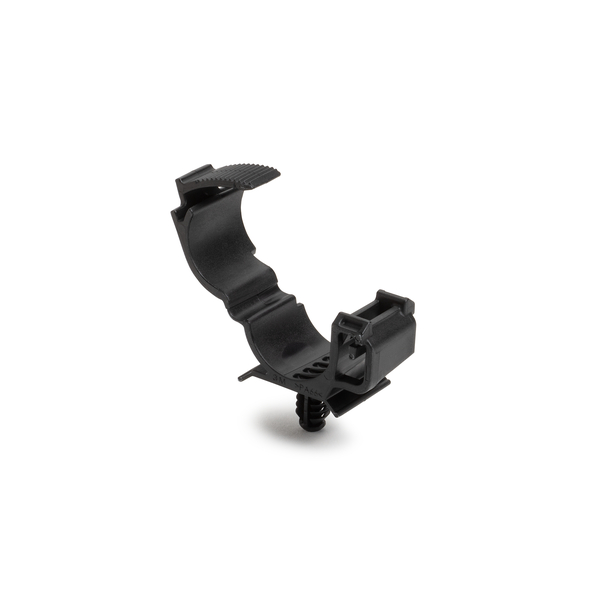

Catalog Description: The Ratchet O-Clamp is designed for tight spaces, maintaining a low profile while providing an adjustable closure for a range of bundle sizes. An integrated fir tree provides a secure grip into round mounting holes with no additional hardware.
151-04351 Application
For Indoor and Outdoor151-04351 Item Features
- Long 6.5 mm fir tree allows clip to be installed in panels up to 6 mm thick and for hole sizes from 6.1-7.0 mm
- Fine-pitch ratchet provides controlled grip for a range of pipe sizes with one part
- Fully enclosed clamp prevents slip, crush and fallout under vacuum
- Release feature opens by inserting a screwdriver, allowing the clamp to be reused or serviced without removing it from mounting surface
151-04351 Standards
ROHS ComplaintSKU #2440007Part Number #151-04351UNSPSC39121702UPC00089306498506
