Part Number # A335004
SKU # 2440847
Image Disclaimers Message
Belden A335004 Key Features
| Brand: | Belden |
|---|---|
| Part Number # : | A335004 |
| SKU #: | 2440847 |
| Conductor Size: | 350 kcmil |
| Conductor Type: | Annealed Bare Stranded Copper |
| Jacket Color: | Black |
| Jacket Material: | PVC |
| Number of Conductors: | 4 |
| Outside Diameter: | 2.19 in |
| Strands: | 61 |
| Temperature Rating (Degrees F): | 90 deg C |
| Type: | Type TC-ER Unshielded |
| Insulation material: | PVC/Nylon |
| Manufacturer Name: | Omni Cable |
| UNSPSC: | 26121603 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$77.00 / Feet
Quantity:

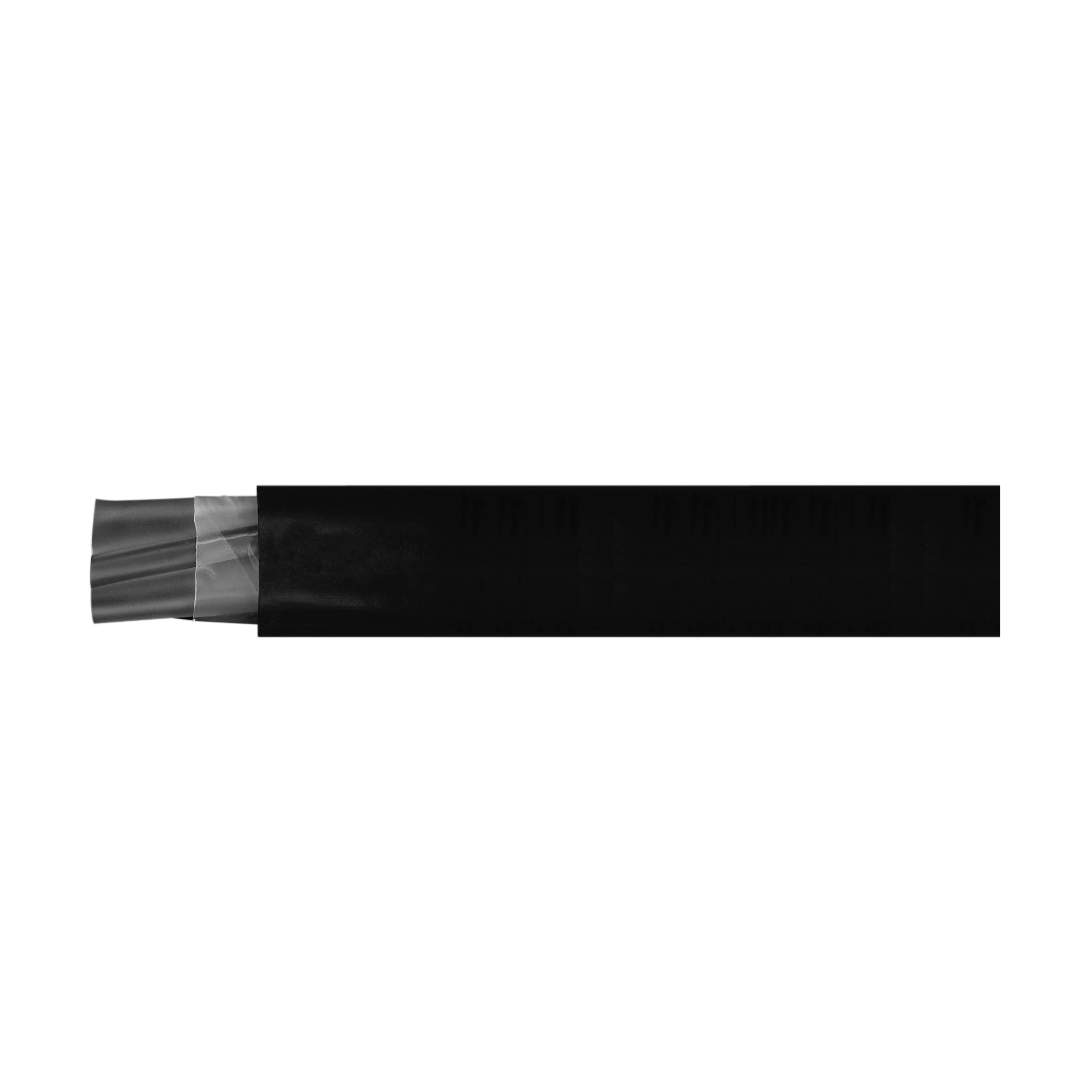

- Omni Cable VNTC Tray Cable, Type TC-ER Unshielded, 600 V AC, 4 Conductors, Annealed Bare Stranded Copper Conductor, 350 kcmil Conductor, 2.19 in OD, 61 Strands, PVC/Nylon Insulation, PVC Jacket, Black Jacket, 90 deg C
A335004 Application
For use in free air, raceways, direct burial and wet or dry locationsA335004 Item Features
- Bare annealed copper per ASTM B3, class B stranding per ASTM B8 conductor
- Flame-retardant polyvinyl chloride (PVC) with clear polyamide (nylon) insulation
- Uninsulated bare annealed copper per ASTM B3, class B stranding per ASTM B8 ground conductor
- Flame-retardant, sunlight-resistant polyvinyl chloride (PVC) jacket
- Black, printed number insulation
A335004 Standards
UL 83 NEC Type THHN/THWN Conductors|1581|1277 Type TC-ER Listed|IEEE 1202|Class 1|Division 2 NEC Certified|RoHS CompliantSKU #2440847Part Number #A335004UNSPSC26121603UPC
