Part Number # MV10-6FLX
SKU # 2441175
Image Disclaimers Message
Brand: 3M

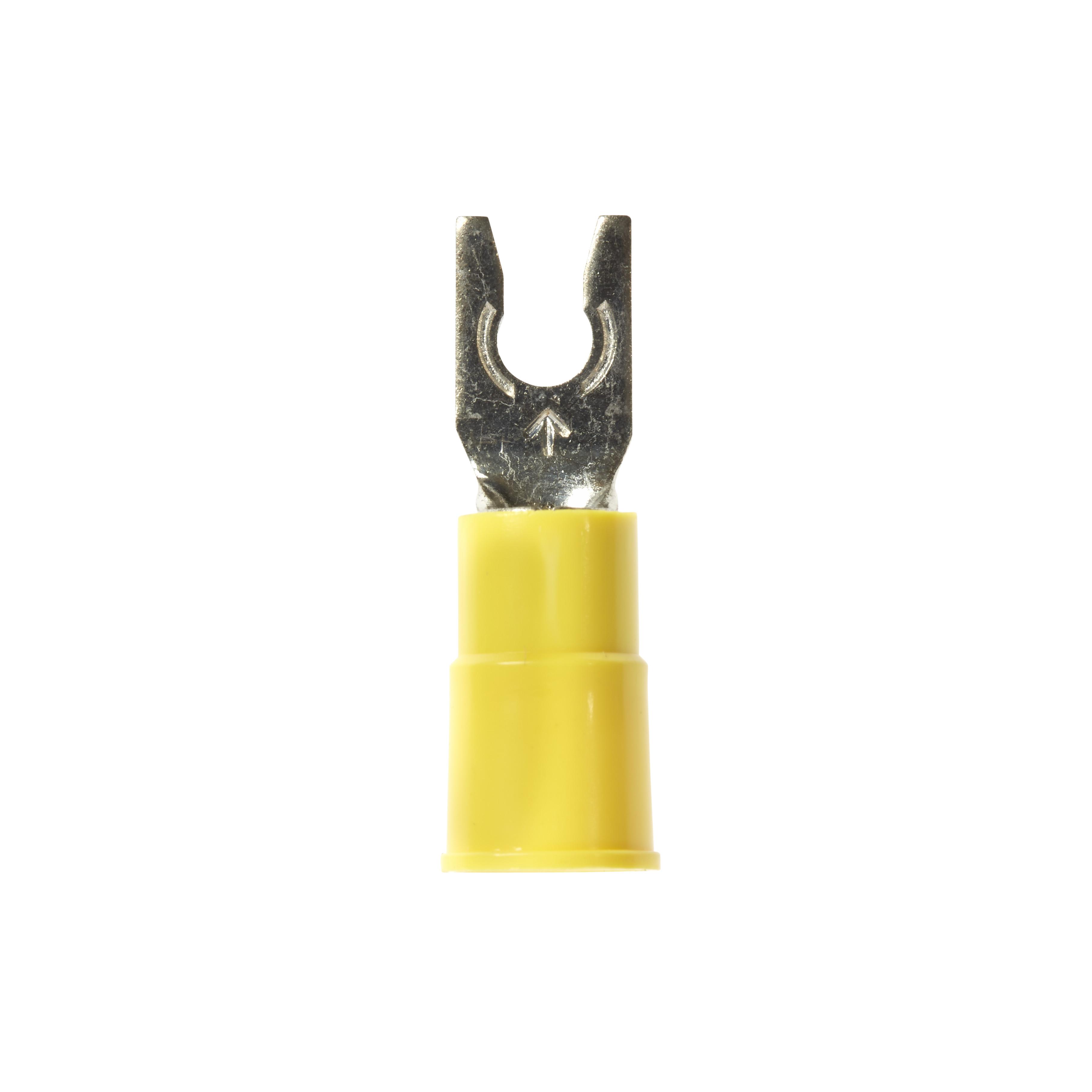

MV10-6FLX
3M MV10-6FLX
Part Number # MV10-6FLX
SKU # 2441175
$47.00 / 50Each
Typical price:$60.00 / Each
3M MV10-6FLX Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | MV10-6FLX |
| SKU #: | 2441175 |
| Dimensions: | 0.28 in W x 0.04 in THK |
| Temperature Rating (Degrees F): | -40 to 221 deg F |
| Tongue Type: | Fork |
| Type: | Insulated Locking |
| Color: | Yellow |
| Length: | 1.03 in |
| Material: | ETP/Electrolytic Copper |
| Barrel Size: | 0.135 in ID |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 12 to 10 AWG |
| Conductor Type: | Copper |
| Country of origin: | US |
| Finish: | Tin Plated |
| Manufacturer Name: | 3M |
| UNSPSC: | 31200000 |
| UPC: | 00051128588321 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$47.00 / 50Each
Typical price:$60.00 / Each
Quantity:
- 3M, 7010398194, Locking Fork, Insulated, 12 to 10 AWG Conductor, #6 Stud, 1.03 in Length, Brazed Seam Barrel, 0.135 in ID Barrel, Fork Tongue, 600 to 1000 V AC, -40 to 221 deg F, ETP/Electrolytic Copper, Tin Plated, Yellow, 0.28 in W x 0.04 in THK Dimensions
MV10-6FLX Item Features
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- 600V-rated for building wire and 1000v for signs, fixtures or luminaires
- Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Spring-like tongue firmly fits around the stud
- Electrolytic copper construction offers good conductivity
- Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
MV10-6FLX Standards
CSA Certified|RoHS Compliant|UL ListedSKU #2441175Part Number #MV10-6FLXUNSPSC31200000UPC00051128588321
