Brand: Weidmuller
Weidmuller 1041180000
Part Number # 1041180000
SKU # 2442093
Brand: Weidmuller
1041180000
Weidmuller 1041180000
Part Number # 1041180000
SKU # 2442093
$286.63 / 100Each
Typical price:$318.40 / Each
Weidmuller 1041180000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1041180000 |
| SKU #: | 2442093 |
| Dimensions: | 2.575 in H x 0.201 in W x 2.461 in D |
| Terminal Size: | 0.6 x 3.5 mm |
| Torque Rating: | 0.4 to 0.6 N-m |
| Wire Size: | 30 to 12 AWG |
| UNSPSC: | 39121410 |
| UPC: | 04032248014002 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$286.63 / 100Each
Typical price:$318.40 / Each
Quantity:
Weidmuller 1041180000
Brand: Weidmuller
Part Number: 1041180000
Additional Description: WEID-1041180000 WDK 2.5 ZQV BL MULTI-TIER MODULAR TERMINAL, SCREW CONNECTION, 2.5 MM, 400 V, 24 A, NUMBER OF LEVELS: 2, BLUE
Catalog Description: Terminal block with several levels for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. Space-saving design.
1041180000 Item Features
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety
- Klippon connect provides a proven response to a range of different requirements
- UL94 flammability rating - V-0
- Version - screw connection, for plug-in cross-connector, one end without connector
- End cover plate required
- Two potential and two level
- Two clamping points per level
- One potential per tier
- TS 35 mounting rail
- 0.5 to 1.5 sq-mm twin wire end ferrules
- On side connection direction
- 32 A current at maximum wires
- 2.66 mohm volume resistance according to IEC 60947-7-x
- 6 kV rated impulse withstand voltage
- 3 pollution severity
- 2-tier
- Lead free
- M2.5 screw connection
1041180000 Standards
CE Certified|CSA Certified|EAC Approved|IEC 60947-7-1|ATEX-KEMA|UR Listed|UL E60693|RoHS CompliantSKU #2442093Part Number #1041180000UNSPSC39121410UPC04032248014002

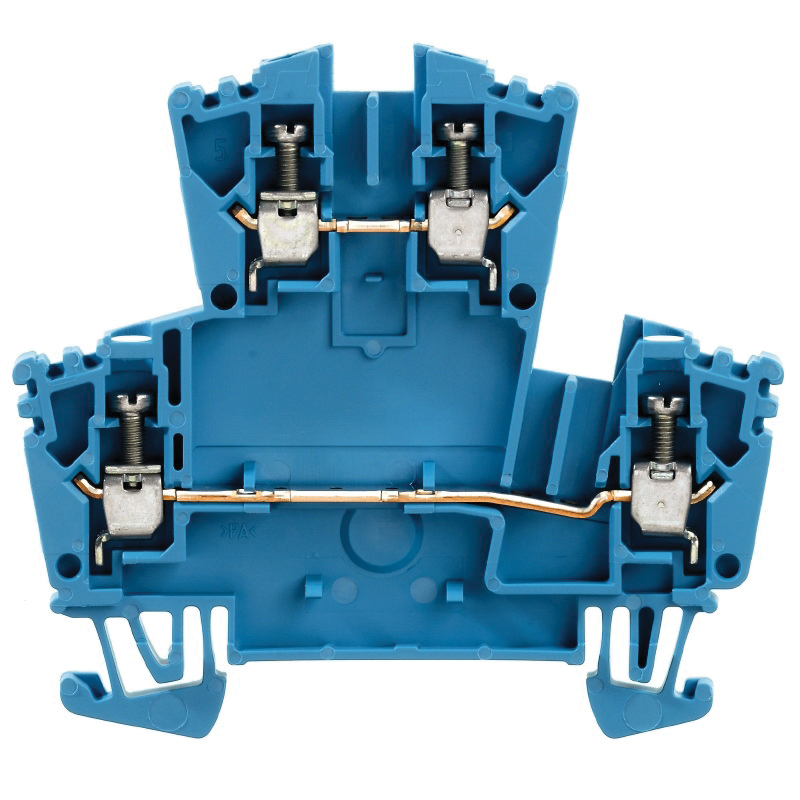

Image provided may only be a representation of final product and may include optional equipment
