1821160000
Weidmuller 1821160000
Part Number # 1821160000
SKU # 2442195
$334.81 / 350Each
Typical price:$385.35 / Each
Weidmuller 1821160000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1821160000 |
| SKU #: | 2442195 |
| Connector Type: | Male Header |
| Dimensions: | 10 mm H x 10.16 mm W x 12 mm D |
| Number of Positions: | 2 |
| Series: | BL/SL 5.08 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | THT/THR Solder |
| Type: | Board Connection High Current Open Side |
| Contact material: | CuMg |
| Country of origin: | DE |
| Housing material: | LCP GF |
| Mounting type: | PCB |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248319800 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$334.81 / 350Each
Typical price:$385.35 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection High Current Open Side, Series: BL/SL 5.08 Series, 2 Positions, 1 Row, 5.08 mm Pitch/Row Spacing, PCB Mounting, 300/400 V, Male Header Connector, THT/THR Solder Termination, CuMg Contact, LCP GF Housing Material, -50 to 100 deg C, Black, 10 mm H x 10.16 mm W x 12 mm D Dimensions
1821160000 Item Features
- High temperature-resistant, 90 deg angled, open male header
- On tape, with 1.5 mm solder pin, optimized for automatic assembly
- 3.2 mm solder pin suitable for reflow and wave soldering
- The pin headers provide space for labelling and can be coded
- 400 V IEC, 300 V UL
- https://youtu.be/Ifq_mdNjF4g
1821160000 Standards
RoHS Compliant|IEC 60664-1, IEC 61984|UL File No. E60693 Recognized|UL 1059|CSA File No. 200039-1176845|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2442195Part Number #1821160000UNSPSC31163101UPC04032248319800

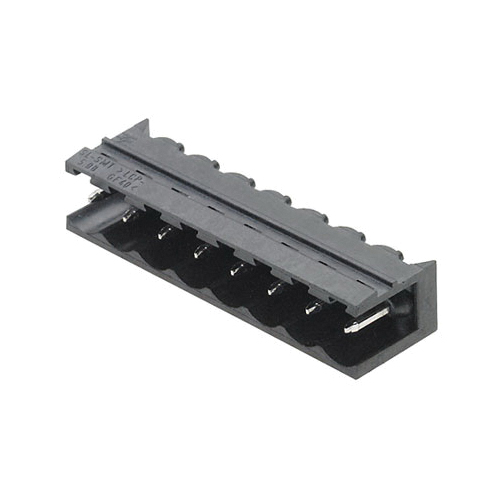

Image provided may only be a representation of final product and may include optional equipment
