2736310000
Weidmuller 2736310000
Part Number # 2736310000
SKU # 2442325
$93.55 / Each
Typical price:$103.91 / Each
Weidmuller 2736310000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2736310000 |
| SKU #: | 2442325 |
| Class: | II |
| Dimensions: | 111 mm H x 18 mm W x 68 mm D |
| Electrical Ratings: | 240 V AC |
| Enclosure Type: | IP20 |
| Environmental Conditions: | -40 to 85 deg C Operating/Storage Temperature, 5 to 95% Relative Humidity |
| Frequency Rating: | 50/60 Hz |
| Modes of Protection: | L-PE |
| Number of Poles: | 2 |
| Phase: | 1 |
| Response Time: | <=25 ns |
| Series: | VPU Series |
| Short Circuit Current Rating (kA): | 150 kA |
| Terminal Type: | Screw |
| Type: | Low Voltage |
| Country of origin: | SI |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121634 |
| UPC: | 04050118825411 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$93.55 / Each
Typical price:$103.91 / Each
Quantity:

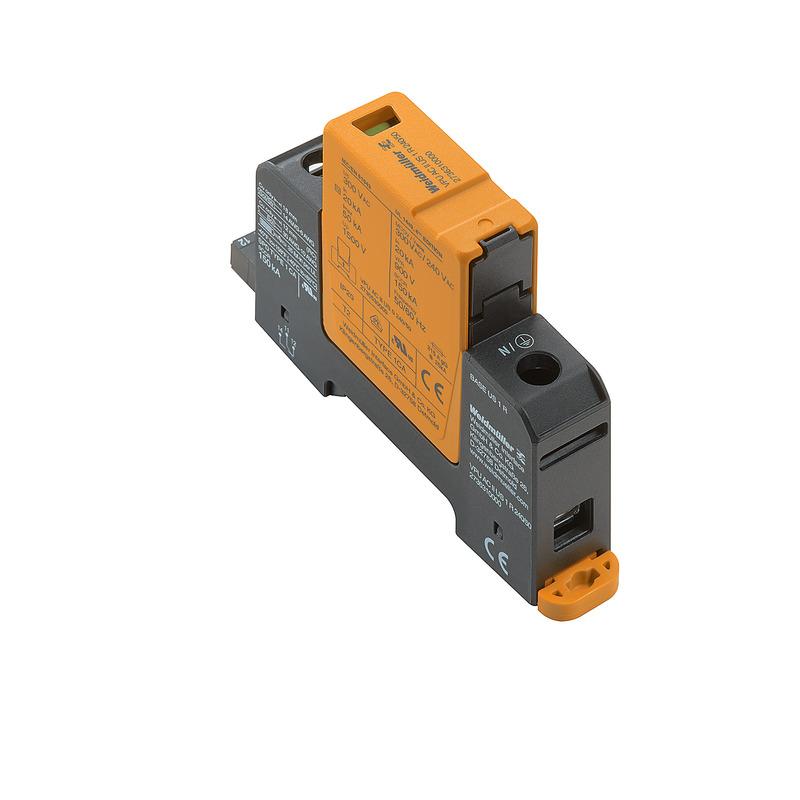

- Weidmuller, 2736310000, Surge Protection, Low Voltage, Series: VPU Series, 240 V AC Electrical Rating, 50/60 Hz Frequency, 2 Pole, 150 kA Short Circuit, 20 to 50 kA Nominal Discharge, Modes of Protection: L-PE, <=25 ns Response, 1 ph, Class: II, Environmental Conditions: -40 to 85 deg C Operating/Storage Temperature, 5 to 95% Relative Humidity, IP20 Enclosure, DIN Rail Mounting, Screw Terminal, Black/Orange, 111 mm H x 18 mm W x 68 mm D Dimensions
2736310000 Item Features
- 1 CO contact
- Unique multi-voltage input from 24 to 230 V UC
- Input voltages with coloured marking DC blue, UC white
- Due to high-quality design and no sharp edges no risk of injuries during installation
- Partition plates for optical separation and reinforcement of insulation
2736310000 Standards
RoHS Compliant|CE Certified|cULus Listed|VDESKU #2442325Part Number #2736310000UNSPSC39121634UPC04050118825411
Image provided may only be a representation of final product and may include optional equipment
