1305940000
Weidmuller 1305940000
Part Number # 1305940000
SKU # 2442339
$355.26 / Each
Weidmuller 1305940000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1305940000 |
| SKU #: | 2442339 |
| Finish: | Untreated/Polished |
| Series: | Klippon POK |
| Temperature Rating (Degrees F): | -40 to 100 deg C |
| Type: | Accessories |
| Depth: | 4.724 in |
| Height: | 9.842 in |
| Material: | Glass Fibre-Reinforced Polyester |
| Mounting type: | Lug/Wall |
| Width: | 15.748 in |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121327 |
| UPC: | 04050118108248 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$355.26 / Each
Quantity:

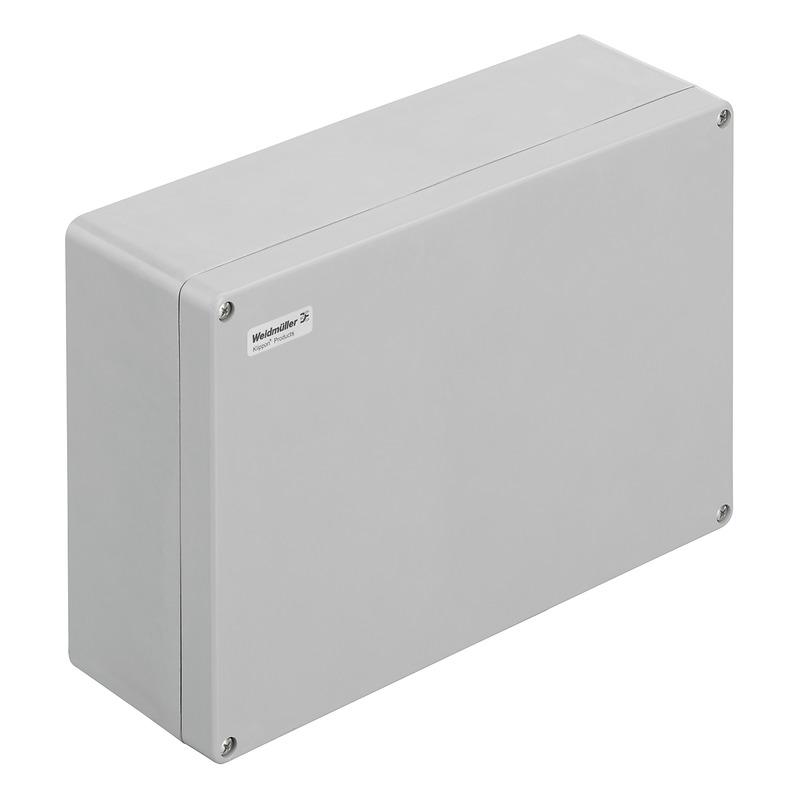

- Weidmuller, 1305940000, Empty Enclosure, Series: Klippon POK, 15.748 in Width, 4.724 in Depth, 9.842 in Height, NEMA 4/4x NEMA Rating, Slotted/Phillips Screw Cover, Lug/Wall Mounting, -40 to 100 deg C, Glass Fibre-Reinforced Polyester, Untreated/Polished, Silver Gray
1305940000 Item Features
- The Klippon POK enclosure range is made from a high-quality glass fibre reinforced polyester and is ideal for applications and environments where corrosion resistance, impact resistance and a high IP protection class are a requirement
- Available in 17 sizes
- Two standard finishes (colours) grey (similar to RAL 7001 for industrial use) and black (similar to RAL 9011 for harsh environments, Ex)
- Cover with stainless steel screws in cross-head / slotted design
- Moulded gasket made of silicone or chloroprene
- Fixing holes outside the sealed area to ensure high ingress protection of IP66
- Impact resistance up to 7 J
- Mounting directly in the enclosure or using an internal mounting plate
- Direct wall mounting possible using fixing holes or mounting feet
- Fastening thread to attach mounting rails and plates
- Up to E60 fire rating dependent on the configuration
1305940000 Standards
RoHS Compliant|CE Certified|cULus Listed|DETNORVER|EAC Certified|LLOYDSREGSKU #2442339Part Number #1305940000UNSPSC39121327UPC04050118108248
Image provided may only be a representation of final product and may include optional equipment
