Part Number # ADE1CN0753NPSCN
SKU # 2442400
Image Disclaimers Message
ADE1CN0753NPSCN
Crouse Hinds ADE1CN0753NPSCN
Part Number # ADE1CN0753NPSCN
SKU # 2442400
Crouse Hinds ADE1CN0753NPSCN Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | ADE1CN0753NPSCN |
| SKU #: | 2442400 |
| Cable Diameter: | 7 mm |
| Finish: | Nickel Plated |
| Series: | ADE1C |
| Suitable For Use With: | ITC, MV, PLTC, TC Unarmored Cable, Barrier Cable Gland, Deluge Proof, Marine Shipboard Cable and Tray Cable |
| Thread Size: | 3/4 in NPT |
| Color: | Red |
| Country of origin: | FR |
| Material: | Brass |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121431 |
| UPC: | 03589350031386 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds ADE1CN0753NPSCN
Brand: Crouse Hinds
Part Number: ADE1CN0753NPSCN

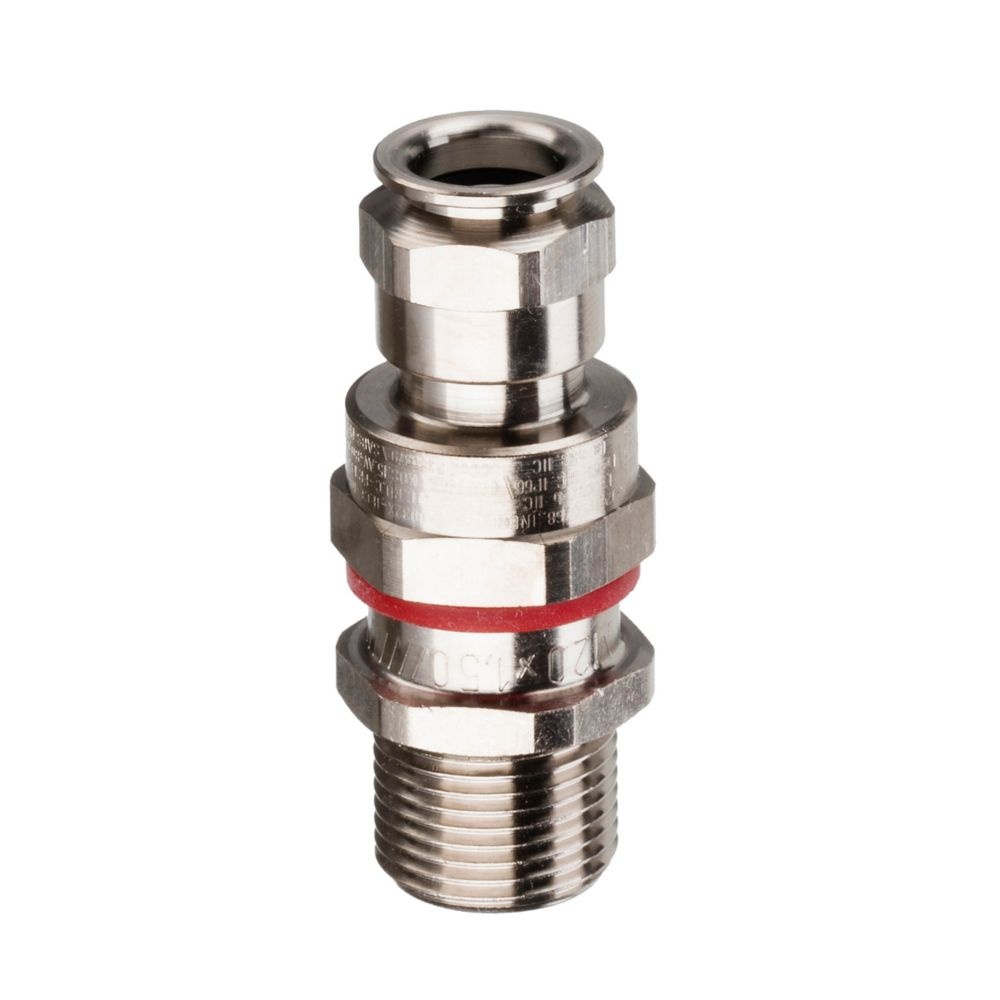

Crouse-Hinds Capri Cable Gland, Series: ADE1C, 3/4 in NPT, 7 Cable Dia, For Use With: ITC, MV, PLTC, TC Unarmored Cable, Barrier Cable Gland, Deluge Proof, Marine Shipboard Cable and Tray Cable, Brass, Nickel Plated, Red
Additional Description: CRHD-ADE1CN0753NPSCN (N) GLAND CBL 3/4IN NPT 7MM BRS ITC MV PLTC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Capri ADE-1FC cable gland, TSC Compound, !3 (L), Straight, Gland size 7, Non-armoured Barrier, Nickel plated brass, 12-21 outer sheath, Flameproof and increased safety, Silicone seal, 3/4" NPT
ADE1CN0753NPSCN Item Features
- Specifically formulated elastomer for IP sealing on outer sheath of cable
- Sealing of cable conductors with compound barrier seal
- Deluge seal provides enhanced ingress protection
- Additional external cable clamping for strain relief
- N075 NPT thread code
- Three large cable sealing range
- 17 in Dia maximum over core
- Solid compound/neoprene
- -60 to 80 deg C (ATEX/IECEx), -20 to 40 deg C (UL)
- 12 to 21 mm OD cable sealing
ADE1CN0753NPSCN Standards
UL Listed|cULus Listed|ATEX INERIS12ATEX0032X|IECEx INE 12.0025XSKU #2442400Part Number #ADE1CN0753NPSCNUNSPSC39121431UPC03589350031386
