Part Number # ADE2N0503NPN
SKU # 2442405
Image Disclaimers Message
ADE2N0503NPN
Crouse Hinds ADE2N0503NPN
Part Number # ADE2N0503NPN
SKU # 2442405
$59.26 / Each
Typical price:$78.22 / Each
Crouse Hinds ADE2N0503NPN Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | ADE2N0503NPN |
| SKU #: | 2442405 |
| Cable Diameter: | 10 to 15.5 mm |
| Finish: | Nickel Plated |
| Series: | ADE2 |
| Temperature Rating (Degrees F): | -30 to 80 deg C |
| Thread Size: | 1/2 in NPT |
| Country of origin: | FR |
| Material: | Brass |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121431 |
| UPC: | 03589350040036 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$59.26 / Each
Typical price:$78.22 / Each
Quantity:
Crouse Hinds ADE2N0503NPN
Brand: Crouse Hinds
Part Number: ADE2N0503NPN

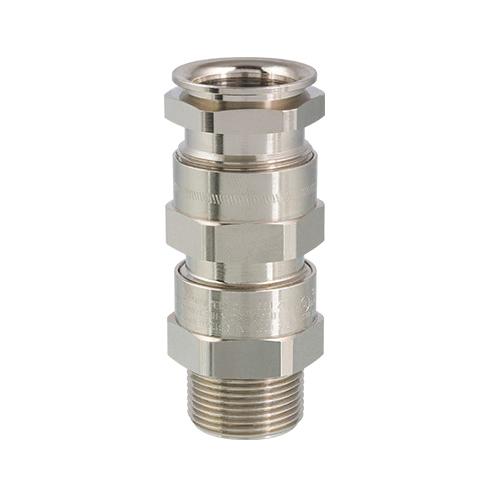

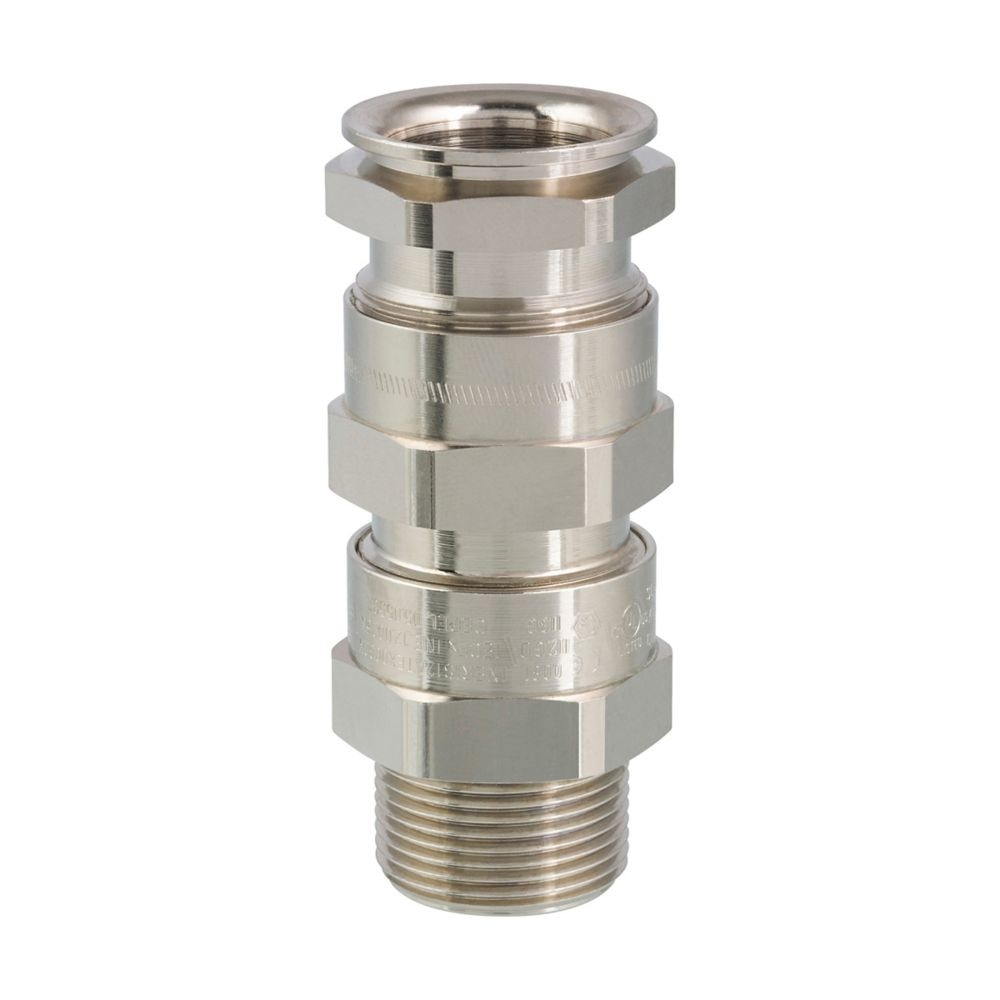

Crouse-Hinds Non-Armored Cable Gland, Series: ADE2, 1/2 in NPT, 10 to 15.5 mm Cable Dia, 22.2 mm Thread Length, -30 to 80 deg C, Brass, Nickel Plated
Additional Description: CRHD-ADE2N0503NPN (N) GLAND CBL NON-ARMD 1/2 IN NPT 22.2MM BRS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Capri ADE-1F2 DS cable gland, 3 (L), Straight, Gland size 6, Non-armoured, Nickel plated brass, 10-15.5 outer sheath, Flameproof and increased safety, Silicone seal, 1/2" NPT
ADE2N0503NPN Application
For unarmored cable, double compression cable gland with seal anchorage, marine shipboard cable, type P cable, tray cableADE2N0503NPN Item Features
- Flameproof and sealing on outer sheath of the cable
- Environmental sealing and controlled pulling resistance on outer sheath of the cable
- Additional clamping for strain relief
- IP66/IP68 according to the method of attachment and the condition of the equipment area
- Premium source
- Size 3 cable codes sealing range
ADE2N0503NPN Standards
ABS 14-HS1274083-PDA|ATEX/IECEx INE 12 0025X|EAC|C/CEPEL 05.0558X|CCoE P360379-1|DNV TAE000010X|UL/cULuc Listed|KOSHA 2015-BO-0249 to 0256|LLOYDS 11/00072|NANIO TC-RU C-FR.1605.B.00858|NEPSI GYJ13.1082X|SABS MS/15-0314XSKU #2442405Part Number #ADE2N0503NPNUNSPSC39121431UPC03589350040036
