Part Number # VH362RBGL
SKU # 2442815
Image Disclaimers Message
VH362RBGL

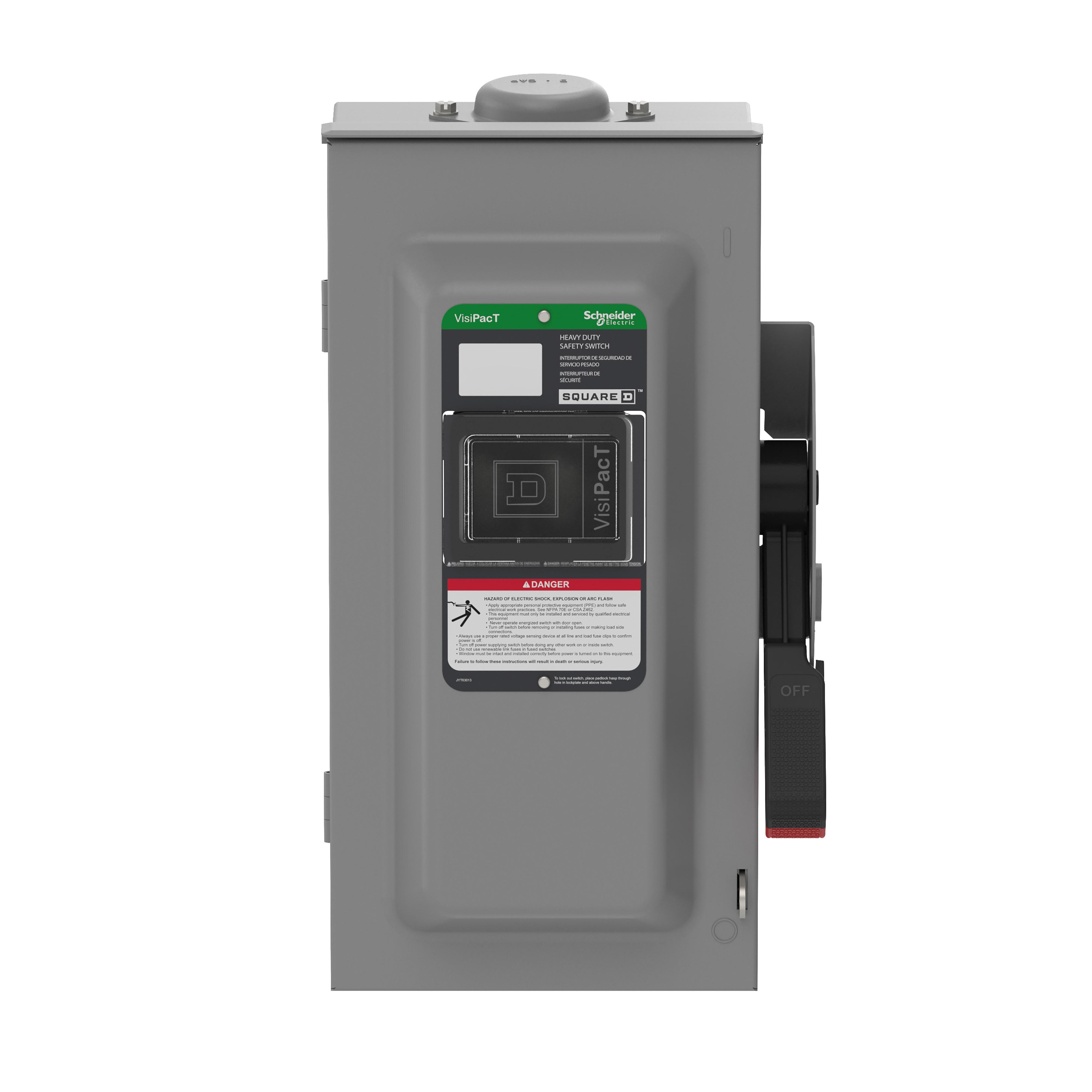

Schneider Electric VH362RBGL
Part Number # VH362RBGL
SKU # 2442815
$2576.09 / Each
Schneider Electric VH362RBGL Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | VH362RBGL |
| SKU #: | 2442815 |
| Actuator Type: | Handle |
| Amperage Rating: | 60 A |
| Contact Form: | Single Throw |
| Dimensions: | 18.75 in H x 9.08 in W x 7.038 in D |
| Enclosure Type: | NEMA 3R |
| Finish: | Galvannealed |
| Frequency Rating: | 50 to 60 Hz |
| Horsepower: | 15, 30, 50 hp |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 3 |
| Short Circuit Current Rating (kA): | 10, 200 kA |
| Terminal Type: | Lug |
| Type: | Heavy Duty Fusible Disconnect |
| Country of origin: | US |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122205 |
| UPC: | 03606485894058 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2576.09 / Each
Quantity:
- Square D, VH362RBGL, Safety Switch, Heavy Duty Fusible Disconnect, 600 V AC, 600 V DC, 60 A, 15, 30, 50 hp, 3 ph, 50 to 60 Hz Frequency, 3 Pole, 3 Wires, 10, 200 kA Short Circuit, Handle Actuator, Class H/J/K/R Insulation, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, 18.75 in H x 9.08 in W x 7.038 in D Dimensions, Steel, Galvannealed
VH362RBGL Application
Ideal for all your commercial and industrial needsVH362RBGL Item Features
- Viewing window allows visual confirmation of switch state with door closed
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
- Quick make, quick break operating mechanism
- Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
VH362RBGL Standards
UL98/NEMA KS1 Standards|UL Files E2875/E154828SKU #2442815Part Number #VH362RBGLUNSPSC39122205UPC03606485894058
