Part Number # 831VS240A
SKU # 2442889
Image Disclaimers Message

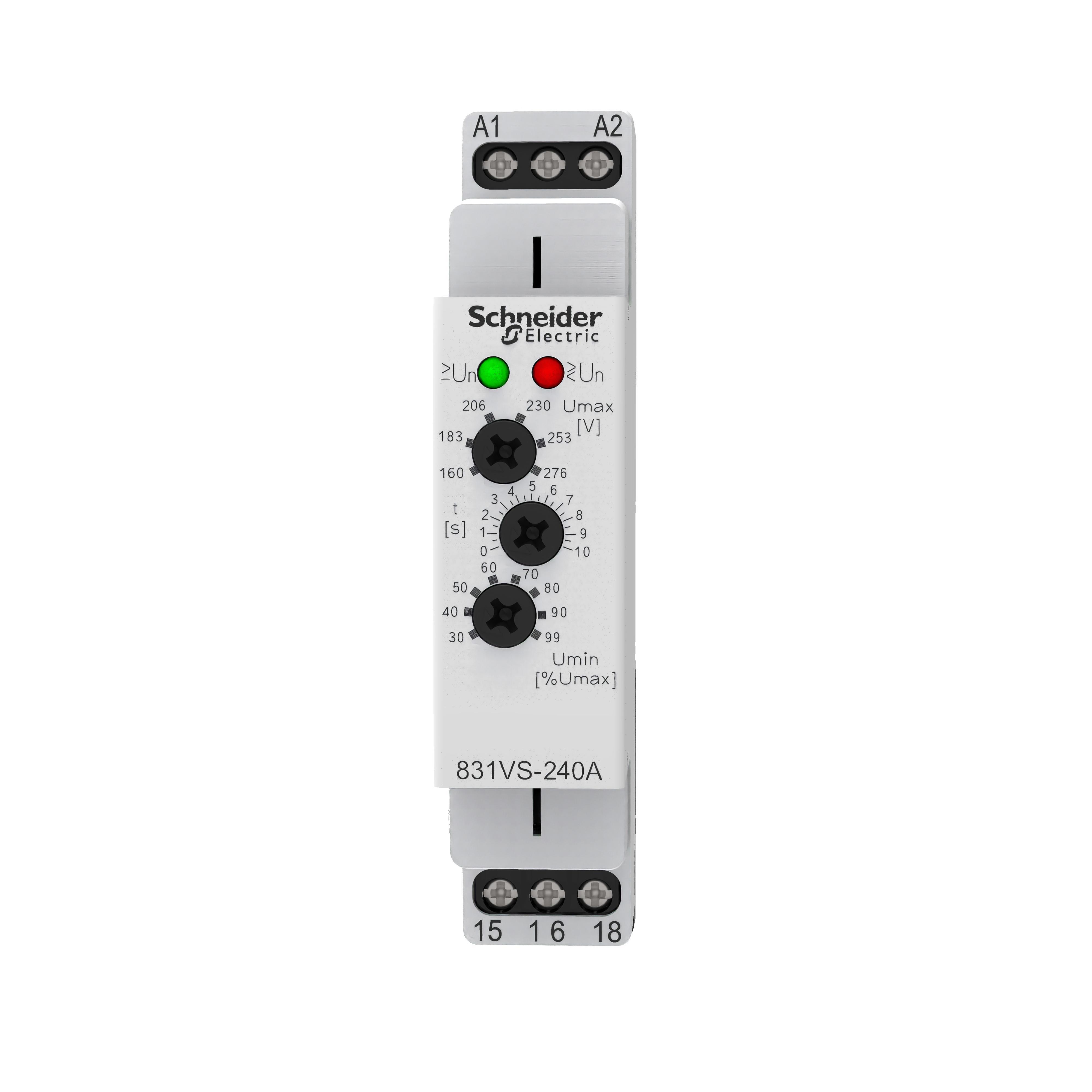

Square D 831VS240A Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 831VS240A |
| SKU #: | 2442889 |
| Amperage Rating: | 15 A |
| Dimensions: | 2.57 in H x 0.69 in W x 3.54 in D |
| Enclosure Type: | IP40 |
| Sensor Type: | Voltage sensor |
| Series: | 831 Series |
| Trip Delay: | 0.10 to 10 s |
| Contact material: | Silver Alloy |
| Country of origin: | CZ |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122324 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Schneider Electric 831VS-240A, 831 Series, 15 A, Voltage sensor Sensor, silver alloy Contact, DIN Rail Mounting, 0.10 to 10 s Trip Delay, IP40 Enclosure, 2.57 in H x 0.69 in W x 3.54 in D Dimensions
831VS240A Application
For tight spaces, For the voltage sensor831VS240A Item Features
- Diagnostic test feature to checks the downstream circuit
- Dial-pointer LEDs to Increases programming visibility
- True RMS detection to eliminates errors and mis operation
- Positive logic output to protects the system during a power loss
- Multiple timing and detection functions to Improve equipment operation safely manage undesired conditions
- AgNi contacts material
- Adjustable time delay type
- 0 to 10 s time delay range
- 2 to 6 % adjustable from fault to OK state overvoltage or undervoltage detection hysteresis
- 160 to 276 V AC factory setting)30 to 99 % of Us Auto calibration tripping threshold
- < 1 %/ deg C temperature drift
- 30000000 cycles mechanical durability
- 2.19 oz (62 g) product weight
- 4000 V between input and output dielectric strength
- With toxic heavy metal free
831VS240A Standards
