2500510000

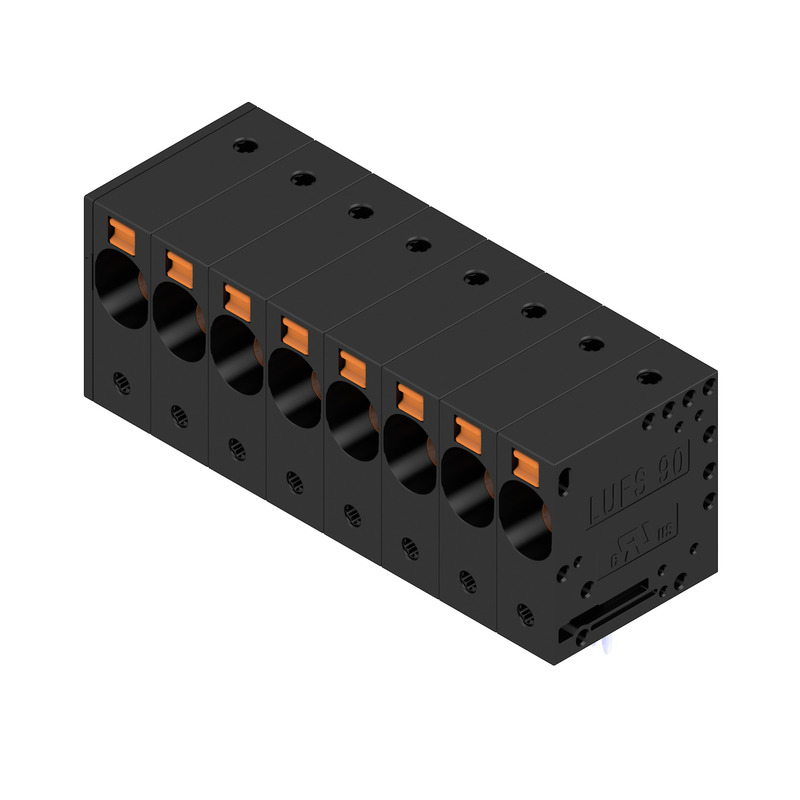

Weidmuller 2500510000
Part Number # 2500510000
SKU # 2442948
$268.48 / 10Each
Typical price:$309.07 / Each
Weidmuller 2500510000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2500510000 |
| SKU #: | 2442948 |
| Connector Type: | THT Solder |
| Dimensions: | 1.378 in H x 3.22 in W x 1.124 in D |
| Temperature Rating (Degrees F): | -40 to 120 deg C |
| Termination Type: | Push-In |
| Type: | PCB Terminal |
| Wire Size: | 18 to 4 AWG |
| Country of origin: | CN |
| Housing material: | PA |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118604566 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$268.48 / 10Each
Typical price:$309.07 / Each
Quantity:
- Weidmuller, 2500510000, Connectors, PCB Terminals, 1 Rows, 0.394 in Pitch/Row Spacing, 18 to 4 AWG Wire, 600 V, THT Solder Connector, Push-In Termination, PA Housing Material, -40 to 120 deg C, Black, 1.378 in H x 3.22 in W x 1.124 in D Dimensions
2500510000 Item Features
- High-performance PCB terminal with a PUSH IN connection system for conductor cross-sections up to 16 mm sq
- Fast connection without tools thanks to pushers to open the contact point, or direct plug-in method
- Securely closed contact point, with the Connection Safety Concept the conductor is always clamped securely
- Integrated test point for PS 2.0 test plug
- Central tip test point for test probes on the upper side of the terminal
- Increased derating reserves because WEMID insulating material is used
- Conductor outlet direction of 180 deg
2500510000 Standards
RoHS Compliant|cURus ListedSKU #2442948Part Number #2500510000UNSPSC39121410UPC04050118604566
Image provided may only be a representation of final product and may include optional equipment
