1513980000
Weidmuller 1513980000
Part Number # 1513980000
SKU # 2443015
$65.17 / 50Each
Typical price:$72.40 / Each
Weidmuller 1513980000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1513980000 |
| SKU #: | 2443015 |
| Amperage Rating: | 24 A |
| Dimensions: | 16.5 mm H x 5.1 mm W x 42.5 mm D |
| Number of Positions: | 1 |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Type: | Push-In |
| Wire Size: | 28 to 12 AWG |
| Country of origin: | RO |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118321470 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$65.17 / 50Each
Typical price:$72.40 / Each
Quantity:
- Klippon Terminal Plug, Series: A Series, 800 V, 24 A, 1 Position, 28 to 12 AWG Wire, Push-In Terminal, -60 to 130 deg C, Wemid, Green, 16.5 mm H x 5.1 mm W x 42.5 mm D Dimensions
1513980000 Item Features
- Innovative PUSH IN technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
- https://youtu.be/Ax-uMMGVSA4
1513980000 Standards
RoHS Compliant|UL File No. E60693|Bureau Veritas Approved|DNV-GL Approved|cULus Recognized|CSA Certified|IEC 60947-7-1|IEC 61984|UL 94 V-0 Flammability RatingSKU #2443015Part Number #1513980000UNSPSC39121410UPC04050118321470

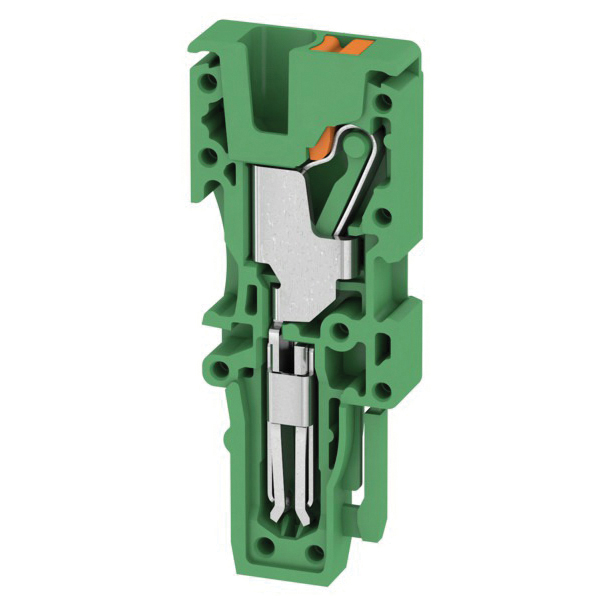

Image provided may only be a representation of final product and may include optional equipment
