Part Number # XB5AS84462
SKU # 2443520
Image Disclaimers Message
XB5AS84462

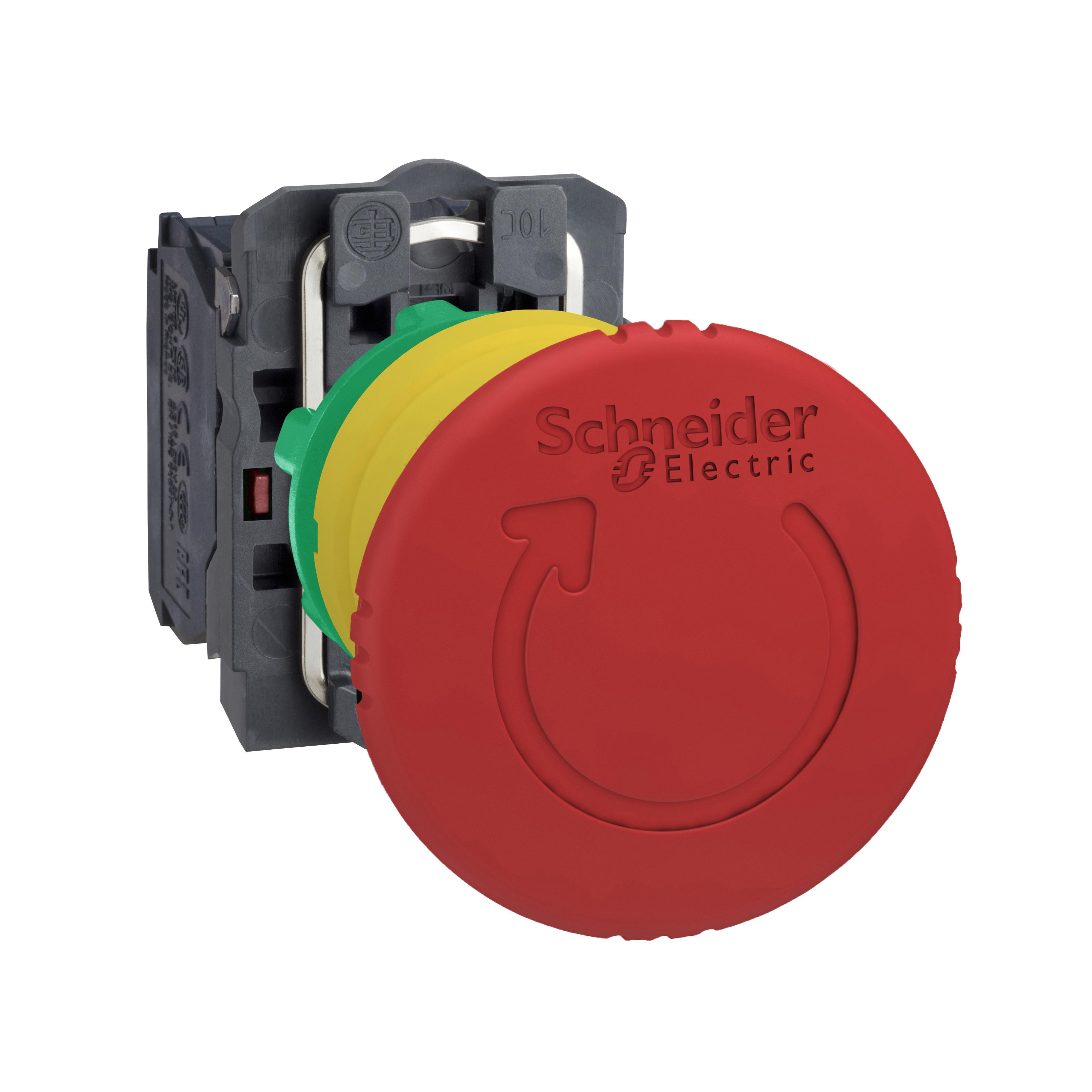

Schneider Electric XB5AS84462
Part Number # XB5AS84462
SKU # 2443520
$134.61 / Each
Typical price:$169.94 / Each
Schneider Electric XB5AS84462 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XB5AS84462 |
| SKU #: | 2443520 |
| Actuator: | Mushroom |
| Bezel/Housing: | Plastic |
| Contact Configuration: | 2NC |
| Contact Rating: | 1.5 A at 240 V AC, 3 A at 120 V AC, 0.11 A at 250 V DC, 0.22 A at 125 V DC, 1.5 A at 240 VAC, 3 A at 120 VAC, 0.11 A at 250 VDC, 0.22 A at 125 VDC |
| Environmental Conditions: | -40 to 158 deg F Operating/Storage Temperature |
| Operator Type: | Trigger Action/Mechanical Latching |
| Series: | XB5 |
| Size: | 22 mm |
| Terminal Type: | Screw Clamp |
| Type: | Emergency Stop |
| Color: | Red |
| Country of origin: | CZ |
| Material: | Plastic |
| Mounting type: | Holes |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121545 |
| UPC: | 03606481068750 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$134.61 / Each
Typical price:$169.94 / Each
Quantity:
- Schneider Electric, XB5AS84462, Push-Button, Emergency Stop, Series: XB5, 22 mm Size, 2NC Contact Configuration, Slow Break Contact, 1.5 A at 240 V AC, 3 A at 120 V AC, 0.11 A at 250 V DC, 0.22 A at 125 V DC Contact, Bezel/Housing: Plastic, Mushroom Actuator, Screw Clamp Terminal, Holes Mounting, Red, Environmental Conditions: -40 to 158 deg F Operating/Storage Temperature
XB5AS84462 Item Features
- Operating temperature from -40 deg C - to 70 deg C
- Shock protection level up to IK06
- High vibration resistance with shake-proof terminal screws
- A large set of accessories to customize your panels
- Various types of connection are available, screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purpose or specific applications (low current, standard, or high power switching)
XB5AS84462 Standards
UL Listed|CSA Certified|UKCA|EAC|IP69|IP69K Rated|CE|IP66|CCC|IP67|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-5|EN/IEC 60204-1|IEC 60947-5-4|IEC 60364-5-53|EN/ISO 13850|UL 60947-5-1|CSA C22.2 No 60947-5-1|JIS C8201-1|JIS C8201-5-1|GB/T 14048.5|BS EN 60947-5-1|GOST IEC 60947-5-1SKU #2443520Part Number #XB5AS84462UNSPSC39121545UPC03606481068750
