Part Number # AF12N0R-30-22-13
SKU # 2443655

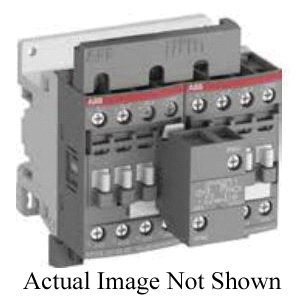

Image Disclaimers Message
AF12N0R-30-22-13
ABB AF12N0R-30-22-13
Part Number # AF12N0R-30-22-13
SKU # 2443655
$306.57 / Each
Typical price:$521.59 / Each
ABB AF12N0R-30-22-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF12N0R-30-22-13 |
| SKU #: | 2443655 |
| Coil Power Rating: | 3 hp, 5 hp |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 1.77 in W x 3.03 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Size: | NEMA 0 |
| Terminal Type: | Screw |
| Type: | AC/DC Operated Reversing |
| Connection type: | Cable Clamp |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523020337 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$306.57 / Each
Typical price:$521.59 / Each
Quantity:
- ABB NEMA Contactor, AC/DC Operated Reversing, 100 to 250 V AC/DC Coil, 18 A Maximum Load Current, 3 hp, 5 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, Cable Clamp Connection, NEMA 0 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 1.77 in W x 3.03 in D Dimensions
AF12N0R-30-22-13 Application
For directionally controlling 3-phase motor circuits up to 575 VACAF12N0R-30-22-13 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- 3 hp at 200/230 VAC, 5 hp at 460/575 VAC
AF12N0R-30-22-13 Standards
UL 508|CSA 22.2 60947-4-1SKU #2443655Part Number #AF12N0R-30-22-13UNSPSC39121529UPC03471523020337
