METSEPM5580

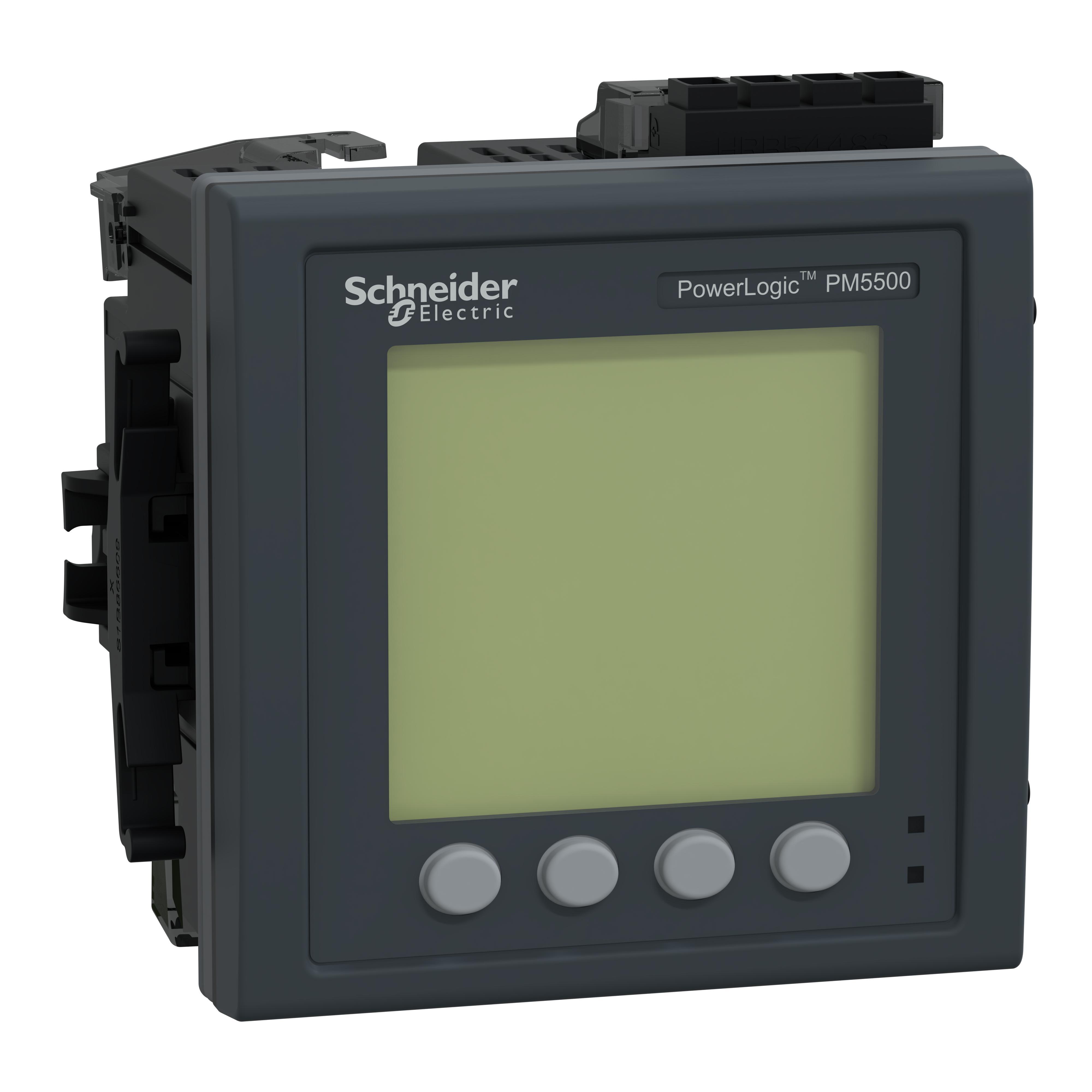

Schneider Electric METSEPM5580
Part Number # METSEPM5580
SKU # 2443867
$3235.74 / Each
Typical price:$3721.10 / Each
Schneider Electric METSEPM5580 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | METSEPM5580 |
| SKU #: | 2443867 |
| Dimensions: | 3.78 in H x 3.78 in W x 2.83 in D |
| Display Type: | Backlit LCD |
| Frequency Rating: | 50 to 60 Hz |
| Country of origin: | IN |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 41113708 |
| UPC: | 00785901766889 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3235.74 / Each
Typical price:$3721.10 / Each
Quantity:
- Schneider Electric METSEPM5580, 50 to 60 Hz Frequency, 0.2S Accuracy, Backlit LCD Display, 3.78 in H x 3.78 in W x 2.83 in D Dimensions
METSEPM5580 Application
For up to 14 selectable parameters with configurable interval and duration, For this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three PhaseMETSEPM5580 Item Features
- The PowerLogic PM5000 series power meters are the new benchmark in affordable, precision metering
- It is the ideal fit for high-end cost management applications, providing the measurement capabilities needed to allocate energy usage, perform tenant metering and sub-billing, pin-point energy savings, optimize equipment efficiency and utilization, and perform a high level assessment of the power quality in an electrical network
- Characteristics Accuracy class 0.2S (PM5500 models) and 0.5S (PM5100, PM5300 models) for active energy metering
- Compliance to regulations EN50470-1/3 (MID), IEC 61557-12, IEC 62053-21/22, IEC 62053-23
- Onboard web pages (PM5500 models) for viewing real-time and logged information
- Data logging (PM5300, PM5500 models) locally in non-volatile memory ensures that information is not lost during a power or communications outage
- Multiple tariffs (PM5300, PM5500 models) give you flexibility in your billing structure
- Individual harmonics in addition to THD and TDD to help locate the source of disturbances
- Graphical display with intuitive menu-driven navigation means information is easy to locate and read
- Compact design, two clips for mounting
- Four current inputs (PM5500 models)
- Extended voltage range (direct connection up to 690 V L-L)
- BTL-approved BACnet/IP protocol (PM5500 models) simplify meter integration into new or existing BMS systems
- ModBus TCP and BACnet IP protocols (PM5500 models) allow more than one system to communicate with the same meter at the same time
- Real-time clock with battery back up
- 9842.52 ft (3000 m) operating altitude
- Up to the 63rd harmonic power quality analysis
- Measured neutral currentCalculated ground current metering type
- CurrentVoltageFrequencyPower factorEnergyActive and reactive power type of measurement
METSEPM5580 Standards
CE IEC 61010-1CULus UL 61010-1|EN 50470-3IEC 61557-12IEC 62053-22IEC 62053-24IEC 60529EN 50470-1UL 61010-1SKU #2443867Part Number #METSEPM5580UNSPSC41113708UPC00785901766889
