Part Number # TCF350
SKU # 2443935
TCF350

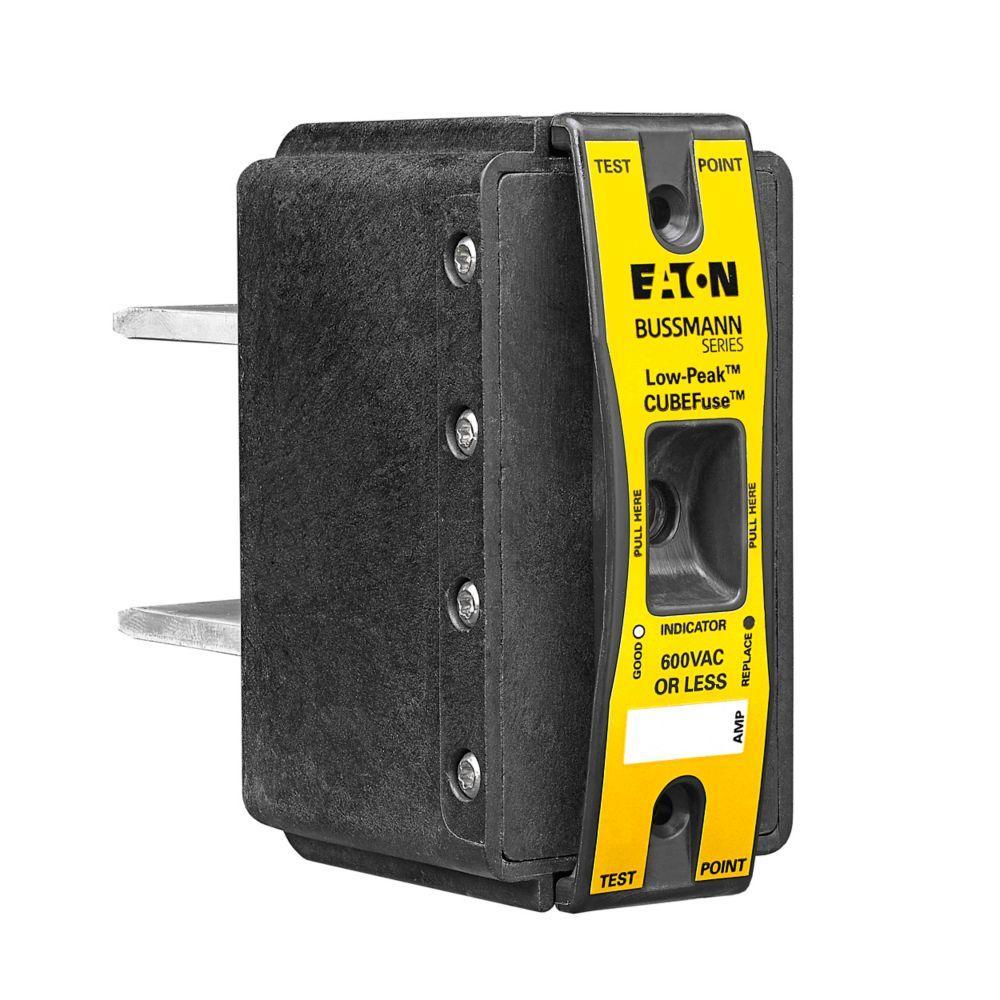

Bussmann TCF350
Part Number # TCF350
SKU # 2443935
$757.03 / Each
Typical price:$1289.83 / Each
Bussmann TCF350 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF350 |
| SKU #: | 2443935 |
| Amperage Rating: | 350 A |
| Body Type: | Square |
| Class: | CF |
| Interrupt Rating: | 200 kA AC/100 kA DC |
| Response Time: | 10 s |
| Series: | TCF |
| Terminal Type: | Radial Blade Plug-In |
| Type: | Indicating Time Delay |
| Country of origin: | MX |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712697842 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$757.03 / Each
Typical price:$1289.83 / Each
Quantity:
Bussmann TCF350
Brand: Bussmann
Part Number: TCF350
Additional Description: BUSS-TCF350 (N) TIME DELAY CUBEFUSE 350A IND NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 350 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 200 kA at 600 Vac
TCF350 Application
Electrical Panelboards, Machinery Disconnects, Finger Safe Systems, Industrial Control and Panel ApplicationsTCF350 Item Features
- The worlds first finger safe industrial fuse system
- Smallest installed footprint of any UL Class CC, J, or R fuse solution
- UL Class CF with Class J time delay electrical performance
- The indicating version features local easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults reduces destructive thermal and magnetic forces
- True dual-element fuse construction with a minimum of 10 sec time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- Up to 300 kA interrupting rating safely interrupts virtually any fault
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides TYPE 2 no damage protection for IEC motors starters when properly sized
- Easy selective coordination with any other Bussmann series Low-Peak Class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
- 200 kA RMS symmetrical for UL, 100 kA DC for UL/CSA interrupting
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF350 Standards
Not Applicable,RoHS CompliantSKU #2443935Part Number #TCF350UNSPSC39121606UPC00051712697842
Image provided may only be a representation of final product and may include optional equipment
