V7-1B19D8-022

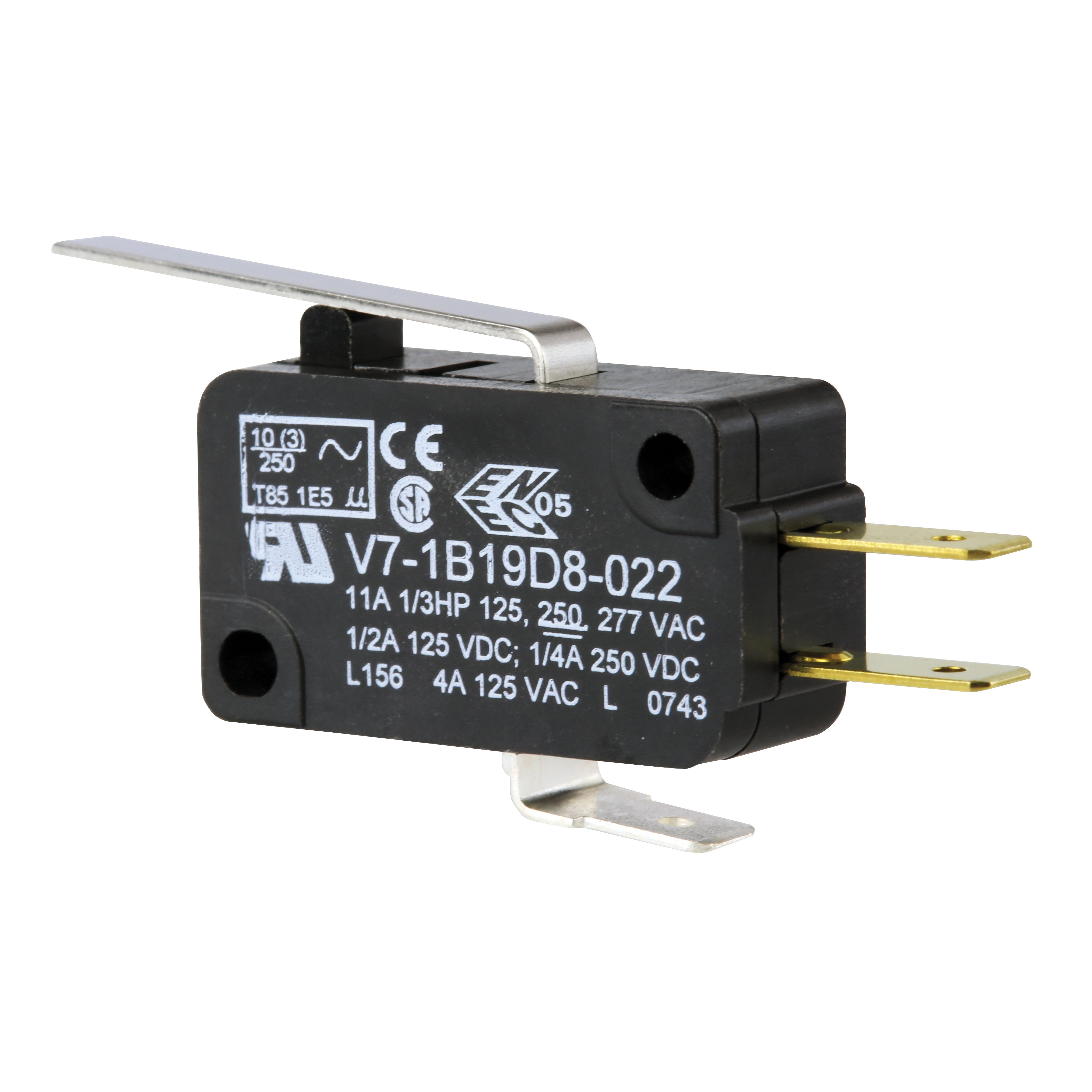

Honeywell V7-1B19D8-022 Basic Switch
Part Number # V7-1B19D8-022
SKU # 244405
$618.00 / Each
Honeywell V7-1B19D8-022 Key Features
| Brand: | Honeywell |
|---|---|
| Part Number # : | V7-1B19D8-022 |
| SKU #: | 244405 |
| Contact Rating: | 11 A at 277 V AC |
| Material: | Polycyclohexylenedimethylene Terephthalate |
| Operating Temperature: | -40 to 82 deg C |
| Series: | V7 |
| Size: | 1.14 in L x 0.4 in W x 0.63 in H |
| Manufacturer Name: | Protective Industrial Products |
| UNSPSC: | 39122213 |
| UPC: | 6.61191E+11 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$618.00 / Each
Quantity:
- PIP MICRO SWITCH Basic Switch, Miniature Premium, Series: V7, 277 V AC, 11 A, 50/60 Hz, SPDT, 11 A at 277 V AC Contact, 1 Pole, Snap, Lever, Quick-Connect, Panel Mount, 1.14 in L x 0.4 in W x 0.63 in H, 10000000 Cycles Operating Cycles, -40 to 82 deg C Operating, Polycyclohexylenedimethylene Terephthalate
V7-1B19D8-022 Application
For appliances, vending machines, timing devices, office equipment, computer/business equipment, test instruments, medical/dental equipment, communications equipment, HVAC equipment, manually operated devices, valves, gaming equipment and pressure switchesV7-1B19D8-022 Item Features
- 1.41 in actuator length
- 0.80 N maximum operating force
- 0.08 N minimum release force
- 0.128 in maximum pretravel
- 0.070 in minimum over travel
- 0.028 in maximum differential travel
- 0.603 in +/- 0.043 in operating position
- 0.88 in mounting centers
- 5.0 in-lb tightening torque
- PCT polyester thermoplastic housing with silver contact material
- Best suited for higher cost-of-failure applications
- Designed for 100K operations at a full load or 10M for mechanical life
- World wide package size acceptance
- Upto 10 million mechanical cycles
V7-1B19D8-022 Standards
CE 61058-1|CSA LR41372|UL E12252SKU #244405Part Number #V7-1B19D8-022UNSPSC39122213UPC6.61191E+11
Image provided may only be a representation of final product and may include optional equipment
