1547650000
Weidmuller 1547650000
Part Number # 1547650000
SKU # 2444084
$269.66 / 50Each
Typical price:$299.55 / Each
Weidmuller 1547650000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1547650000 |
| SKU #: | 2444084 |
| Amperage Rating: | 24 A |
| Dimensions: | 90 mm H x 5.1 mm W x 50.5 mm D |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | 3-Tier Modular Feed-Through |
| Wire Size: | 2.5 sq-mm |
| Connection type: | Push-In |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118462876 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$269.66 / 50Each
Typical price:$299.55 / Each
Quantity:

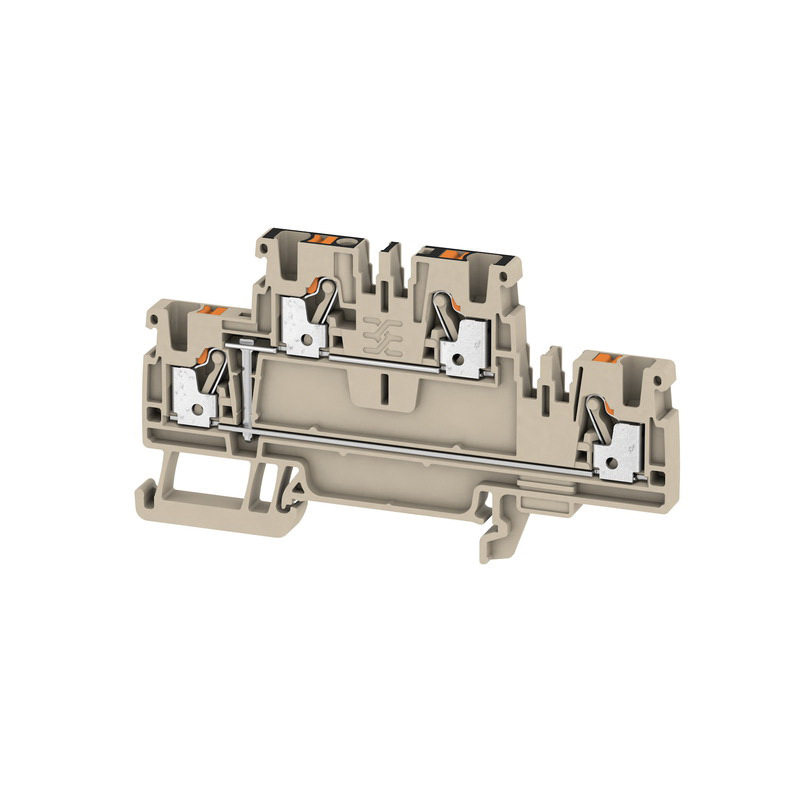

- Klippon Terminal Block, 3-Tier Modular Feed-Through, Series: A Series, 800 V, 24 A, 2.5 sq-mm Wire, 10 mm Wire Strip Length, Snap-Fit Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Dark Beige, 90 mm H x 5.1 mm W x 50.5 mm D Dimensions
1547650000 Application
Power Distribution Applications1547650000 Item Features
- Spring connection with PUSH IN technology
- The innovative PUSH IN technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
1547650000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 200039-70089609|ATEX File No. TUEV16ATEX7909U|IECEX File No. IECEXTUR16.0036U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|Bureau Veritas Approved|CE Certified|DNV-GL Approved|EAC CertifiedSKU #2444084Part Number #1547650000UNSPSC39121410UPC04050118462876
Image provided may only be a representation of final product and may include optional equipment
