Part Number # CR306F002
SKU # 2444223
CR306F002
ABB CR306F002
Part Number # CR306F002
SKU # 2444223
$3338.76 / Each
Typical price:$6312.00 / Each
ABB CR306F002 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | CR306F002 |
| SKU #: | 2444223 |
| Amperage Rating: | 135 A |
| Coil Voltage: | 115 to 120 V AC, 115 to 120 VAC |
| Dimensions: | 14 in L x 10 in W x 9.88 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Temperature: | -20 to 70 deg C |
| Overload Relay: | 3-Leg Block/Thermal |
| Phase: | 3 |
| Reset Type: | Manual |
| Series: | 300 Line |
| Type: | Full Voltage Non-Combination Non-Reversing |
| Connection type: | Saddle Clamp |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121521 |
| UPC: | 00783166361672 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3338.76 / Each
Typical price:$6312.00 / Each
Quantity:
ABB CR306F002
Brand: ABB
Part Number: CR306F002
Additional Description: ABB -CR306F002 STARTER
Catalog Description: CR306, Three-Phase Magnetic Starters. NEMA Size: 4. Open Type. Motor full load current should not exceed continuous ampere rating of the starter.
CR306F002 Application
Motor Control Centers, Custom Type Control Panels and Switchgear Equipment ApplicationsCR306F002 Includes
Holding Interlock and Pressure Terminals and 3-Leg Block Type Overload RelayCR306F002 Item Features
- Has an encapsulated coil and a 3 leg overload relay to protect against overloads in all phases
- Tool less contactor disassembly allows quick access for inspection and maintenance
- Current carrying contact tips are weld resistant silver cadmium oxide
- Visual trip indicator with manual reset - to avoid surprise restarts
- Manual weld check provides a convenient test against welding of overload relay contacts
- 2:1 adjustable full-load amps with tactile feedback dial
- Built-in thermal memory to prevent hot motor restarts
- Protection against complete phase current loss
- +/- 2% accuracy, +/- 2% repeatability, self powered at 50% of minimum current range
- Saddle clamp terminal accommodate ring, spade and stripped wire leads and carry permanent stamped in identification
CR306F002 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA CertifiedSKU #2444223Part Number #CR306F002UNSPSC39121521UPC00783166361672

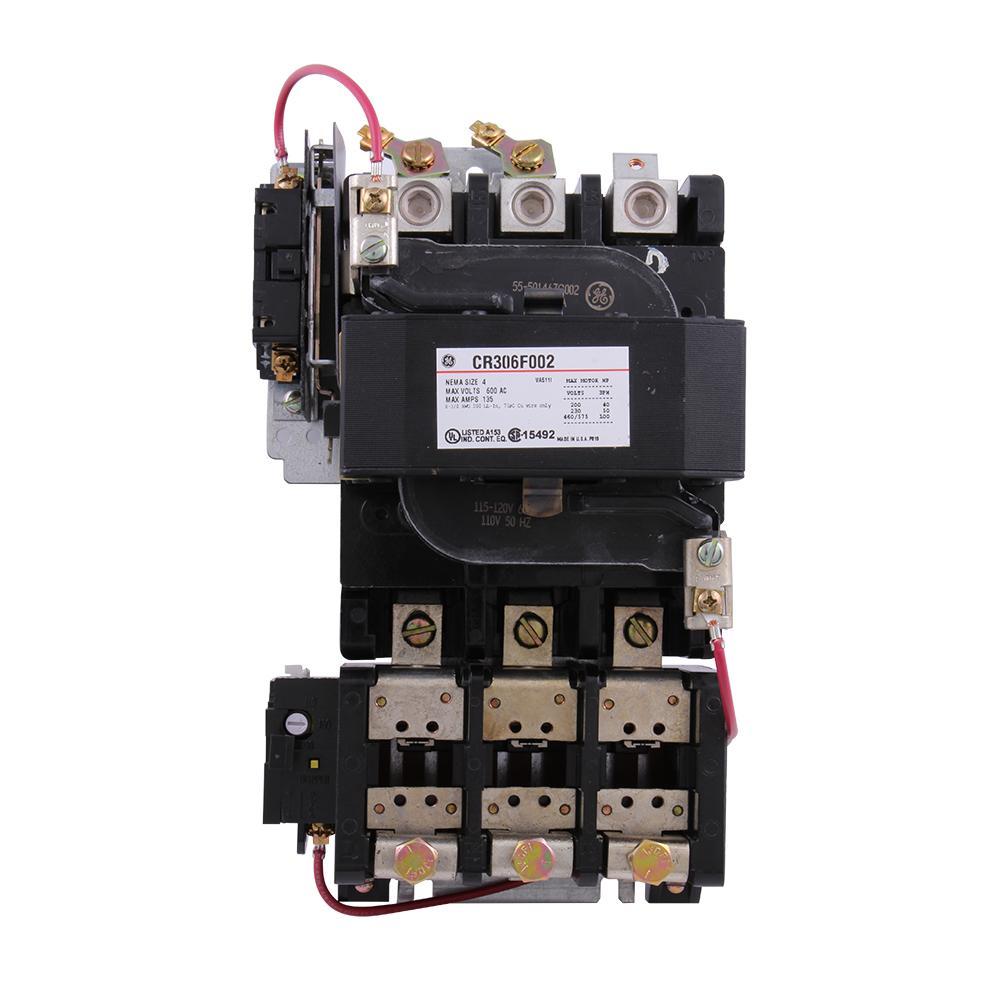

Image provided may only be a representation of final product and may include optional equipment
