2682190000
Weidmuller 2682190000
Part Number # 2682190000
SKU # 2444322
$737.44 / Each
Weidmuller 2682190000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2682190000 |
| SKU #: | 2444322 |
| Connector Type: | (1) 6-Pin Removable Terminal Block |
| Enclosure Type: | IP30 |
| Environmental Conditions: | -40 to 85 deg C Storage Temperature, 5 to 95% Humidity |
| Network Type: | Fast EtherNet |
| Port Type: | (24) RJ45 10/100BaseT(X) |
| Protocol: | IEEE 802.3/IEEE 802.3u/IEEE 802.3x Flow Control |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Type: | Unmanaged |
| Country of origin: | TW |
| Height: | 6.063 in |
| Memory: | 1 Mbit |
| Power supply: | 0.39 A at 24 V DC |
| Switching capacity: | 4.8 Gbps |
| Width: | 3.795 in |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 43222612 |
| UPC: | 04050118692525 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$737.44 / Each
Quantity:
- Weidmuller EcoLine Network Switch, Unmanaged, (24) RJ45 10/100BaseT(X) Port, 4.8 Gbps Switching, Memory: 1 Mbit, IEEE 802.3/IEEE 802.3u/IEEE 802.3x Flow Control Protocol, Network: Fast Ethernet, (1) 6-Pin Removable Terminal Block Connector, 0.39 A at 24 V DC Supply, IP30 Enclosure, DIN Rail Mounting, 3.795 in Width, 6.063 in Height, -40 to 75 deg C, Environmental Conditions: -40 to 85 deg C Storage Temperature, 5 to 95% Humidity
2682190000 Item Features
- Huge variety of port count and media type enable a wide range of applications (5 to 24 ports)
- Models supporting gigabit Ethernet including jumbo frame support for applications with high demand on bandwidth and latency
- Suitable for use in harsh industrial environment thanks to rugged design and wide operating temperature range of -40 to 75 deg C
- Reliable operation due to redundant voltage inputs, fault relay and LED diagnostics
2682190000 Standards
cULus Listed|EAC Compliant|RoHS Compliant|UL File No.E141197SKU #2444322Part Number #2682190000UNSPSC43222612UPC04050118692525

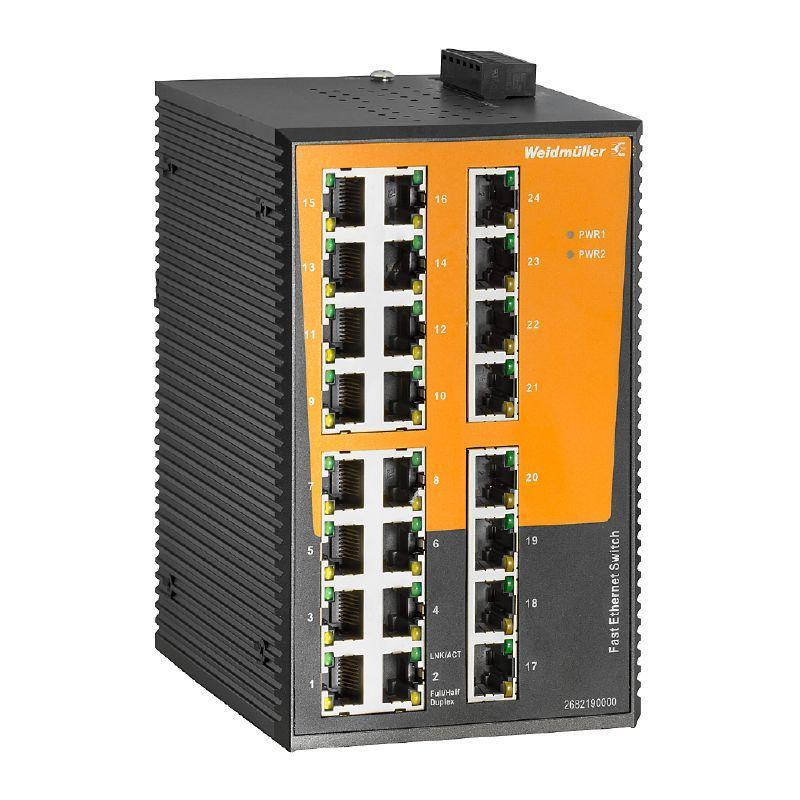

Image provided may only be a representation of final product and may include optional equipment
