Weidmuller 1241290000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1241290000 |
| SKU #: | 2444331 |
| Connector Type: | (2) Removable 6-Pin Terminal Block |
| Enclosure Type: | IP30 |
| Environmental Conditions: | 5 to 95% Humidity |
| Interface: | (10) RJ45/DIP Switch/Alarm Contact |
| Network Type: | Fast/Gigabit EtherNet |
| Port Type: | 10/100/1000BASE-T(X)/RJ45 |
| Protocol: | IGMPv1/v2/GVRP/SNMPv1/v2c/v3/DHCP Server/Client/BOOTP/TFTP/SNTP/SMTP/RARP/GMRP/LACP/RMON/HTTP/HTTPS/Telnet//SSH/SNMP Inform/Modbus/TCP/LLDP/IEEE 1588 PTP/IPv6 |
| Temperature Rating (Degrees F): | -10 to 60 deg C |
| Type: | Managed |
| Country of origin: | TW |
| Height: | 135 mm |
| Memory: | 1 MB |
| Mounting type: | DIN Rail/Panel |
| Power supply: | 12 to 45 V DC |
| Switching capacity: | 7.4 Gbps |
| Width: | 80.2 mm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 43223331 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Weidmuller Network Switch, Managed, (10) RJ45/DIP Switch/Alarm Contact Interface, 10/100/1000BASE-T(X)/RJ45 Port, 7.4 Gbps Switching, Memory: 1 MB, IGMPv1/v2/GVRP/SNMPv1/v2c/v3/DHCP Server/Client/BOOTP/TFTP/SNTP/SMTP/RARP/GMRP/LACP/RMON/HTTP/HTTPS/Telnet//SSH/SNMP Inform/Modbus/TCP/LLDP/IEEE 1588 PTP/IPv6 Protocol, Network: Fast/Gigabit EtherNet, (2) Removable 6-Pin Terminal Block Connector, 12 to 45 V DC Supply, IP30 Enclosure, DIN Rail/Panel Mounting, 80.2 mm Width, 135 mm Height, -10 to 60 deg C, Environmental Conditions: 5 to 95% Humidity
1241290000 Item Features
- Managed fast Ethernet versions in a high quality metal housing (IP30)
- Managed power over Ethernet(PoE) switch with 6 fast Ethernet ports, 4 of them PoE + ports
- Versions with 10 or 18-ports and gigabit uplink ports
- Full gigabit switch with 9-ports
- Supports all standard TCP/IP based protocols in industrial networks (for example Ethernet/IP, Modbus/TCP)
- Integrated redundancy mechanisms (recovery time = 20 ms) increase the reliability in network ring structures
1241290000 Standards
RoHS Compliant|REACH Compliant|cULus Listed|cULusEX Listed|CE Certified|EAC Certified|FCC Approved|DNV-GL Approved|EMC Approved|Class I Div. 2 Groups A, B, C and D/ATEX Zone 2 Ex nA IIC T4 GcSKU #2444331Part Number #1241290000UNSPSC43223331UPC

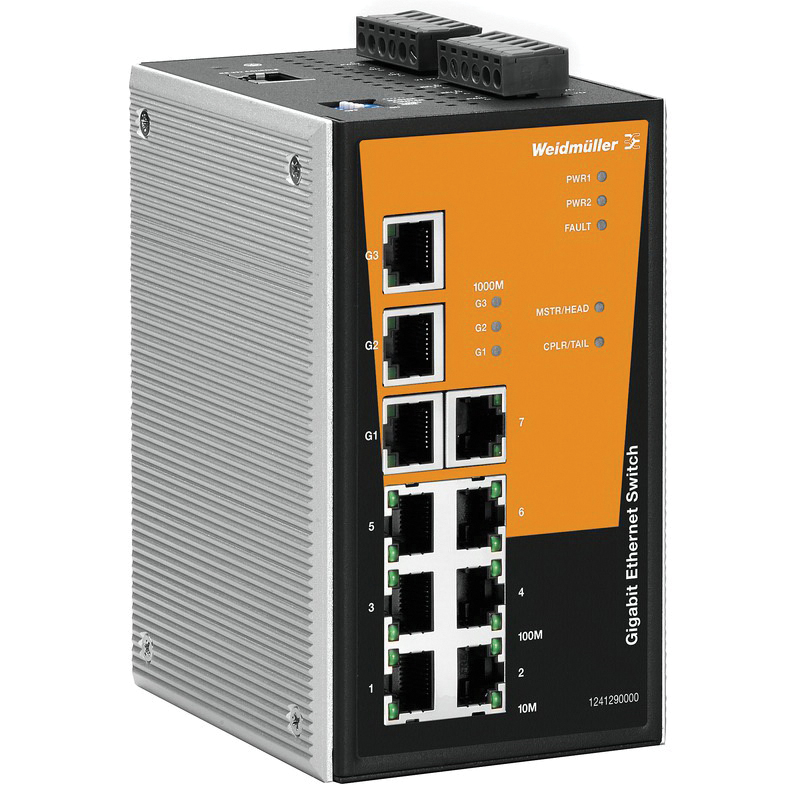

Image provided may only be a representation of final product and may include optional equipment
