LC2DT25E7

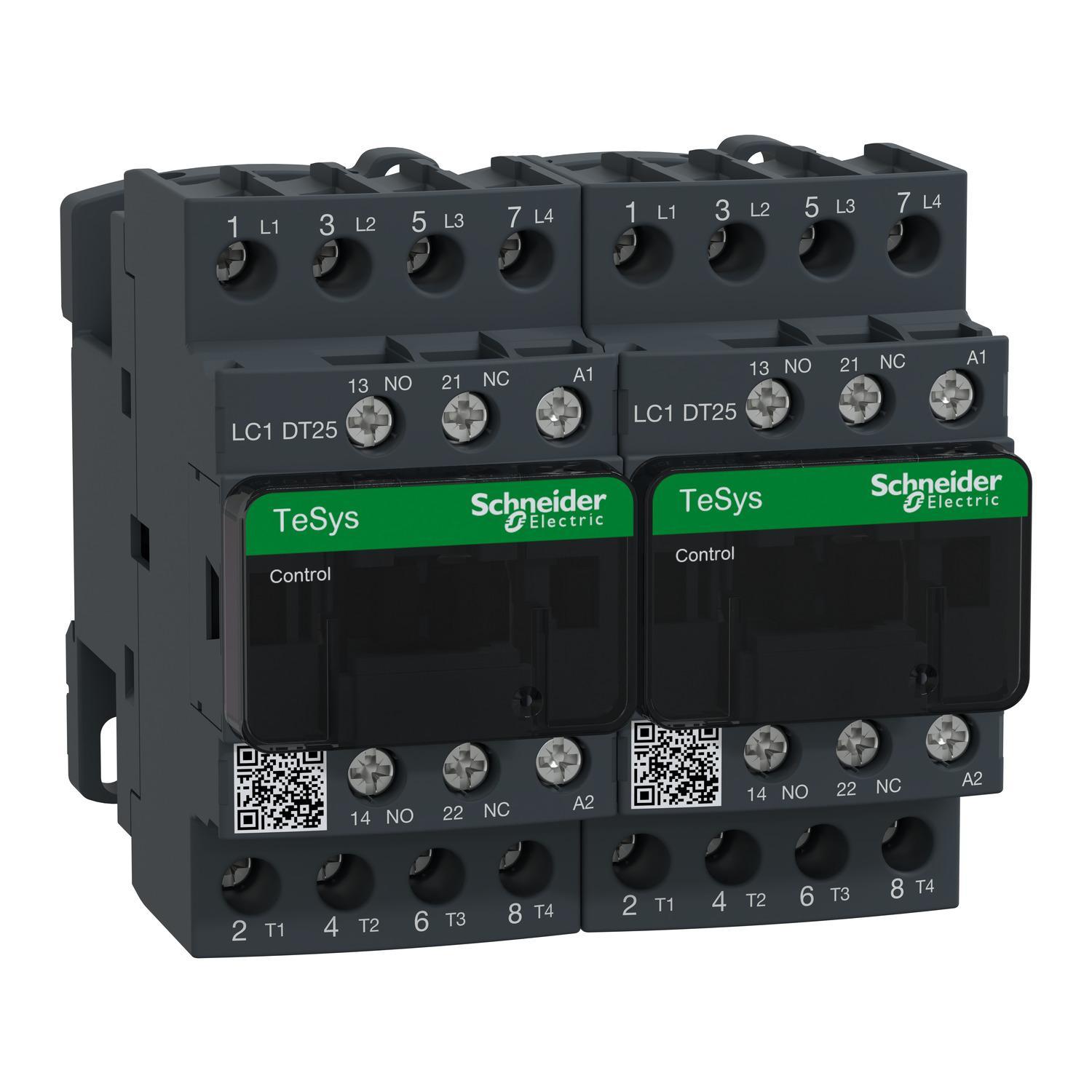

Schneider Electric LC2DT25E7
Part Number # LC2DT25E7
SKU # 2444360
$416.38 / Each
Schneider Electric LC2DT25E7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2DT25E7 |
| SKU #: | 2444360 |
| Coil Voltage: | 48 VAC |
| Contact Configuration: | 4NO |
| Dimensions: | 3.35 in H x 3.54 in W x 3.54 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1 NO + 1 NC |
| Number of Poles: | 4 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -40 to 140 deg F |
| Series: | LC2D Series |
| Size: | 3.35 in H x 3.54 in W x 3.54 in D |
| Terminal Type: | Screw Clamp |
| Type: | Changeover Contactor |
| Wattage: | 1.56 W |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Mounting type: | Front/Plate Rail |
| Power factor: | 70 VA |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03389110245219 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$416.38 / Each
Quantity:
- Schneider Electric LC2DT25E7, Changeover Contactor, LC2D Series, 48 VAC Coil, 25 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, 1.56 W Wattage, 4NO Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, Power Factor: 70 , Screw clamp Connection, 3.35 in H x 3.54 in W x 3.54 in D Size, Screw Clamp Terminal, IP20 Enclosure, 3600 cycles Operating Cycles, -40 to 140 deg F Operating, Front/Plate Rail Mounting, 3.35 in H x 3.54 in W x 3.54 in D Dimensions
LC2DT25E7 Application
For AC-1 load applications up to 25A/690VLC2DT25E7 Item Features
- The TeSys D contactors and overload relays are the largest selling line of contactors and starters in the world
- They offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry
- TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps
- Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications
- New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil
- TeSys D Green contactor simplify your maintenance services with 90% less references needed.TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50
- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Three levels of ratings: Available at 100 kA on systems with fuses, up to 600 volts
- Available at 65 kA on systems with circuit breakers, up to 480 volts and up to 32 amps
- Available at 100 kA on systems with circuit breakers, up to 480 volts and greater than 32 amps
- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- 3-pole and 4-pole contactor versions available
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- TeSys D contactors can be panel mounted with screws or DIN rail mounted
- Easily installed accessories
- Auxiliary contact blocks with serrated wiping action
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
LC2DT25E7 Standards
UL;CSA;RINA;GOST;CCC;DNV;LROS (Lloyds register of shipping);GL;BV;UKCA;CBSKU #2444360Part Number #LC2DT25E7UNSPSC39121529UPC03389110245219
