Part Number # 9T17A0013
SKU # 2444538
Image Disclaimers Message
9T17A0013
ABB 9T17A0013
Part Number # 9T17A0013
SKU # 2444538
ABB 9T17A0013 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T17A0013 |
| SKU #: | 2444538 |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60 Hz |
| Phase: | 3 |
| Primary Voltage: | 480 VAC |
| Secondary Voltage: | 208Y/120 VAC |
| Series: | 9T |
| Temperature Rating (Degrees F): | 150 deg C |
| Type: | Type QL Dry Vented |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121001 |
| UPC: | 00783173900321 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T17A0013
Brand: ABB
Part Number: 9T17A0013
Additional Description: ABB -9T17A0013 (N) 3A,30KVA,480-208Y,150C,3R,SC24,90A, DOE NON-CANCELABLE, NON-RETURNABLE

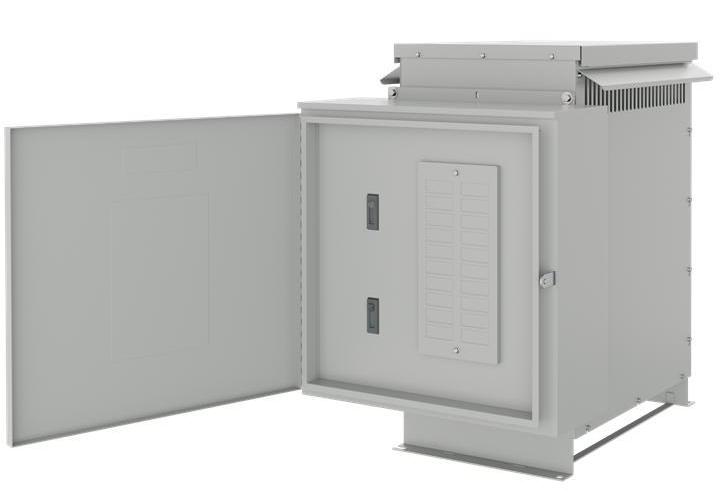

Catalog Description: ABB's Servicenter™ Three-Phase Integral Transformer and Distribution Panel system meets DOE 2016 efficiency standards. The Servicenter system comes equipped with the rightly sized circuit breakers for both the primary and secondary transformer windings. Qualified to the seismic requirements of IEEE-693-2005 and IBC-2021 and CBC 2022. Available with aluminum or copper windings. The transformer utilizes a UL recognized 220 °C insulation system. Quiet Performance as core and coil assemblies are mounted on rubber isolation pads to reduce noise. Robust packaging with top and side protection protects against shipping damage. Accessible mounting flanges with front/back slotted mounting holes make installation easier. NEMA 3R enclosure when the included rain shields are installed. Clear, comprehensive documentation and labeling. The Servicenter system is UL Listed.
9T17A0013 Application
Vending or Concession Area, Office Building, Assembly Line, Mining Application, Parking Lot, Light Industrial Area, Warehouse, Construction Site, Electrical Distribution and Control Applications9T17A0013 Item Features
- Quiet performance
- Core and coil assemblies are mounted on rubber isolation pads to reduce noise
- Bolted coil terminations
- 1-piece front/back is easily removable for service
- Copper ground strap
- Robust packaging with top and side protection protects against shipping damage
- Accessible mounting flanges with front/back slotted mounting holes make installation easier
- 100% factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise
- Clear, comprehensive documentation and labeling
9T17A0013 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|UL Recognized|ANSI Specified|IEEE-693-2005|IBC-2012|CBC 2013|DOE 2016SKU #2444538Part Number #9T17A0013UNSPSC39121001UPC00783173900321
