Part Number # SH30553P12A2000
SKU # 2444540
Image Disclaimers Message
SH30553P12A2000

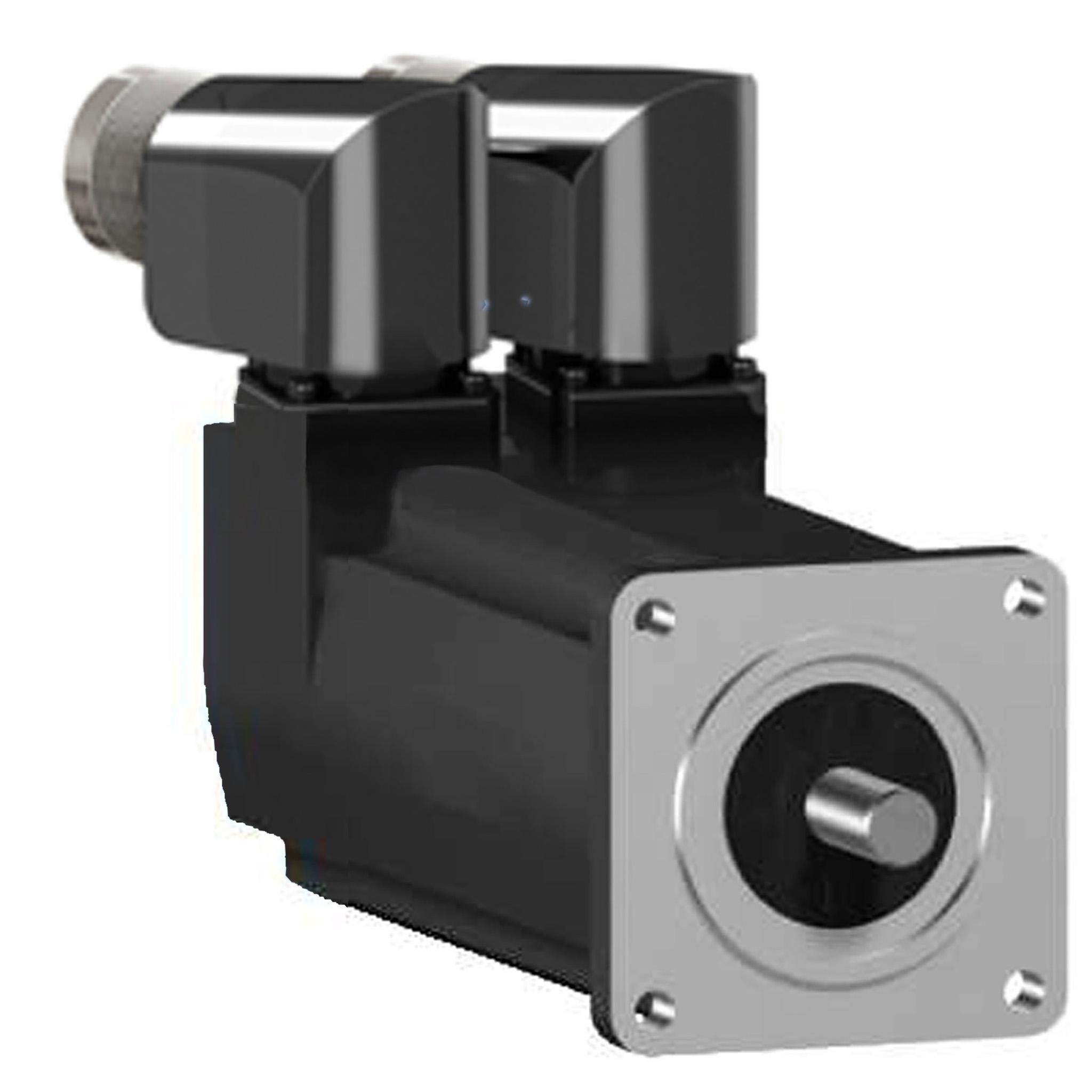

Schneider Electric SH30553P12A2000
Part Number # SH30553P12A2000
SKU # 2444540
$2010.79 / Each
Schneider Electric SH30553P12A2000 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | SH30553P12A2000 |
| SKU #: | 2444540 |
| Amperage Rating: | 6.5 A |
| Dimensions: | 2.16 in W x 6.95 in D x 3.72 in H |
| Enclosure Type: | IP54/IP65 |
| Horsepower: | 1.2 hp |
| Series: | SH3 055 |
| Shaft Size: | 0.35 in Dia x 0.79 in L |
| Special Features: | Synchronous Permanent Magnet AC Motors |
| Speed: | 9000 rpm |
| Temperature Rating (Degrees F): | -4 to 104 deg F |
| Torque Rating: | 10 to 9.12 in-lbf |
| Type: | 3-Phase Multiturn Parallel Keyed Shaft End Natural Convection |
| Country of origin: | US |
| Insulation class: | Class F |
| Mounting type: | Flange |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121021 |
| UPC: | 03606485295602 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2010.79 / Each
Quantity:
- Schneider Electric Square D Lexium 52 Standard Servo Motor, 3-Phase Multiturn Parallel Keyed Shaft End Natural Convection, Series: SH3 055, Synchronous Permanent Magnet AC Motors Special Features, 1.2 hp, 115 to 480 V, 6.5 A, 9000 rpm Speed, IP54/IP65 Enclosure, 0.35 in Dia x 0.79 in L Shaft, 10 to 9.12 in-lbf Torque, Flange Mounting, -4 to 104 deg F, Insulation Class: Class F, 2.16 in W x 6.95 in D x 3.72 in H Dimensions
SH30553P12A2000 Application
General Machine Control, Packaging Machine Automation and Handling ApplicationsSH30553P12A2000 Item Features
- Overload capacity - high peak current (up to 4X the continuous current)
- Increases the range of movement
- Power density - the compact size of the servo drives offers maximum efficiency in a small space
- External braking resistors, when the Servo Motor has to be braked frequently
- Line chokes for improved protection against over voltages to reduce harmonic distortion of the current
- Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3
- Without holding brake
- 10 in-lbf at 115 V 3 ph, 9.74 in-lbf at 230 V 3 ph, 9.29 in-lbf at 400 V 3 ph and 9.12 in-lbf at 480 V 3 ph
SH30553P12A2000 Standards
CE Certified|EN/IEC 60034-5|Green Premium Listed|REACH Compliant|UL 1004|WEEE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2444540Part Number #SH30553P12A2000UNSPSC39121021UPC03606485295602
