LSK1A-8A

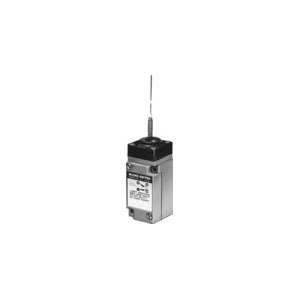

Honeywell LSK1A-8A
Part Number # LSK1A-8A
SKU # 2444624
$3739.00 / 10Each
Honeywell LSK1A-8A Key Features
| Brand: | Honeywell |
|---|---|
| Part Number # : | LSK1A-8A |
| SKU #: | 2444624 |
| Action: | Snap Hook |
| Actuator: | Wobble Cat Whisker |
| Amperage Rating: | 10 A |
| Connection type: | 1/2-14 NPT |
| Contact Configuration: | 1CO SPDT, 1NO-1NC, SPDT |
| Country of origin: | US |
| Enclosure Type: | NEMA 1/3/4/4X/6/6P/12/13/IP65/IP66/IP67 |
| Material: | Die Cast Zinc |
| Mounting type: | Chassis |
| Number of Poles: | 1 |
| Operating Temperature: | -12 to 93 deg C |
| Series: | HDLS |
| Size: | 3.2 in H x 1.62 in W x 1.75 in D |
| Type: | Heavy Duty |
| Manufacturer Name: | Honeywell |
| UNSPSC: | 39122213 |
| UPC: | 00078454929350 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3739.00 / 10Each
Quantity:
- Honeywell Limit Switch, Heavy Duty, Series: HDLS, 600 VAC, 250 VDC, 10 A, 1CO SPDT Contact Configuration, 1 Pole, Snap Hook Action, 1/2-14 NPT Connection, NEMA 1/3/4/4X/6/6P/12/13/IP65/IP66/IP67 Enclosure, Chassis Mounting, 3.2 in H x 1.62 in W x 1.75 in D Size, -12 to 93 deg C Operating, Die Cast Zinc
LSK1A-8A Application
For machine tools, material handling, packaging, presses, pulp and paper, welding and PLC interfaceLSK1A-8A Item Features
- Field adjustable operating modes, for reduced inventory
- Convenience of on-the-spot adjustment instructions
- Captive head and body screws
- Designed to withstand seismic shock
- 2 in pretravel
- 5 oz max operating force
- 5.5 in cat whisker actuator
- Silver contact
- Plug-in body
LSK1A-8A Standards
CE Marked|CCC EN60947-1/EN60947-5-1|CSA Certified|UL ListedSKU #2444624Part Number #LSK1A-8AUNSPSC39122213UPC00078454929350
