Part Number # AHCL1530R
SKU # 2445273
Image Disclaimers Message
AHCL1530R

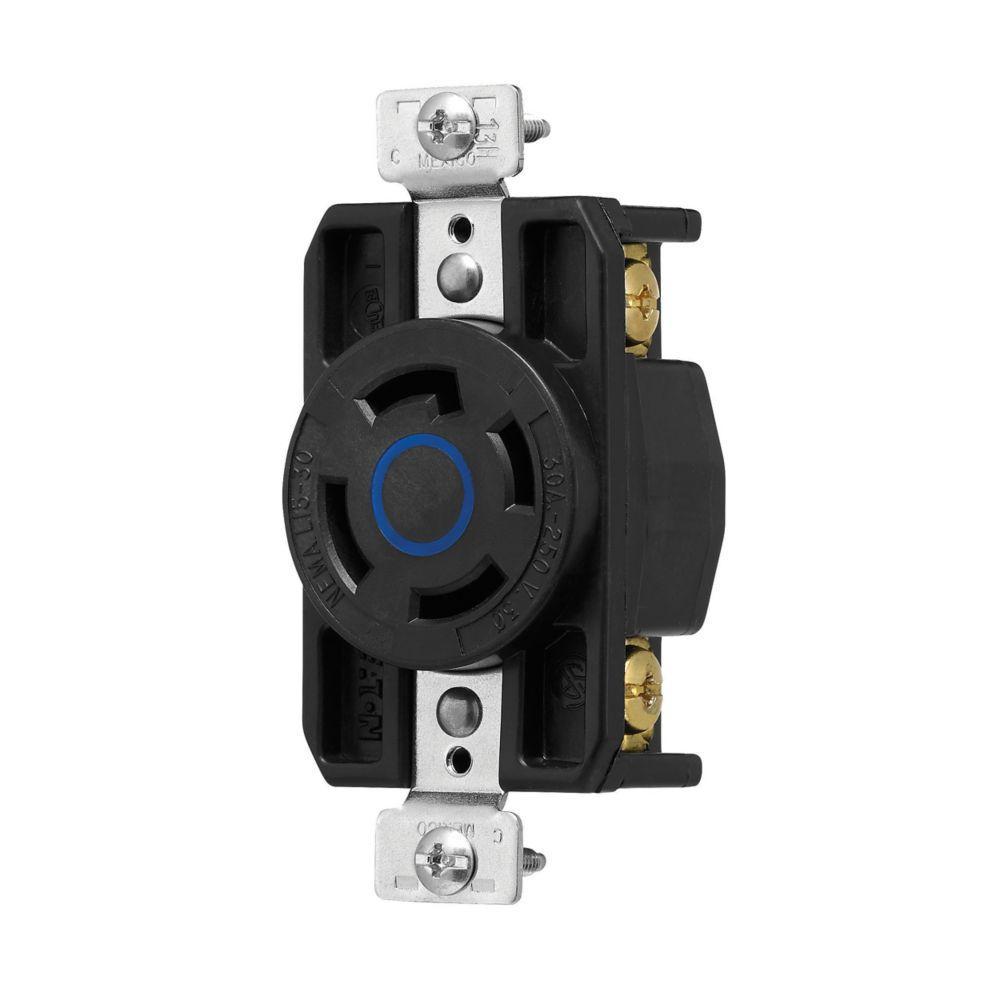

Arrowhart AHCL1530R
Part Number # AHCL1530R
SKU # 2445273
$780.50 / 10Each
Arrowhart AHCL1530R Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AHCL1530R |
| SKU #: | 2445273 |
| Amperage Rating: | 30 A |
| Cord Diameter: | 0.375 to 1.156 in |
| Dimensions: | 1.63 in L x 1.06 in W x 3.64 in H |
| NEMA Rating: | L15-30 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 158 deg F |
| Terminal Type: | Back/Side Wire Clamp |
| Type: | Color Coded Single Ultra Grip |
| Color: | Black/Blue |
| Material: | Glass Filled Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121403 |
| UPC: | 00032664758430 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$780.50 / 10Each
Quantity:
- EATON Arrow Hart Locking Receptacle, Color Coded Single Ultra Grip, 250 V AC, 30 A, 3 Pole, 4 Wires, L15-30 NEMA Rating, Industrial Grade, 0.375 to 1.156 in Diameter Cord, -40 to 158 deg F, Back/Side Wire Clamp Terminal, Glass Filled Nylon, Black/Blue, 1.63 in L x 1.06 in W x 3.64 in H Dimensions
AHCL1530R Application
Industrial Facilities and FactoriesAHCL1530R Item Features
- Voltage color coding
- Rugged glass filled nylon body
- Clearly marked rating, NEMA configuration and approval listings on receptacle face
- 1-piece brass contacts offer superior performance and minimal heat rise
- Back and side wiring terminal clamps for easy, secure wiring
- https://www.youtube.com/watch?v=DG80BN8eVi8
AHCL1530R Standards
NOM,CSA Certified,UL Listed,Federal Specification Classification 6233 01,RoHS Compliant,NAFTASKU #2445273Part Number #AHCL1530RUNSPSC39121403UPC00032664758430
