1025010000
Weidmuller 1025010000
Part Number # 1025010000
SKU # 2446047
$306.52 / Each
Weidmuller 1025010000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1025010000 |
| SKU #: | 2446047 |
| Type: | Terminal Box |
| Depth: | 3.543 in |
| Width: | 5.905 in |
| UNSPSC: | 39121327 |
| UPC: | 04032248745227 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$306.52 / Each
Quantity:
Weidmuller 1025010000
Brand: Weidmuller
Part Number: 1025010000

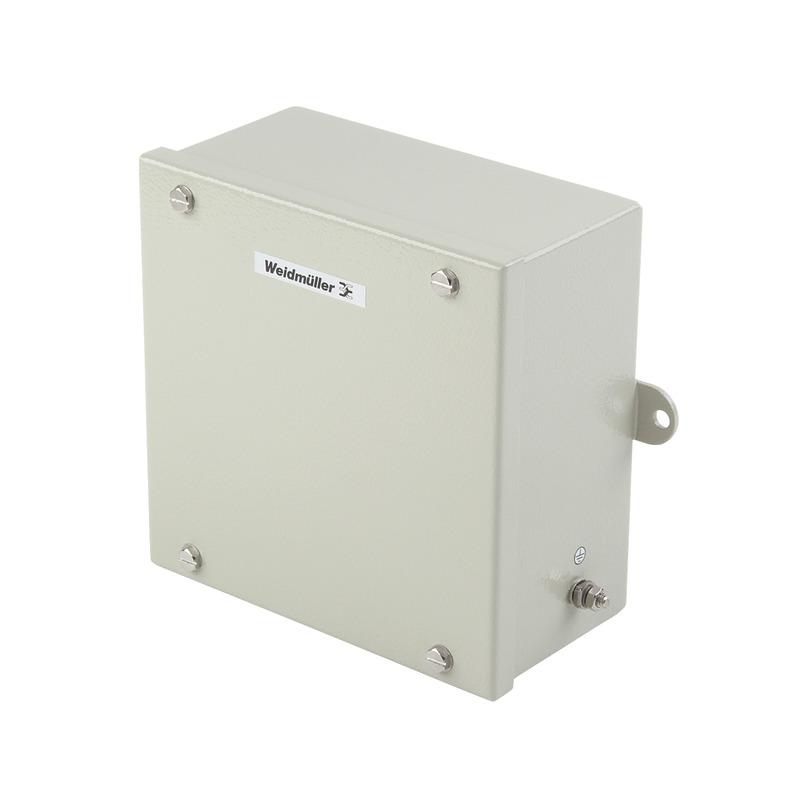

Additional Description: WEID-1025010000 KLIPPON STB 2.1 MS HT METAL HOUSING, KLIPPON STB (SMALL TERMINAL BOX), SHEET STEEL ENCLOSURE, 150 X 190 X 90 MM
Catalog Description: Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
1025010000 Item Features
- Ideally suited for the energy, process and transportation industries, the Klippon STB enclosure series is the perfect complement to our existing Klippon enclosure portfolio
- Comes with a standard seal that is resistant to high temperatures - extended temperature range of -60 deg C to 120 deg C
- Flexible options for fastening the internal mounting rail
- IP66 protection
- Secure, permanent function of the seal is ensured by seal compression protection
- Earthing stud in the cover and base of the enclosure
- Laser cut weld seams for increased quality
- Already welded-on mounting feet guarantee optimum enclosure installation
1025010000 Standards
RoHS Compliant|CE Certified|EAC Certified|LLOYDSREGSKU #2446047Part Number #1025010000UNSPSC39121327UPC04032248745227
Image provided may only be a representation of final product and may include optional equipment
