Part Number # DT365FRKLC
SKU # 2446091
Image Disclaimers Message
Crouse Hinds DT365FRKLC Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | DT365FRKLC |
| SKU #: | 2446091 |
| Amperage Rating: | 400 A |
| Contact Form: | 3 Form C 3PDT, TPDT |
| Dimensions: | 92.49 in H x 50.18 in W x 15.61 in D |
| Enclosure Type: | NEMA 3R |
| Horsepower: | 350 hp |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 3 |
| Series: | K Series |
| Short Circuit Current Rating (kA): | 100 kA |
| Terminal Type: | Box Lug/Pressure Screw/Quick-Connect |
| Type: | Fusible Upper |
| Country of origin: | US |
| Mounting type: | Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | MISC |
| UPC: | 00786685131245 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

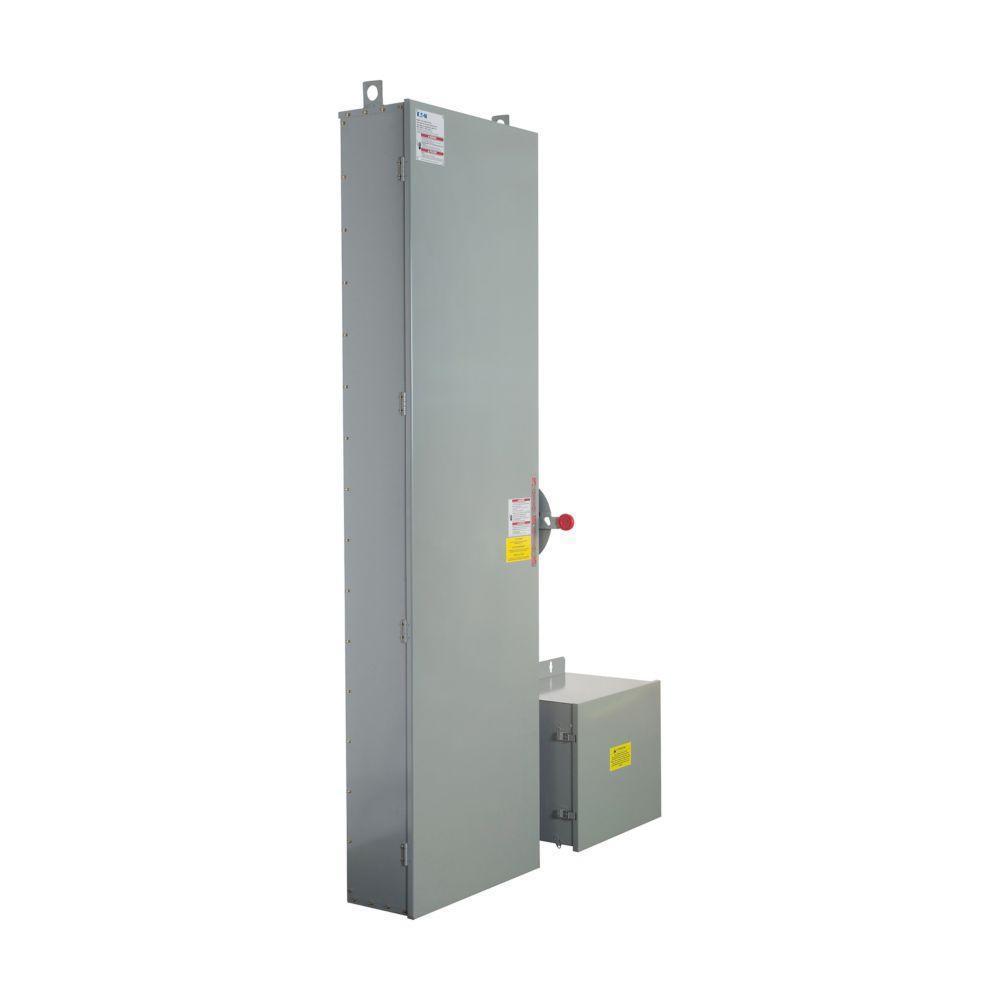

- EATON Cam-Lok Heavy Duty Safety Switch, Fusible Upper, Series: K Series, 600 V AC, 400 A, 350 hp, 3 Phase, 3 Pole, 3 Wires, 100 kA Short Circuit Current Rating, 3 Form C 3PDT, NEMA 3R, Panel Mount, Box Lug/Pressure Screw/Quick-Connect Terminal, 92.49 in H x 50.18 in W x 15.61 in D
DT365FRKLC Application
Commercial, Institutional and Industrial ApplicationsDT365FRKLC Item Features
- Visible double break rotary blade mechanism offers two points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
- Clearly visible, palm fitting red handle allows users to easily see the handle position (ON or OFF) from a distance and provides for easy operation
- Triple padlocking capability increases personnel safety
- Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
- Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
- 250 hp at 480 VAC, 350 hp at 600 VAC 3-phase, 50 hp at 250 VDC
- https://www.youtube.com/watch?v=U4DudPZw18A
DT365FRKLC Standards
UL ListedSKU #2446091Part Number #DT365FRKLCUNSPSCMISCUPC00786685131245
