Part Number # XB4FW36B5
SKU # 2446302
Image Disclaimers Message
XB4FW36B5

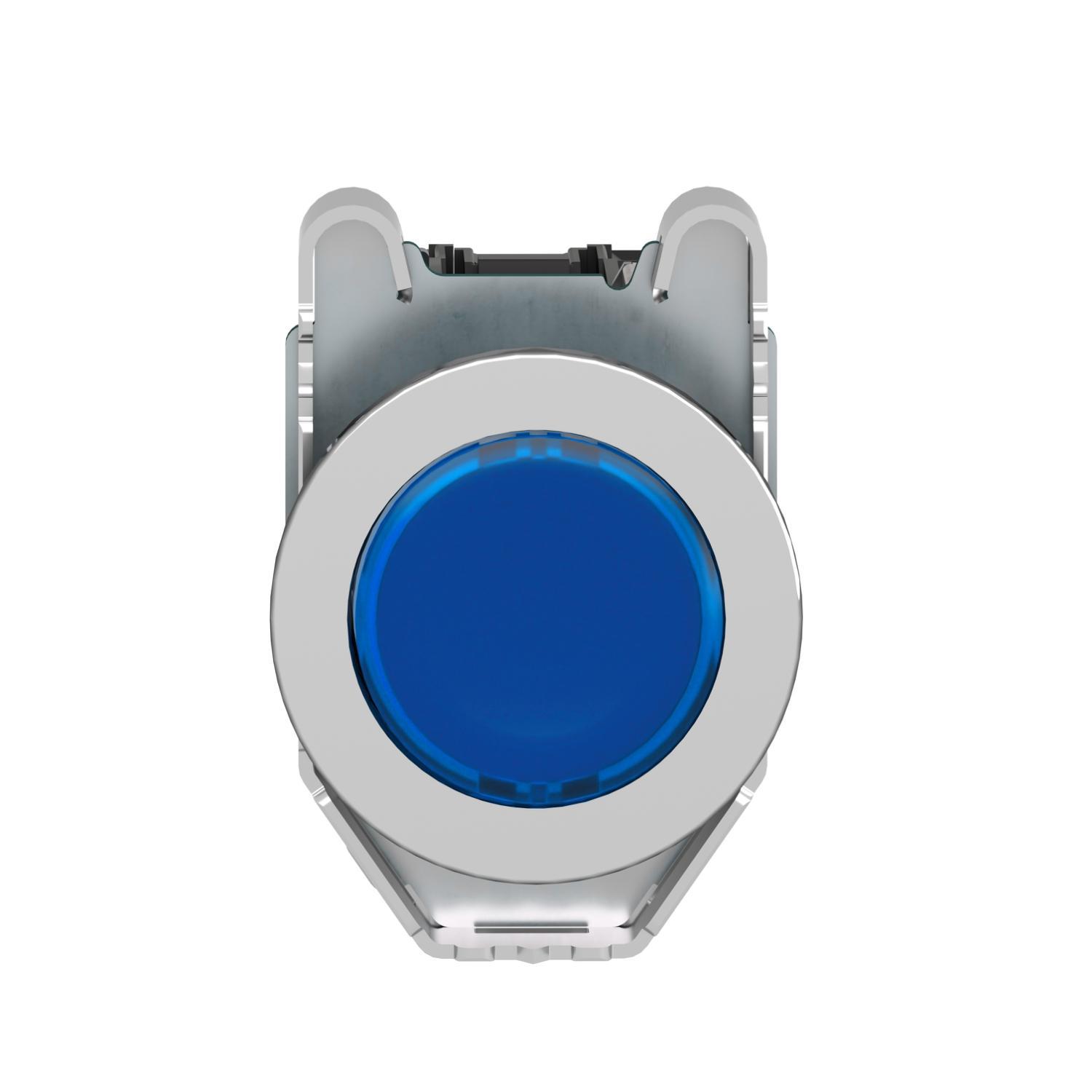

Schneider Electric XB4FW36B5
Part Number # XB4FW36B5
SKU # 2446302
$94.50 / Each
Typical price:$119.30 / Each
Schneider Electric XB4FW36B5 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XB4FW36B5 |
| SKU #: | 2446302 |
| Actuator: | Blue Flush |
| Bezel/Housing: | Chromium Plated Metal |
| Contact Configuration: | 1NO-1NC |
| Contact Rating: | 3 A |
| Enclosure Type: | IP66/IP67/IP69/IP69K |
| Environmental Conditions: | -40 to 158 deg F Ambient Air Operating Temperature |
| Lamp Type: | Integral LED |
| Operator Type: | Spring Return |
| Series: | XB4 |
| Size: | 1.2 in Dia x 1.44 in W x 2.17 in D x 1.85 in H |
| Type: | Illuminated Round |
| Connection type: | Screw Clamp |
| Mounting type: | Flush |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 03606489580759 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$94.50 / Each
Typical price:$119.30 / Each
Quantity:
- Schneider Electric Harmony Pushbutton Complete Unit, Illuminated Round, Series: XB4, 1.2 in Dia x 1.44 in W x 2.17 in D x 1.85 in H Size, 1NO-1NC Contact Configuration, Slow Break Contact, 3 A Contact, Integral LED Lamp, Bezel/Housing: Chromium Plated Metal, Blue Flush Actuator, Screw Clamp Connection, IP66/IP67/IP69/IP69K Enclosure, Flush Mounting, Environmental Conditions: -40 to 158 deg F Ambient Air Operating Temperature
XB4FW36B5 Application
Industry, Machine Manufacturers, Control System Panel Builders and Service Sector and Infrastructure, Energy Distribution Panel Builders, Public Works, Building and Airport ApplicationsXB4FW36B5 Item Features
- Compatible with improved color heads
- Universal LED block to be used for all colors
- Quick and easy assembly and disassembly
- Excellent mechanical connection with operator head
- Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- https://youtu.be/9zC9OPsk2fw
XB4FW36B5 Standards
CCC Certified|EAC Certified|CSA C22.2 14|EN/IEC 60947-5-1|EN/IEC 60947-5-4|UL File No. 508|EN/IEC 60947-1|JIS C8201-5-1CE|JIS C8201-1|RoHS Compliant|REACH Compliant|Green Premium Listed|PROP65: This product can expose you to chemicals including, Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.SKU #2446302Part Number #XB4FW36B5UNSPSC39122216UPC03606489580759
