Part Number # 2STFSD747518SS
SKU # 2446387
Image Disclaimers Message
Brand: Hammond Manufacturing
2STFSD747518SS
Hammond Manufacturing 2STFSD747518SS
Part Number # 2STFSD747518SS
SKU # 2446387
$18434.69 / Each
Typical price:$34621.25 / Each
Hammond Manufacturing 2STFSD747518SS Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 2STFSD747518SS |
| SKU #: | 2446387 |
| Finish: | Brushed |
| NEMA Rating: | NEMA 3R/4/4X/12/13 |
| Panel Size: | 68 in W x 68 in H |
| Series: | 2STFSD |
| Type: | 2-Door Sloped Top |
| Color: | Natural |
| Country of origin: | CA |
| Depth: | 18 in |
| Height: | 68 in |
| Material: | 304 Stainless Steel |
| Mounting type: | Freestanding |
| Width: | 75 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121301 |
| UPC: | 00062398079906 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$18434.69 / Each
Typical price:$34621.25 / Each
Quantity:

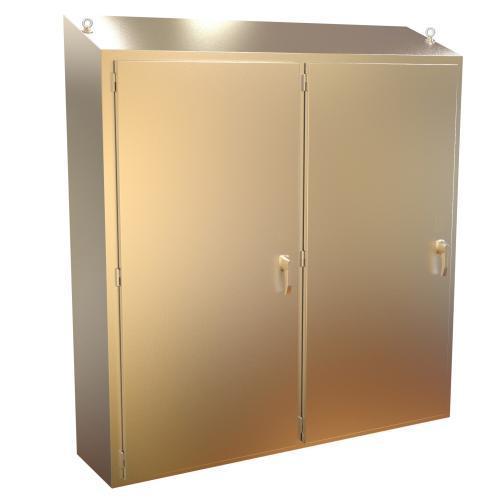

- Hammond Disconnect Enclosure, 2-Door Sloped Top, Series: 2STFSD, 75 in Width, 18 in Depth, 68 in Height, NEMA 3R/4/4X/12/13, Hinged Cover, 68 in W x 68 in H Panel, Freestanding Mount, 304 Stainless Steel, Brushed, Natural
2STFSD747518SS Application
For used to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for larger applications2STFSD747518SS Item Features
- Formed from 12 ga 304 stainless steel with smooth, continuously welded seams
- Flange trough collar (FTC) around door opening excludes liquids and contaminants
- Heavy duty lifting eyes are anchored into reinforced top corners
- Removable doors are secured with bullet style, heavy duty, lift off hinges
- Formed 10 ga steel inner panel is provided on collar studs
- Panel supports are provided
- Center post is removable, providing easy panel installation
- Heavy duty three-point latching mechanism with heavy duty roller ends is provided for ease of door closing
- Seamless poured in place gasket
- The right hand door on all enclosures is the master door
- Master door handle complete with screwdriver defeater and padlock hasp
- Slave door handle complete with padlock hasp
- A mechanical interlock activated by the master door prevents the auxiliary door from being opened first
- The pre-installed flange cutout provides mounting for disconnect operators (verify compatibility in advance) - interlock hardware included with enclosure
- A provision for mounting fluorescent lighting is provided
- A bonding stud is provided in the door and a grounding stud is provided in the enclosure for each door
- A literature pocket is provided for the inside of the door
- Inner panel is finished in white powder coating
- 20 deg sloped top prevents water from resting on top of enclosure
2STFSD747518SS Standards
CSA Certified|IEC 60529|CE Certified|ECCN: EAR99|RoHS Compliant|UL 508ASKU #2446387Part Number #2STFSD747518SSUNSPSC39121301UPC00062398079906
