Part Number # 855-505/400-1001
SKU # 2446511
Brand: Wago
855-505/400-1001
Wago 855-505/400-1001
Part Number # 855-505/400-1001
SKU # 2446511
$133.57 / Each
Typical price:$144.70 / Each
Wago 855-505/400-1001 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 855-505/400-1001 |
| SKU #: | 2446511 |
| Current Ratio: | 400:5 |
| Frequency Rating: | 50 to 60 Hz |
| Insulation: | E |
| Primary Current: | 400 A |
| Secondary Current: | 5 A |
| Type: | Plug-In |
| Connection type: | Clamp |
| Mounting type: | Plate |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821845881 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$133.57 / Each
Typical price:$144.70 / Each
Quantity:
Wago 855-505/400-1001
Brand: Wago
Part Number: 855-505/400-1001
Additional Description: WAGO-855-505/400-1001 PLUG-IN CURRENT TRANSFORMER; PRIMARY RATED CURRENT: 400 A; SECONDARY RATED CURRENT: 5 A; RATED POWER: 10 VA; ACCURACY CLASS: 1 51289942
Catalog Description: Plug-in current transformer; Primary rated current: 400 A; Secondary rated current: 5 A; Rated power: 10 VA; Accuracy class: 1
855-505/400-1001 Application
Designed for AC network applications855-505/400-1001 Item Features
- Several mounting options available
- Vibration- and shock-resistant
- High mechanical retention forces
- High current-carrying capacity
- Continuous overload of 120 Percent the nominal primary current
855-505/400-1001 Standards
EN 61869-1|EN 61869-2|UL: E356480|RoHS Compliant|CE|UL recognizedSKU #2446511Part Number #855-505/400-1001UNSPSC43232306UPC04050821845881

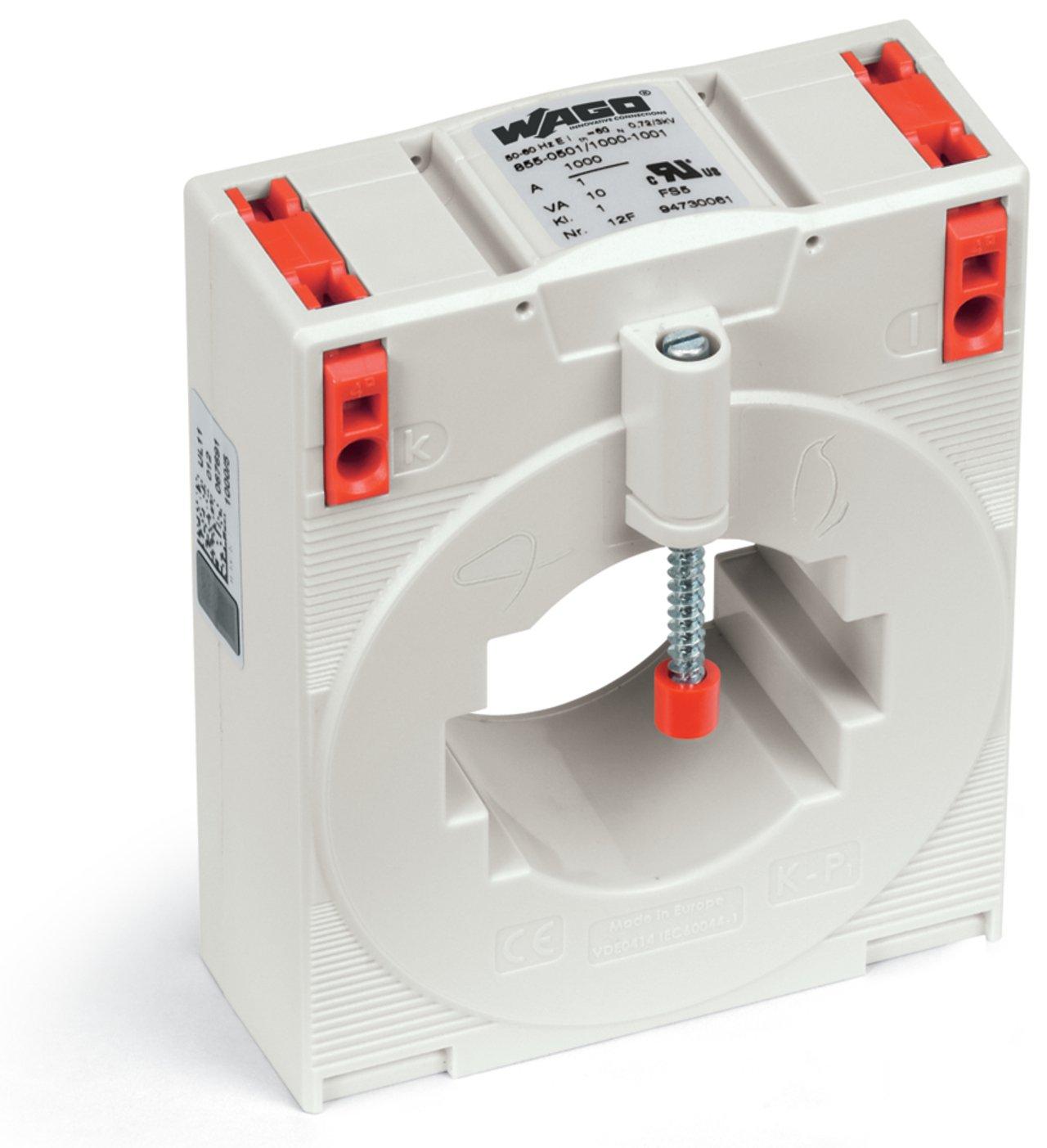

Image provided may only be a representation of final product and may include optional equipment
