1665270000
Weidmuller 1665270000
Part Number # 1665270000
SKU # 2446686
$31.75 / Each
Typical price:$36.55 / Each
Weidmuller 1665270000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1665270000 |
| SKU #: | 2446686 |
| Dimensions: | 18 mm H x 55 mm W x 93.3 mm D |
| Finish: | Powder Coated |
| Size: | SZ 6 |
| Specifications: | IP65 Degree of Protection, 1.2 N-m Tightening Torque, NBR Seal |
| Suitable For Use With: | RockStar Heavy Duty Plug-In Connector, ModuPlug Module System and Hood |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | Standard |
| Country of origin: | CN |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04008190421977 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$31.75 / Each
Typical price:$36.55 / Each
Quantity:

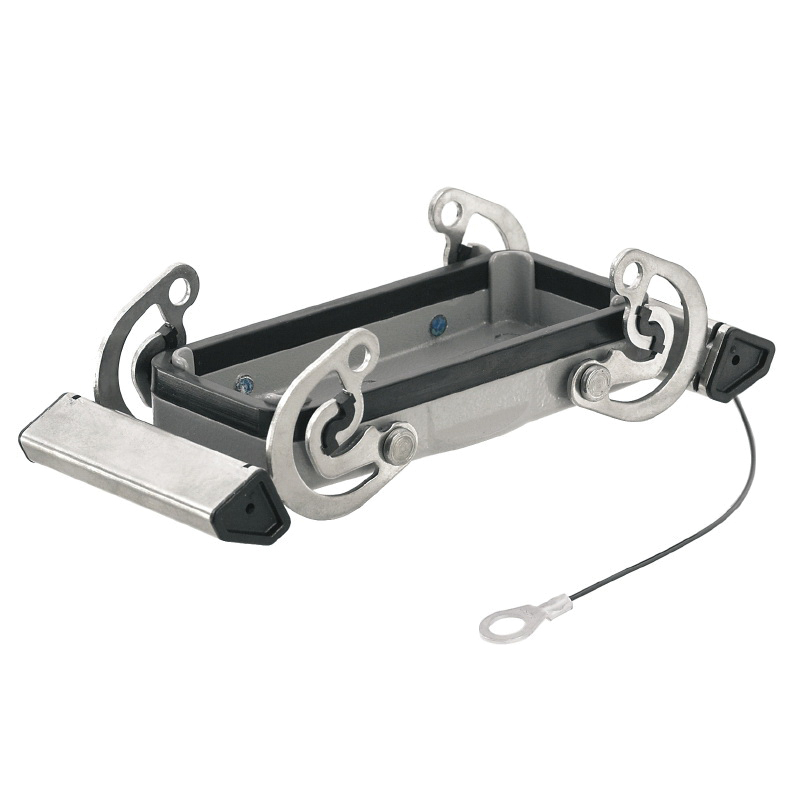

- Weidmuller Connector Cover, Standard, SZ 6 Size, For Use With: RockStar Heavy Duty Plug-In Connector, ModuPlug Module System and Hood, Specifications: IP65 Degree of Protection, 1.2 N-m Tightening Torque, NBR Seal, -40 to 125 deg C, Die Cast Aluminum, Gray, Powder Coated, 18 mm H x 55 mm W x 93.3 mm D Dimensions
1665270000 Application
For upper part of connector housing1665270000 Item Features
- Special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- Cleverly designed interlock system is manufactured from stainless steel
- Guarantees a long lifespan with high resistance to corrosion and impact
- Housing interlock system provides integrated safety
- Unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- Laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
- Side locking clamp on lower side
1665270000 Standards
REACH SVHC Lead 7439-92-1|DIBP 84-69-5|UL File No. E92202|cULus RecognizedSKU #2446686Part Number #1665270000UNSPSC32151901UPC04008190421977
Image provided may only be a representation of final product and may include optional equipment
