1989840000
Weidmuller 1989840000
Part Number # 1989840000
SKU # 2446706
$189.55 / 50Each
Typical price:$210.55 / Each
Weidmuller 1989840000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1989840000 |
| SKU #: | 2446706 |
| Amperage Rating: | 20 A |
| Dimensions: | 84.5 mm H x 5.1 mm W x 37.65 mm D |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | 1-Tier Modular |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Push-In |
| Country of origin: | RO |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118374445 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$189.55 / 50Each
Typical price:$210.55 / Each
Quantity:

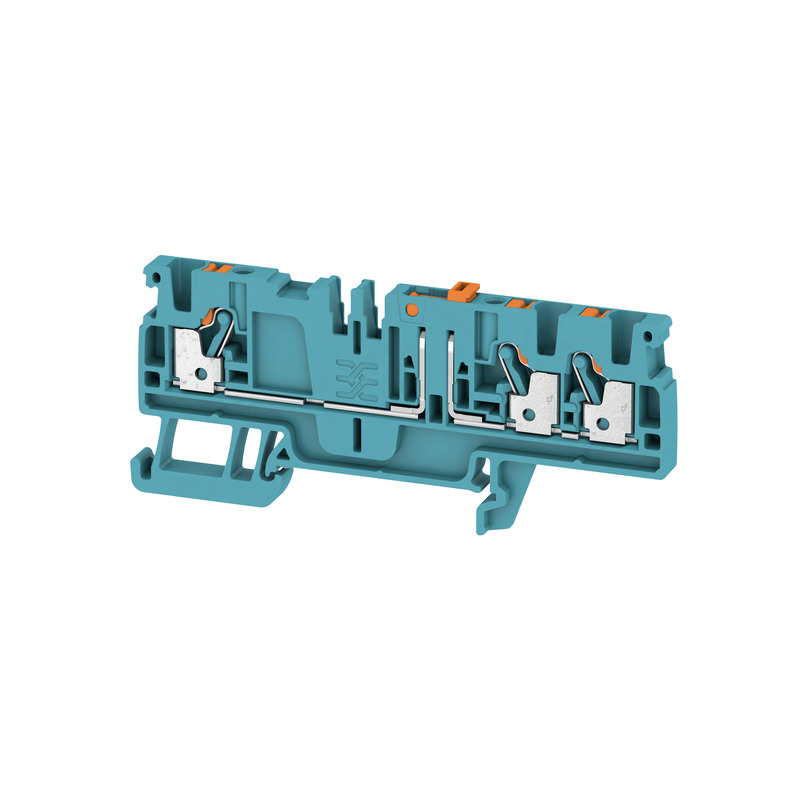

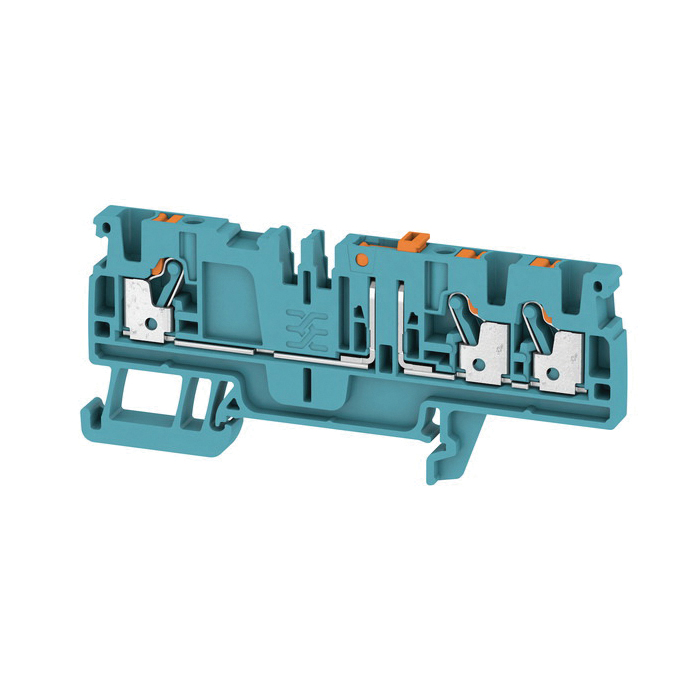

- Klippon Test Disconnect Terminal Block, 1-Tier Modular, Series: A Series, 500 V, 20 A, 28 to 12 AWG Wire, 10 mm Wire Strip Length, DIN Rail Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Blue, 84.5 mm H x 5.1 mm W x 37.65 mm D Dimensions
1989840000 Item Features
- The innovative push-in technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
1989840000 Standards
cULus File No. E60693 Recognized|RoHS Compliant|UL 94 V-0 Flammability Rating|CSA 200039-70089609|ATEX TUEV16ATEX7939U|IECEX IECEXTUR16.0045U|CE Certified|DNV-GL Approved|EAC Certified|IEC 60947-7-1SKU #2446706Part Number #1989840000UNSPSC39121410UPC04050118374445
Image provided may only be a representation of final product and may include optional equipment
